Tridonic GmbH & Co KG

Tridonic LED-Driver LC 10W 150-400mA flexC SR EXC

Product number: 28000698
Tridonic GmbH & Co KG

Tridonic LED-Driver LC 10W 150-400mA flexC SR EXC

Product number: 28000698

Immediately available

The emergency-current capable, dimmable electronic ballast for LED modules LC 10W 150-400mA flexC SR EXC from the EXCITE series from Tridonic is perfectly suited for installation in downlights, spotlights and decorative applications. It can be used for luminaire installation as well as independent ... Read more

€20.04

Product information "Tridonic LED-Driver LC 10W 150-400mA flexC SR EXC"

The emergency-current capable, dimmable electronic ballast for LED modules LC 10W 150-400mA flexC SR EXC from the EXCITE series from Tridonic is perfectly suited for installation in downlights, spotlights and decorative applications. It can be used for luminaire installation as well as independent mounting

With a ready2mains programmer or I-select 2 Plugs, the output current can be adjusted in 1 mA steps between 150 and 400 mA. The LED driver has an energy efficiency of up to 81%. Its rated output is 10 watts.

With its ready2mains interface, the constant current LED driver can be dimmed in a dimming range of 15 to 100% depending on the load. The LED driver can also be configured via the ready2mains interface. In addition, the driver features 0°/45 ° push terminals.

The housing is made of white polycarbonate and is equipped with IP20 protection. Additionally, the LED driver is protected against overtemperature, short-circuit, overload, no-load and at input voltage range.

There are no tools required for installation. The LED driver is suitable for cable cross-sections up to 2.5 mm². The service life is 100,000 hours. Tridonic offers a five-year warranty on the LED ECG.

Technical Data

Logistic Data

EAN (pcs): 9006210525600

EAN (packunit): 9006210525556

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Output voltage: 15.0000-40.0000V

Output current: 0.1500-0.7500A

Conformity: El/EAC/CCC/CE/ENEC/RoHS

Service life: 100000h

Operating mode: Constant current

Technical lighting data

Dimming range: 15-100%

Wattage: LED#1#0#7#0.175#0.175#15#40#1

Dimmable: yes

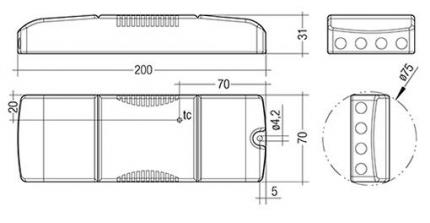

Dimensions

Width [mm]: 70mm

Height [mm]: 31mm

Length [mm]: 200mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -25...+60°C

Item number: 28000698
