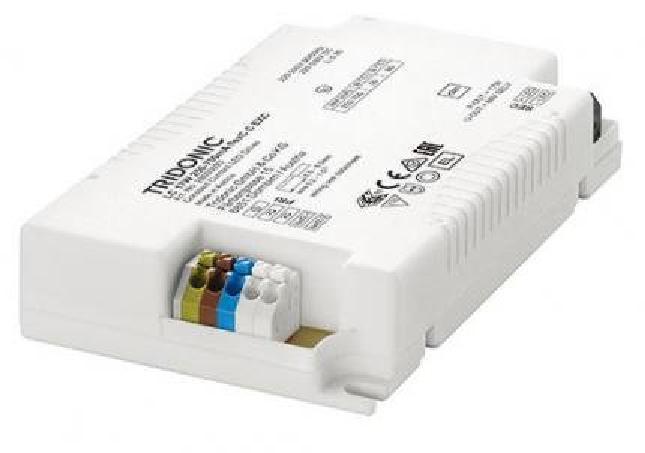

Tridonic LED-Driver LC 10W 150-400mA flexC C EXC

Product number: 28000692
Tridonic GmbH & Co KG

Tridonic LED-Driver LC 10W 150-400mA flexC C EXC

Product number: 28000692

Immediately available

10W constant current LED ECG for installationThe constant current LED driver LC 10W 150-400mA flexC C EXC from the Tridonic EXCITE range is suitable for luminaire installation. It has a nominal power of 10 watts. Thanks to the high efficiency of up to 81% you save energy! Ideal applications include ... Read more

€16.55

Product information "Tridonic LED-Driver LC 10W 150-400mA flexC C EXC"

10W constant current LED ECG for installation

The constant current LED driver LC 10W 150-400mA flexC C EXC from the Tridonic EXCITE range is suitable for luminaire installation. It has a nominal power of 10 watts. Thanks to the high efficiency of up to 81% you save energy! Ideal applications include downlights, spotlights and decorative applications.

The IP20-protected housing is made of polycarbonate. 45 ° plug-in terminals are integrated.

Adjustable output current

The output current can be adjusted by means of ready2mains programmer or I-SELECT 2 plugs in 1 mA steps between 150 and 400 mA. With the aid of ready2mains, configuration via the mains is also possible. The application-oriented operating window ensures maximum compatibility.

The Tridonic LED ECG is protected against overtemperature, short circuit, overload, open circuit and at the input voltage range. It is also suitable for emergency escape lighting systems acc. to EN 50172. The nominal life is 100,000 hours. Tridonic offers a 5-year warranty.


Technical Data

Logistic Data

EAN (pcs): 9006210525181

EAN (packunit): 9006210525136

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Output voltage: 15.0000-40.0000V

Output current: 0.1500-0.4000A

Conformity: CE/EL/EAC/ENEC/IC/CCC/RoHS

Service life: 100000h

Operating mode: Constant current

Technical lighting data

Wattage: LED#1#0#6#0.15#0.15#15#40#1

Dimmable: no

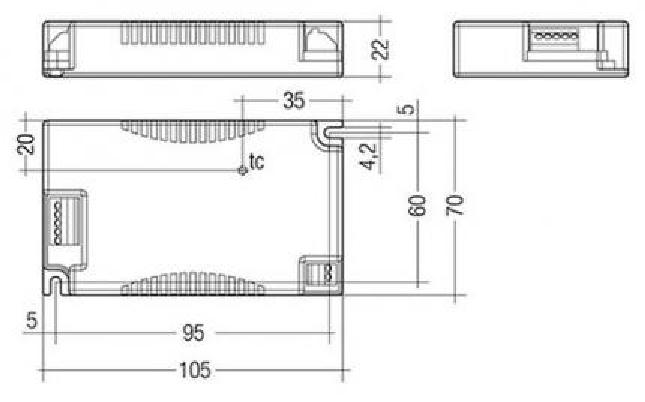

Dimensions

Width [mm]: 70mm

Height [mm]: 22mm

Length [mm]: 105mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -25...+60°C

Item number: 28000692
