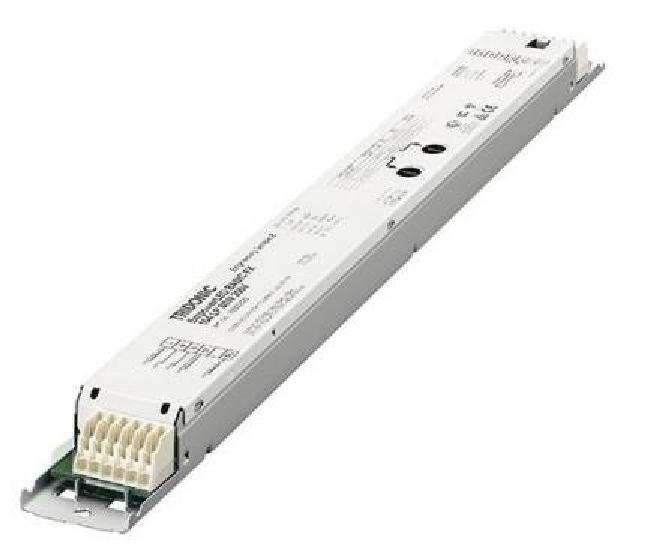

Tridonic LED-Driver EM powerLED BASIC FX 104 LP 80W 200V

Product number: 89800393
Tridonic GmbH & Co KG

Tridonic LED-Driver EM powerLED BASIC FX 104 LP 80W 200V

Product number: 89800393

Immediately available

The EM powerLED BASIC FX 104 LP 80W 200V constant current LED driver for self-contained emergency lighting from the EM powerLED range from TRIDONIC is suitable for luminaire Installation.The rated power is up to 80 watts. The LED ECG can be used for LED modules with a forward voltage of 50 – 2 ... Read more

€74.59


Content: 1 Stück

Product information "Tridonic LED-Driver EM powerLED BASIC FX 104 LP 80W 200V"

The EM powerLED BASIC FX 104 LP 80W 200V constant current LED driver for self-contained emergency lighting from the EM powerLED range from TRIDONIC is suitable for luminaire Installation.

The rated power is up to 80 watts. The LED ECG can be used for LED modules with a forward voltage of 50 – 230 V in mains operation and 50 – 200 V in emergency operation .

The output current can be set in mains operation via I-SELECT PLUG in 25 mA steps between 150 and 500 mA. In addition, a Simple CORRIDOR FUNCTION (CF) with 10% light level and a manual test function are integrated. The rated duration (1 or 3 h) can be selected with a plug (duration link). Standard or High Output is selectable with plug as well (output link).

If the LED load is out of range, the output automatically shuts off. The LED driver has a green LED display for the charging status, an electronic charging system, a polarity reversal protection for battery, a deep discharge protection and a short-circuit-proof battery connection.

The low-profile housing (21 x 30 mm cross-section) with strain relief has IP20 protection.

TRIDONIC offers a 5-year-warranty on the emergency light ECG. The integrated batteries with high-temperature cells have a 1-year-warranty.

Electrical data
number of channels: 1
output voltage: 50-230 V
rated voltage: 220-240 V
terminal type: Push-in CAGE CLAMP®
system power: 345 W
Casing
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: Installation
environment temperature from: -5 °C
environment temperature to: 55 °C
Photometric data
dimming range to: 100 %
color: white
interface: corridor function
Logistic data
item category: installation materials

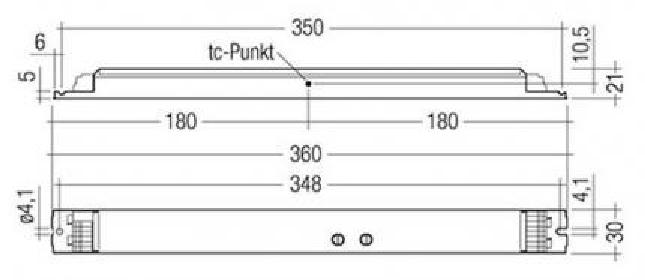

Dimensions & packaging
EAN 9006210514291
Length 360 mm
Width 30 mm
Height 21 mm
Weight 270 g
