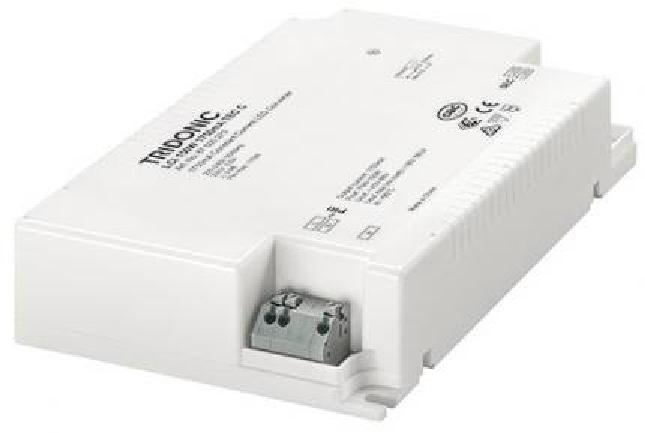

Tridonic LCI 150W 2100mA TEC C - 87500271
Product information "Tridonic LCI 150W 2100mA TEC C - 87500271"
For luminaires of protection class I and protection class II
Short-circuit protection
Overtemperature protection
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
Casing: polycarbonate, white
Fixed output built-in LED Driver
Temperature protection as per EN 61347-2-13 C5e
Burst protection voltage up to 2 kV
Surge protection voltage up to 2 kV (L to N)
Surge protection voltage up to 4 kV (L/N to earth)
Output current 1,750, 2,100 or 2,450 mA
Max. output power 150 W
Nominal life-time up to 50,000 h
Brush-coated for higher protection against humidity
Short-circuit protection
Overtemperature protection
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
Casing: polycarbonate, white
Fixed output built-in LED Driver
Temperature protection as per EN 61347-2-13 C5e
Burst protection voltage up to 2 kV
Surge protection voltage up to 2 kV (L to N)
Surge protection voltage up to 4 kV (L/N to earth)
Output current 1,750, 2,100 or 2,450 mA
Max. output power 150 W
Nominal life-time up to 50,000 h
Brush-coated for higher protection against humidity
Downloads & Documents
Electrical data
| output current: | 2100 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
Casing
| max housing temperature (tc-max): | 95 °C |
|---|---|
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| solar panel: | no |
|---|
Logistic data
| item category: | LED drivers |
|---|

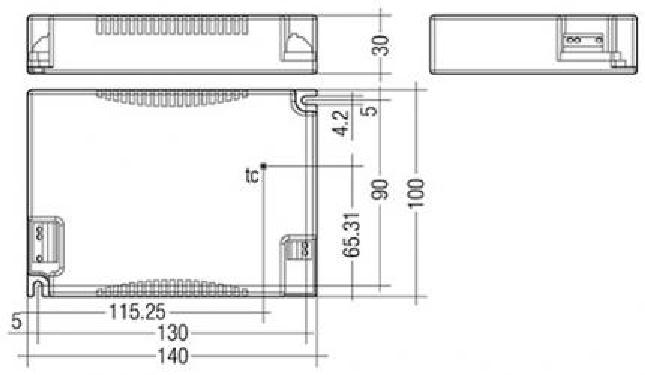

Dimensions & packaging
| EAN | 9006210500140 |
|---|---|
| Length | 140 mm |
| Width | 100 mm |
| Height | 30 mm |
| Weight | 328 g |
