Tridonic EMpowerLED 2W BASIC CLIP-FIX

Product number: 89899866
Tridonic GmbH & Co KG

Tridonic EMpowerLED 2W BASIC CLIP-FIX

Product number: 89899866

Immediately available

Green charge status display LEDDeep discharge protectionPolarity reversal protection for batteryLow-profile casing (21 x 30 mm cross-section)Electronic multi-level charge systemEmergency lighting LED Driver for manual testingMains and emergency operationConstant current modeWith either screw or cli ... Read more

€52.67


Content: 1 Stück

Product information "Tridonic EMpowerLED 2W BASIC CLIP-FIX"

Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
Low-profile casing (21 x 30 mm cross-section)
Electronic multi-level charge system
Emergency lighting LED Driver for manual testing
Mains and emergency operation
Constant current mode
With either screw or clip fastening (clip-fix)
1, 2 or 3 h rated duration
Selectable operating time (jumper)
Output power limitation
Automatic restart after LED replacement
SELV classified (outputs powerLED, battery, status LED, test switch)
Emergency lighting LEDs available
NiMH batteries
Cs cells
Short-circuit-proof battery connection
High-temperature cells 2 Ah
SELV for output voltage < 60 V DC
Very low energy consumption from the battery after activation of the deep discharge protection
Electrical data
rated voltage: 220-240 V
system power: 2 W
Casing
max housing temperature (tc-max): 70 °C
protection type: IP20
environment temperature from: -25 °C
environment temperature to: 50 °C
Logistic data
item category: LED drivers

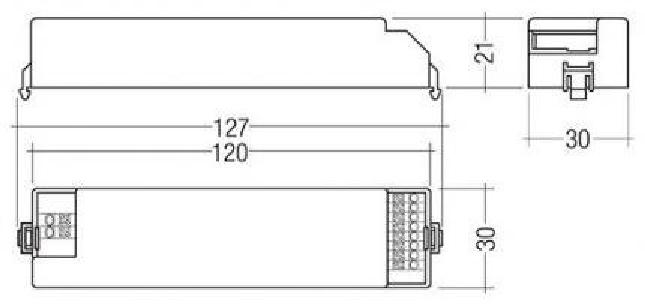

Dimensions & packaging
EAN 9006210249865
Length 127 mm
Width 30 mm
Height 21 mm
Weight 101 g
