Tridonic GmbH & Co KG

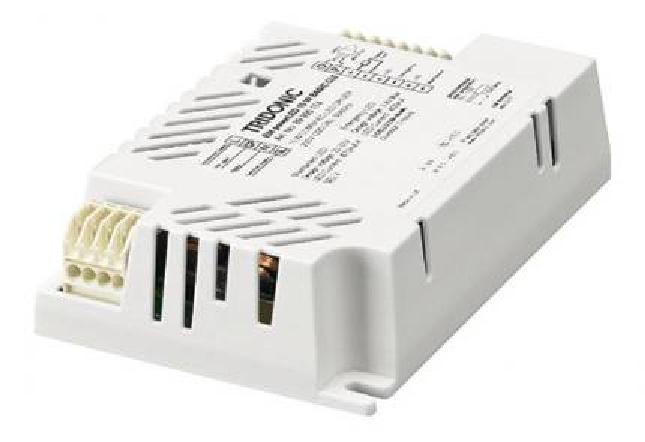

Tridonic EMpowerLED 15W Basic CLE NIMH

Product number: 89800174
Tridonic GmbH & Co KG

Tridonic EMpowerLED 15W Basic CLE NIMH

Product number: 89800174

Immediately available

For luminaire installationGreen charge status display LEDDeep discharge protectionPolarity reversal protection for batteryHigh-temperature cellsBlade terminals for simple connectionNiCd or NiMH batteries3 h rated durationConstant current modeEmergency lighting LEDs availableCs cellsSELVShort-circui ... Read more

€39.34


Content: 1 Stück

Product information "Tridonic EMpowerLED 15W Basic CLE NIMH"

For luminaire installation
Green charge status display LED
Deep discharge protection
Polarity reversal protection for battery
High-temperature cells
Blade terminals for simple connection
NiCd or NiMH batteries
3 h rated duration
Constant current mode
Emergency lighting LEDs available
Cs cells
SELV
Short-circuit-proof battery connection
Electronic charge system
LED Driver for mains operation with integrated Simple CORRIDOR FUNCTION (CF) and emergency lighting funtion for manual testing
Constant current LED Driver with 470 mA output current
Simple CORRIDOR FUNCTION (CF) with 10 % light level
Integrated 1 W emergency lighting unit for standby operation
LED module and sensor available
For the use with STARK CLE 1500 EM
Electrical data
through wiring: no
rated voltage: 220-240 V
system power: 15 W
Casing
ballproof: no
fire protection: no
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
environment temperature to: 55 °C
Photometric data
color: white
lamp type: LED
solar panel: no
Logistic data
item category: LED drivers

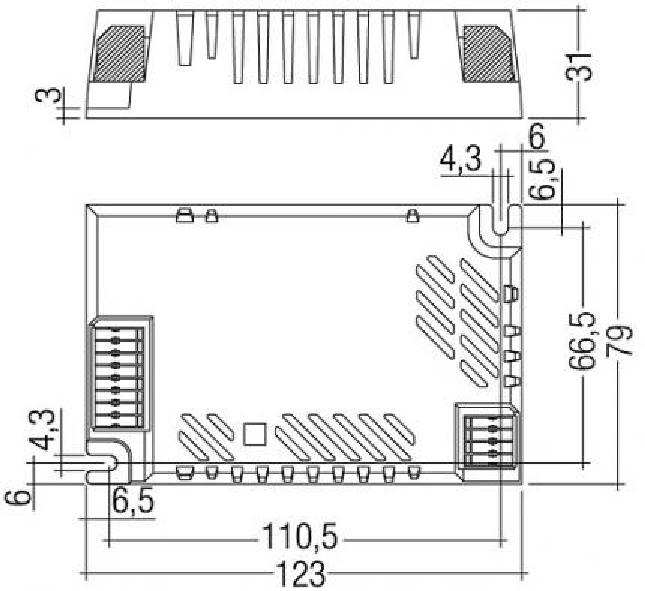

Dimensions & packaging
EAN 9006210458373
Length 123 mm
Width 79 mm
Height 31 mm
Weight 126 g
