Tridonic GmbH & Co KG

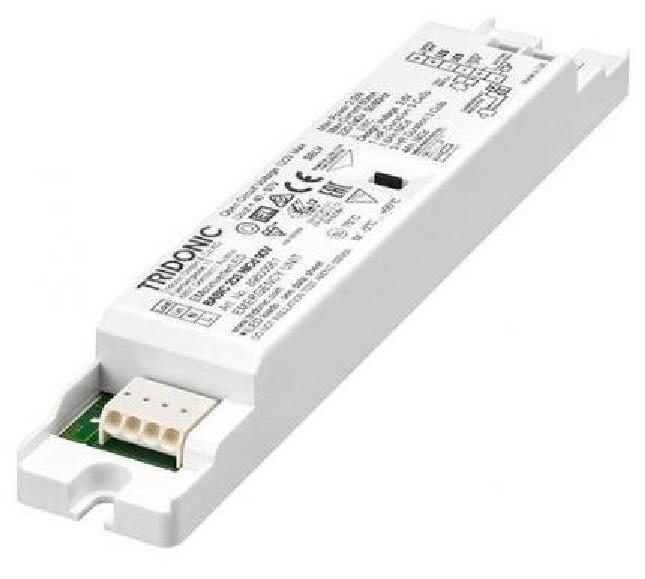

Tridonic emergency light LED-Driver EM converterLED BASIC 204 NiCd/NiMH 250V

Product number: 89800563
Tridonic GmbH & Co KG

Tridonic emergency light LED-Driver EM converterLED BASIC 204 NiCd/NiMH 250V

Product number: 89800563

Immediately available

Emergency light LED ECG (1 or 3 h of operation)The EM converterLED BASIC 204 NiCd / NiMH 250V emergency lighting LED driver from Tridonic's BASIC series is designed for installation in LED modules with a forward voltage of 50 - 250 V. The LED driver is used for self-contained emergency lighting and ... Read more

€40.96


Content: 1 Stück

Product information "Tridonic emergency light LED-Driver EM converterLED BASIC 204 NiCd/NiMH 250V"

Emergency light LED ECG (1 or 3 h of operation)

The EM converterLED BASIC 204 NiCd / NiMH 250V emergency lighting LED driver from Tridonic's BASIC series is designed for installation in LED modules with a forward voltage of 50 - 250 V. The LED driver is used for self-contained emergency lighting and has a rated duration of 1 or 3 hours (selectable with connector). The LED ECG has a "low profile" housing (21 x 30 mm cross section).

The Tridonic emergency lighting LED driver is compatible with all dimmable and non-dimmable constant current LED drivers. Its 3-pole technology initiates a 2-pole LED module changeover and delayed power switching for the LED driver. If the LED load is outside the allowable range, the output automatically shuts off.

Electronic charge system

The integrated accumulators are NiCd and NiMH high-temperature cells. The emergency light ECG has an electronic charge system, a deep discharge protection, a short-circuit proof battery connection and a polarity reversal protection for battery. In addition, you benefit from a constant output power and maximum light output for all LED modules.

Tridonic offers a 5-year warranty on the LED driver. The batteries have an expected life of 4 years and 1-year warranty.


Electrical data
number of channels: 1
operating mode: alternating voltage
rated voltage: 220-240 V
Casing
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -5 °C
environment temperature to: 55 °C
Photometric data
dimmable: yes
color: white
Logistic data
item category: LED drivers

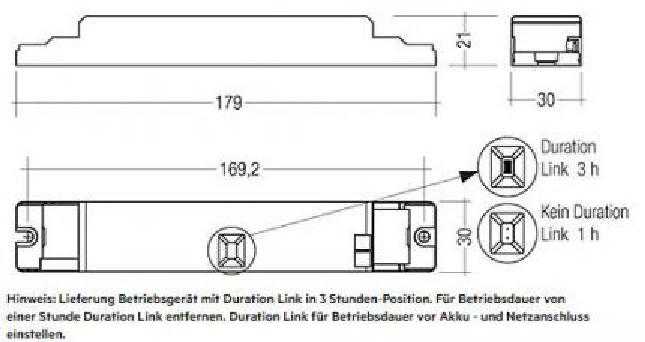

Dimensions & packaging
EAN 9006210649054
Length 179 mm
Width 30 mm
Height 21 mm
