Tridonic GmbH & Co KG
Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE
Product number:
28000664
Tridonic GmbH & Co KG
Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE
Product number:
28000664
Immediately available
Here we have summarized the most important features of the ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE: You can set the output current between 250 - 700 mA with the ready2mains programmer, I-select 2 Plugs or DALI with the ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE. The ECG-LED Tridonic
...
Read more
€47.39
Content:
1 Stück
Prices incl. VAT plus shipping costs net €39.82
Product information "Tridonic ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE"
Here we have summarized the most important features of the ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE:
You can set the output current between 250 - 700 mA with the ready2mains programmer, I-select 2 Plugs or DALI with the ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE.
The ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE has an efficiency up to 86% at a max. Output power of 17W.Low stand-by losses result in high energy savings and high efficiency.
The dimming can be via DALI DT 6, DSI, switchDIM, corridorFUNCTION and the dimming range is 1-100%.
The driver is equipped with the IP protection IP20.
An integrated service editor logs certain events.
The ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE also has various protective functions such as: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain.
Tridonic guarantees a nominal life of 100,000 as well as a 5-year guarantee
You can set the output current between 250 - 700 mA with the ready2mains programmer, I-select 2 Plugs or DALI with the ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE.
The ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE has an efficiency up to 86% at a max. Output power of 17W.Low stand-by losses result in high energy savings and high efficiency.
The dimming can be via DALI DT 6, DSI, switchDIM, corridorFUNCTION and the dimming range is 1-100%.
The driver is equipped with the IP protection IP20.
An integrated service editor logs certain events.
The ECG-LED Tridonic LCA 17W 250-700mA one4all C PRE also has various protective functions such as: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain.
Tridonic guarantees a nominal life of 100,000 as well as a 5-year guarantee
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 15-50 V |
| output current: | 0.25-0.7 mA |
| rated voltage: | 220-240 V |
| terminal type: | Push-in CAGE CLAMP® |
| lifetime: | 100000 h |
| system power: | 4-18 W |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| dimmable: | no |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| setting type: | resistors/programming |
| color: | white |
| interface: | corridor function |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

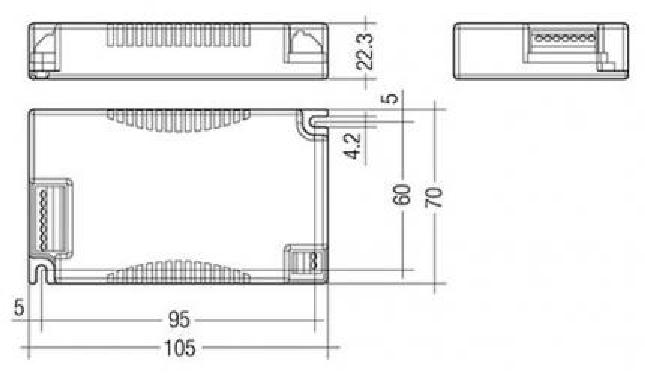

Dimensions & packaging
| EAN | 9006210523224 |
|---|---|
| Length | 105 mm |
| Width | 70 mm |
| Height | 21 mm |
| Weight | 134 g |
