Tridonic ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE - 28000663
Tridonic GmbH & Co KG
Tridonic ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE - 28000663
Product number:
28000663
Immediately available
€46.33
Content:
1 Stück
Prices incl. VAT plus shipping costs net €38.93
Product information "Tridonic ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE - 28000663"
Here we have summarized the most important features of the EVG-LED Tridonic LCA 10W 150-400mA one4all C PRE: You can set the output current between 150 - 400 mA with the ready2mains programmer, I-select 2 Plugs or DALI with the ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE The ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE has an efficiency of up to 82% at a max. Output power of 10W.Low stand-by losses result in high energy savings and high efficiency. The dimming can be via DALI DT 6, DSI, switchDIM, corridorFUNCTION and the dimming range is 1-100%. The driver is equipped with the IP protection IP20. An integrated service editor logs certain events. The ECG-LED Tridonic LCA 10W 150-400mA one4all C PRE also has various protective functions such as: overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain. Tridonic guarantees a nominal life of 100,000 as well as a 5-year guarantee
Downloads & Documents
Electrical data
| output current: | 150, 200, 250, 300, 350, 400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 85 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 65 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | DSI |
Logistic data
| item category: | LED drivers |
|---|

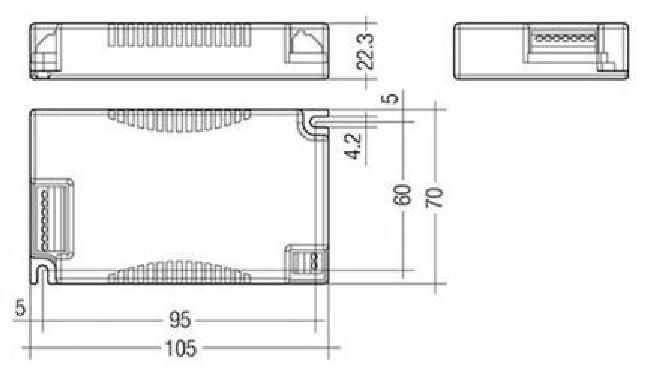

Dimensions & packaging
| EAN | 9006210523156 |
|---|---|
| Length | 105 mm |
| Width | 70 mm |
| Height | 21 mm |
| Weight | 128 g |
