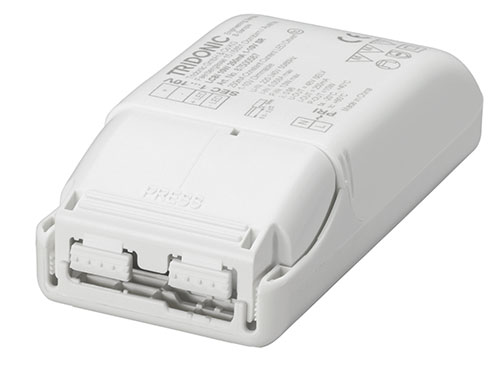

Tridonic ECG-LED LCBI 10W 180mA phase-cut/1–10 V SR - 87500273
Tridonic GmbH & Co KG
Tridonic ECG-LED LCBI 10W 180mA phase-cut/1–10 V SR - 87500273
Product number:
87500273
Immediately available
€15.93
Content:
1 Stück
Prices incl. VAT plus shipping costs net €13.39
Product information "Tridonic ECG-LED LCBI 10W 180mA phase-cut/1–10 V SR - 87500273"
Screw terminal
For luminaires of protection class I and protection class II
Short-circuit protection
SELV
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Casing: polycarbonate, white
Output dimmed analogue (current amplitude)
Output power 10 W
Temperature protection as per EN 61347-2-13 C5e
Independent dimmable LED Driver
Dimmable via leading edge and trailing edge phase dimmers
Dimmable via 1 ... 10 V
Dimming range typ. 10 to 100 % (depending on dimmer)
Nominal life-time up to 50,000 h
No output current overshoot at mains on/off
Output current 180, 350 or 500 mA
For luminaires of protection class I and protection class II
Short-circuit protection
SELV
Constant current LED Driver
Type of protection IP20
Overload protection
No-load protection
5-year guarantee
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Casing: polycarbonate, white
Output dimmed analogue (current amplitude)
Output power 10 W
Temperature protection as per EN 61347-2-13 C5e
Independent dimmable LED Driver
Dimmable via leading edge and trailing edge phase dimmers
Dimmable via 1 ... 10 V
Dimming range typ. 10 to 100 % (depending on dimmer)
Nominal life-time up to 50,000 h
No output current overshoot at mains on/off
Output current 180, 350 or 500 mA
Downloads & Documents
Electrical data
| output current: | 180 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| max housing temperature (tc-max): | 60 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| solar panel: | no |
|---|
Logistic data
| item category: | LED drivers |
|---|
Dimensions & packaging
| EAN | 9006210510262 |
|---|---|
| Length | 102 mm |
| Width | 51 mm |
| Height | 30 mm |
| Weight | 88 g |
