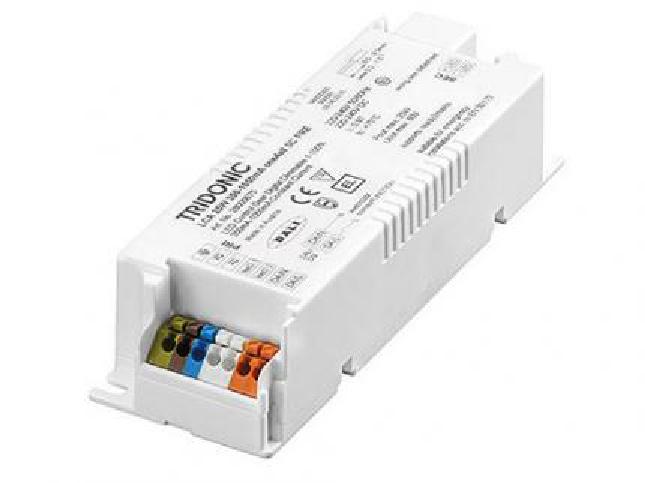

Tridonic ECG-LED LCA 25W 350-1050mA one4all SC - 28000675
Tridonic GmbH & Co KG
Tridonic ECG-LED LCA 25W 350-1050mA one4all SC - 28000675
Product number:
28000675
Immediately available
€50.36
Content:
1 Stück
Prices incl. VAT plus shipping costs net €42.32
Product information "Tridonic ECG-LED LCA 25W 350-1050mA one4all SC - 28000675"
- Dimming range 1 to 100 %
- Type of protection IP20
- 5-year guarantee
- Casing: polycarbonate, white
- Dimmable built-in LED Driver
- Suitable for emergency escapge lighting systems acc. to EN 50172
- Power-up fading at AC
- Nominal life-time up to 100,000 h
- Output current adjustable between 350 – 1,050 mA
- Power input on standby < 0.15 W
- one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
- ready2mains (configuration and dimming via mains)
- Terminal blocks: 0° push terminals
- Adjustable output current (DALI, ready2mains, I-select 2)
- Constant light output function (CLO)
- Configurable via ready2mains
- Service monitor to log certain events
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low standby losses and high efficiency
- Flexible configuration via DALI, ready2mains and I-select 2
- Reliability proven by life-time up to 100,000 h and 5-year guarantee
- For linear/area lighting in office applications
- Max. output power 25 W
- Up to 90 % efficiency
Downloads & Documents
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 75 °C |
|---|---|
| protection type: | IP20 |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| setting type: | resistors/programming |
|---|---|
| color: | white |
| interface: | corridor function |
Logistic data
| item category: | LED drivers |
|---|

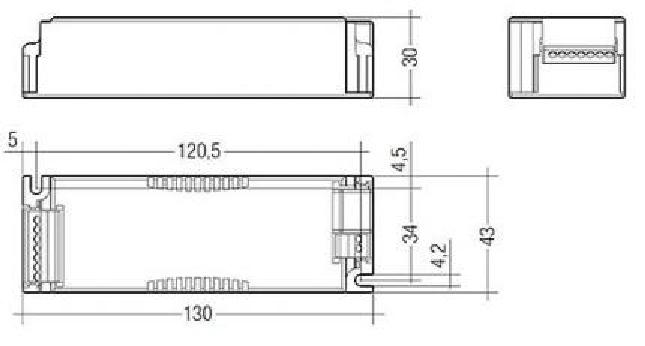

Dimensions & packaging
| EAN | 9006210523996 |
|---|---|
| Length | 130 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 127 g |
