Tridonic ADV Plug Type E YL - 28002096
Product information "Tridonic ADV Plug Type E YL - 28002096"
The prefabricated resistor ADVconnector type E YL for outpuct current selection with 100.00 kilo ohms iscompatible with all Tridonic LED drivers from the series LC flexC ADV. It isbase-isolated, has a resistor power of 0.25 watts and a current tolerance of +-2% in addition to the output current tolerance. It is not possible to add orremove components during operation (Hot Plugging).
The prefabricated resistance ADV connector type E YL ist not compatiblewith I-select (generation 1) and I-select 2 (generation 2) compatible devices.
Downloads & Documents
Electrical data
| terminal type: | Push-in CAGE CLAMP® |
|---|
Casing
| ballproof: | no |
|---|
Photometric data
| sensor: | no |
|---|---|
| color: | yellow |
| interface: | ADV Plug |
Logistic data
| item category: | LED drivers |
|---|

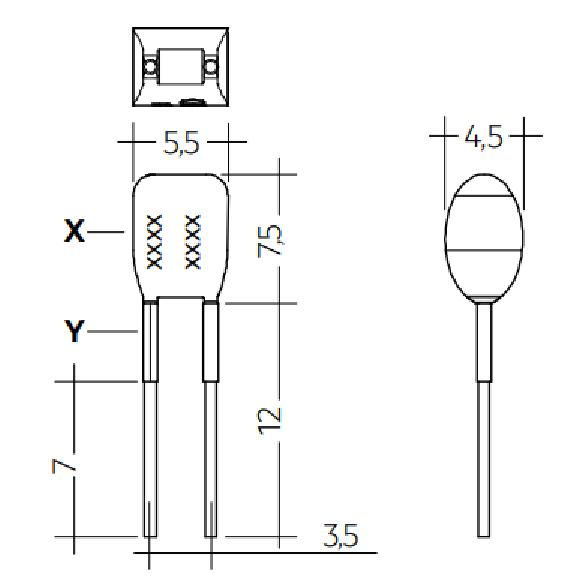

Dimensions & packaging
| EAN | 9006210644363 |
|---|---|
| Length | 20 mm |
| Width | 6 mm |
| Height | 5 mm |
