Theben AG

Theben Mounted PIR Motion Detector theRonda S360-110 DALI UP WH white

Product number: 2080580
Theben AG

Theben Mounted PIR Motion Detector theRonda S360-110 DALI UP WH white

Product number: 2080580

Immediately available

DALI PIR presence detector with button inputThe DALI passive infrared motion detector theRonda S360-110 DALI UP by Theben is suitable for ceiling mounting. It has a round detection range of 360 °, up to Ø 8 m. A light channel in DALI broadcast mode is addressable.In addition, there is a push button ... Read more

€124.89


Content: 1 Stück

Product information "Theben Mounted PIR Motion Detector theRonda S360-110 DALI UP WH white"

DALI PIR presence detector with button input

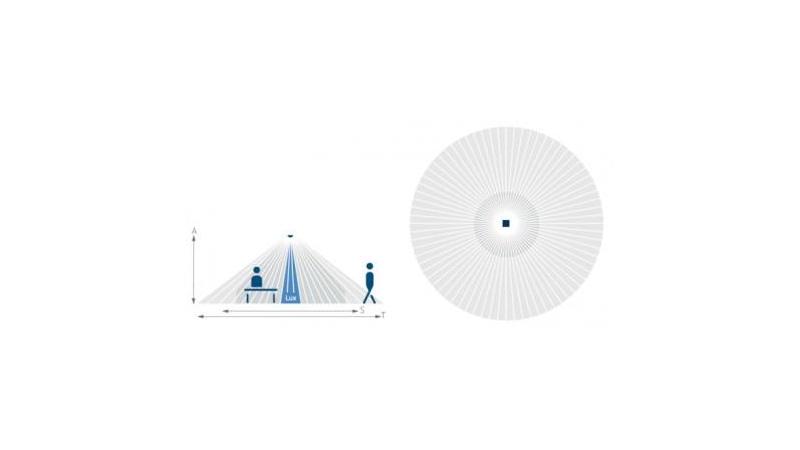

The DALI passive infrared motion detector theRonda S360-110 DALI UP by Theben is suitable for ceiling mounting. It has a round detection range of 360 °, up to Ø 8 m. A light channel in DALI broadcast mode is addressable.

In addition, there is a push button input. For maximum freedom of design, the use of conventional push-buttons is possible. The behavior after button operation is selectable (school / office).

The brightness switching value can be set using a remote control or a push-button (10 - 3000 lx). In addition, the room correction factor (automatic adjustment of brightness measurement) and the self-learning delay time (10 s - 60 min) can be adjusted. The control speed is also adjustable.

Master/slave function for parallel connection

The Theben motion detector convinces with an extremely easy setting of energy saving characteristics thanks to the new „eco plus“ function. In addition, you benefit from optimized handling by the installer during assembly, wiring and commissioning. Using a master / slave or master / master circuit, multiple presence detectors can be connected in parallel.

The PIR presence detector can be used either in switching mode with dimmable lighting or with constant light control and standby functionality. In addition, it can be put into operation as a full or semi-automatic machine. There is a test mode for checking light and presence.


Electrical data
rated voltage: 110-230 V
Casing
protection type: IP54
mounting: flush mounting
environment temperature from: -15 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
detection angle: 360 °
color: white
sensor type: passive infrared
Logistic data
item category: sensors
Dimensions & packaging
EAN 7612748006379
Height 83 mm
Weight 210 g
