Theben LED-Spotlight 20W 4000K 1800lm theLeda P24L white - 1020743
Product information "Theben LED-Spotlight 20W 4000K 1800lm theLeda P24L white - 1020743"

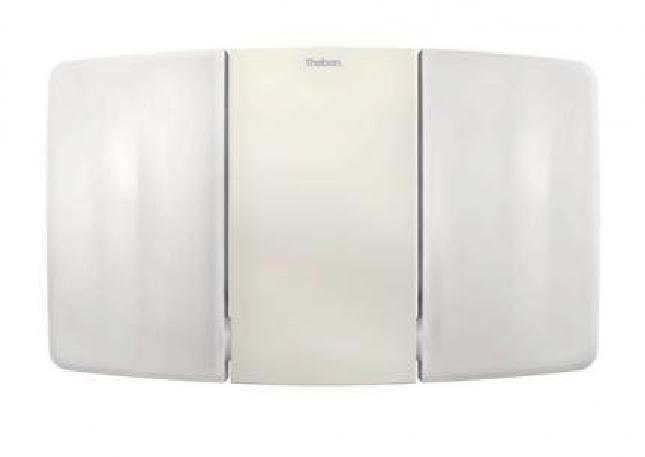

LED spotlight with master-slave function
The IP55-protected white LED spotlight theLeda P24L by Theben is ideal for outdoor use. It emits diffused, glare-free light with aura effect and a color temperature of 4000 K. The spotlight consists of 2 LED panels with 20 W ( 2x 900 lm), which corresponds to approx. 2 x 140 W of a halogen lamp. Its efficiency is 82 lm/W. By master-slave function, all devices can be networked with each other.
High-quality die-cast aluminum cools the LED
The LED spotlight can be swiveled: 30 ° backwards, 60 ° downwards. Spacer and corner bracket are included in delivery. The back of the spotlight is made of high-quality die-cast aluminum, which ensures optimum cooling of the high-performance LED. The Theban P24L LED spotlight is mounted on the wall at a height of 1.8 - 2.5 m.
Downloads & Documents
Instruction-manual-Theben-LED-Spotlight-20W-4000K-1800lm-theLeda-P24L-white-1020743_1592168907_3
Datasheet-Theben-LED-Spotlight-20W-4000K-1800lm-theLeda-P24L-white-1020743_1592168907_6
Bedienungsanleitung-Theben-LED-Strahler-20W-4000K-1800lm-theLeda-P24L-weiss-1020743_1592168907_7
Electrical data
| rated voltage: | 230 V |
|---|
Casing
| protection type: | IP55 |
|---|---|
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| color code: | 840 |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 82 lm/W |
| lum flux: | 900 lm |
Logistic data
| item category: | outdoor luminaires |
|---|

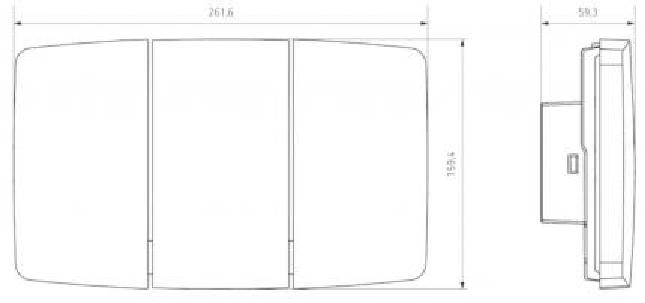

Dimensions & packaging
| EAN | 4003468100653 |
|---|---|
| Length | 59 mm |
| Width | 262 mm |
| Height | 159 mm |
| Weight | 1020 g |
