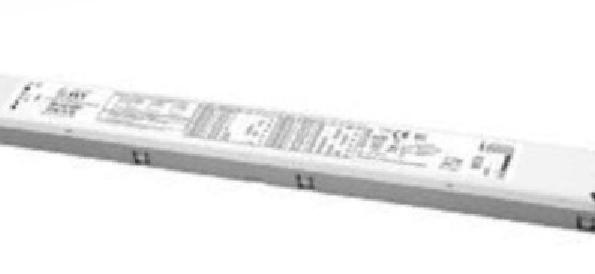

TCI MAXI JOLLY SVM DALI SLIM 65 - 127564
Product information "TCI MAXI JOLLY SVM DALI SLIM 65 - 127564"
For connections use wire rated for at least 90° C (195° F). • Multipower driver supplied with dip-switch for the selection of the output current. • Driver for built-in use for class I lighting equipment; luminaire enclosure is necessary for protection against accidental contact with live parts. • Active Power Factor Corrector. • Analogical input for thermal sensor connection. • Current regulation ±5 % including temperature variations. • Input and output terminal blocks on the opposite sides (input: wire cross-section up to 1,5 mm2 / AWG15; output: wire cross-section up to 0,5 mm2 / AWG20). • Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads. • Thermal protection = C.5.a.
Downloads & Documents
Electrical data
| rated voltage: | 110-127 V |
|---|---|
| conformity: | CE, ENEC |
| system power: | 17,5 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
| sensor type: | no |
| solar panel: | no |
Dimensions & packaging
| Length | 30 mm |
|---|---|
| Width | 360 mm |
| Height | 21 mm |
