TCI LED-Treiber DC 70W 24V DALI SLIM - 127960
Product information "TCI LED-Treiber DC 70W 24V DALI SLIM - 127960"
70W constant voltage LED ECG for built-in use

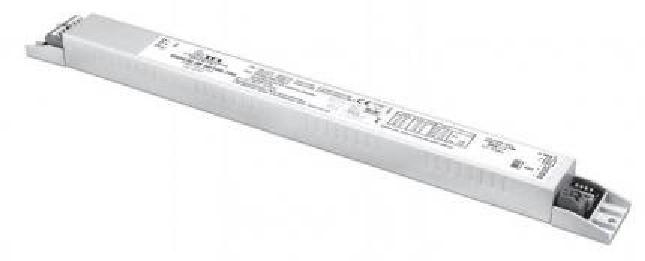

The constant voltage LED driver DC 70W 24V DALI SLIM from TCI is suitable for installation in luminaires of protection class I. Its own protection class I prevents electric shocks in direct or indirect contact. It has a nominal output of up to 70 watts.
The input and output terminal blocks are on opposite sides. In addition, the LED ECG has a single terminal on the primary and secondary circuit (wire cross-section up 1.5/AWG15). It can be secured with a slot for screws.
Dimmable via DALI or 0 / 1-10V
The LED driver can be dimmed either by DALI or via its 0 / 1-10V interface in a range of 0-100%.
The TCI DC 70W 24V DALI SLIM LED driver is protected against overheating, short circuits, mains voltage spikes and overload. Additionally, it has a protection fuse at the input.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 0-10 V |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

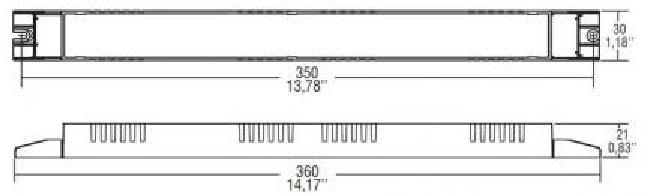

Dimensions & packaging
| EAN | 8010703323483 |
|---|---|
| Length | 30 mm |
| Width | 360 mm |
| Height | 21 mm |
