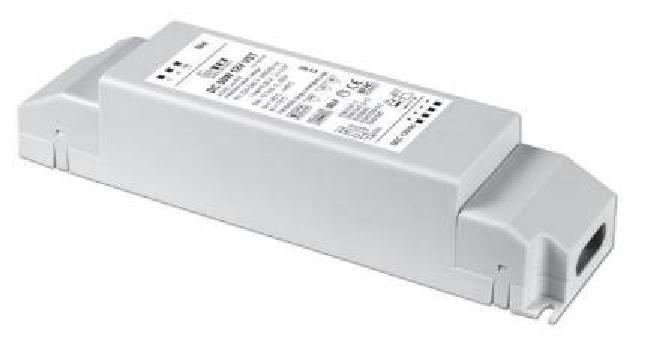

TCI LED-Treiber DC 150W 48V VST - 122764
Product information "TCI LED-Treiber DC 150W 48V VST - 122764"
48V constant voltage LED ECG with 150W
The 48V constant voltage LED driver DC 150W 48V VST is suitable for luminaire installation or independent mounting. Its protection class I prevents electric shocks in direct or indirect contact. It also has IP20 protection and is suitable for indoor use. The rated power is up to 150 watts.
The input and output terminals are on opposite sides. There is a single terminal block on the primary circuit (wire cross section 0.5 - 2.5 mm2 / AWG20 - AWG13) and double terminal blocks on the secondary circuit (0.5 - 2.5 mm2 / AWG20 - AWG13). In addition, there are screw terminals for cables with a diameter of min. 6 - max. 9 mm on the primary and secondary circuit.
Overheating/short circuit/overload protection
The TCI LED driver DC 150W 48V VST is protected against overheating and short circuits, mains voltage spikes and overload.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 48 |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| system power: | 150 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | I |
| environment temperature from: | -40 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

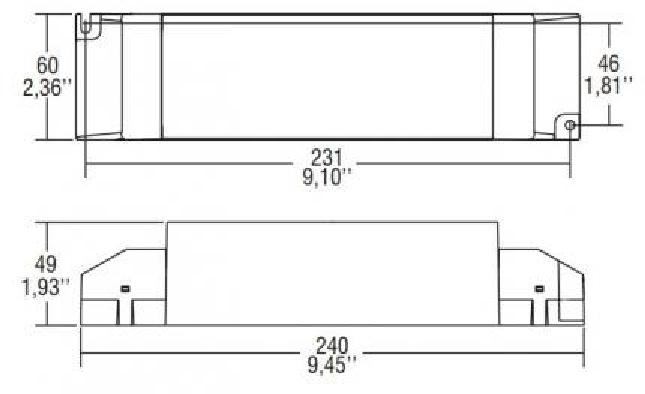

Dimensions & packaging
| EAN | 8010703300798 |
|---|---|
| Length | 60 mm |
| Width | 240 mm |
| Height | 50 mm |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
