TCI LED-EVG DC 120W 24V VSTR - 122730
Product information "TCI LED-EVG DC 120W 24V VSTR - 122730"

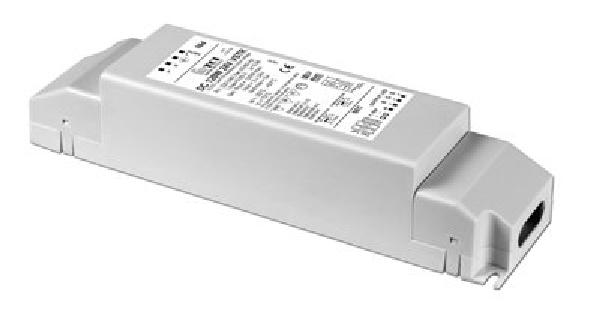

The dimmable ECG DC 120W 24V VSTR from TCI provides an efficient way to operate LED modules. There are three outputs for their connection. The driver's equipment with IP20 protection ensures a safe indoor use. It is also equipped with the protection class I and thus protected against electric shocks for direct and indirect contact. The rated power is 120 watts at an output current of 24 volts.
The constant voltage driver can be dimmed via PushDIM interface or via 1 ... 10 V interface. The input and output terminal blocks are on the opposite sides (wire cross-section up to 2.5 mm2 / AWG13).
The driver is protected against overheating and short circuits, against mains voltage spikes and againstoverload. Moreover, it has a protection fuse at the input. It is suitable for all types of mounting.
The service life is 50,000 hours.
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 120 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

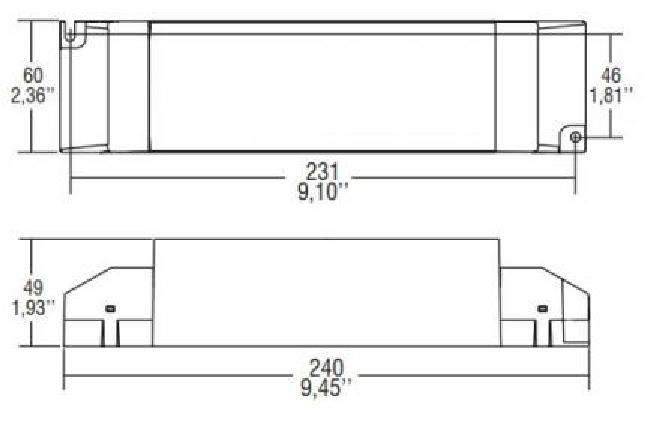

Dimensions & packaging
| EAN | 8010703306400 |
|---|---|
| Length | 60 mm |
| Width | 240 mm |
| Height | 50 mm |
| Weight | 400 g |
TCI
TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma 14
21047 Saronno
IT
tci@tci.it
www.tci.it/en/
