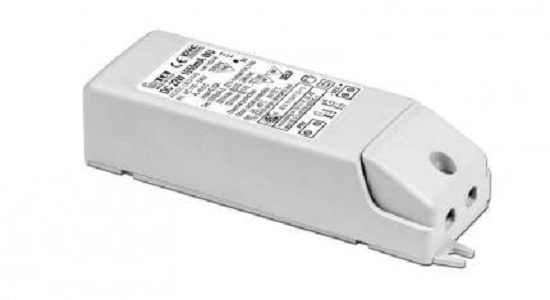

Product information "TCI LED-ECG DC 22W 1050mA WU"
The ECG DC 22W 1050mA WU for LED luminaires from TCI is equipped with IP20 protection and suitable for indoor use. Additionally, its class II protection prevents electric shocks for direct or indirect contact. The rated power is 22 W.

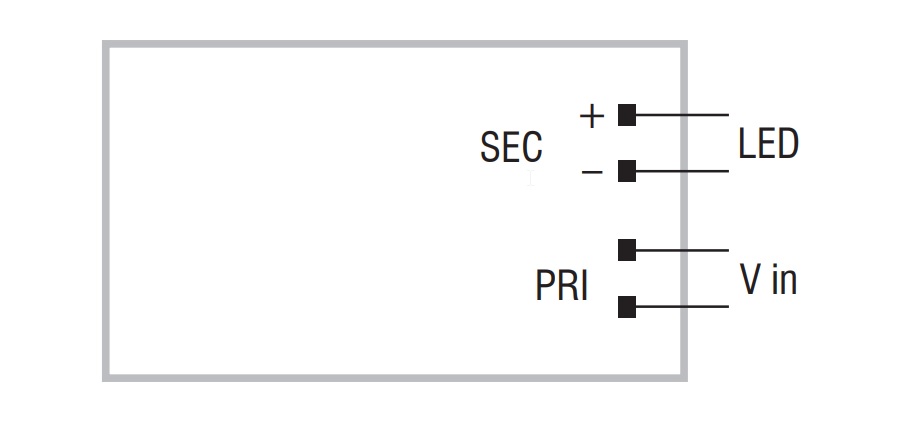

The constant current constant voltage LED driver is supplied with a terminal cover and a cable retainer. The input and output terminal blocks are on the same side (wire cross-section up to 2.5 mm2 / AWG13). Clamping screws for cables with a diameter of min. 3 mm – max. 8 mm are mounted on primary and secondary circuits. The driver can be attached with screws.
The DC 22W 1050mA WU is protected against overheating and short circuits, against mains voltage spikes and against overload. The control accuracy of the output current including temperature fluctuations is + -5%. It has a service life of 50,000 hours.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 2-21 V |
| output current: | 105 mA |
| operating voltage: | 110-240 V |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 22 W |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

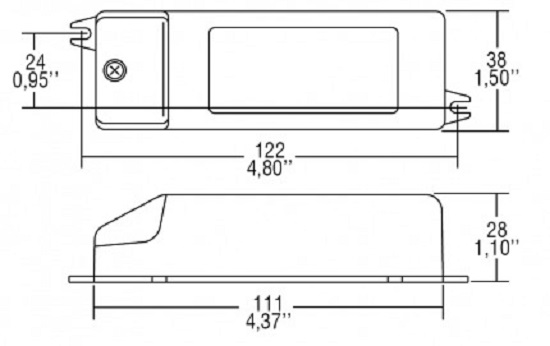

Dimensions & packaging
| EAN | 8010703300163 |
|---|---|
| Length | 38 mm |
| Width | 122 mm |
| Height | 28 mm |
