TCI LED-ECG BCC 116 IP54 - 137969IP16MM
Product information "TCI LED-ECG BCC 116 IP54 - 137969IP16MM"
IP54-protected FL ECG for T5/T8/TC lamps

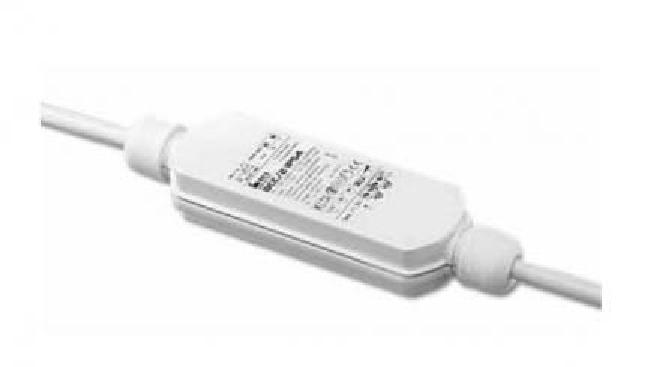

The BCC 116 IP54 by TCI is a compact, IP54-protected electronic ballast for T5/T8 and TC bulbs, suitable for installation in luminaires of protection class I and II or for independent mounting. The FL ECG is also suitable for connection to emergency equipment according to 60598-2-22.
The FL ECG has push-wire connections (conductor area 0,5 - 1,5 mm2). In addition, there is a cable retainer on primary and secondary circuit for the following cables: H05VV-F (2x0.75 mm2 2x1 mm2), H05VVH2-F (2x0.75 mm2 2x1 mm2), H05SS-F (4x0.75 mm2), FEP ( 1x0.75 mm², 1x1 mm²).
Warm start technology protects the lamp
The TCI BCC 116 performs a start with pre-heating to increase the life of the lamp. It is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP54 |
| mounting: | Installation |
| environment temperature from: | -15 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| solar panel: | no |
Logistic data
| item category: | electronic ballasts |
|---|

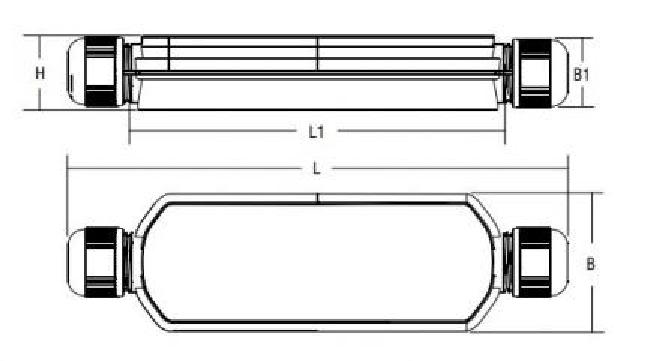

Dimensions & packaging
| EAN | 8010703100909 |
|---|---|
| Length | 133 mm |
| Width | 41 mm |
| Height | 20 mm |
