TCI SRL

TCI LED driver with busbar adapter GA CASAMBI white

Product number: 127634
TCI SRL

TCI LED driver with busbar adapter GA CASAMBI white

Product number: 127634

Shipping in 28 day(s)

31W LED ECG with busbar adapterThe white multipower constant current LED driver from TCI represents a new breakthrough in luminaire design: its adapter mounting for LED busbars ensures maximum flexibility. It has a nominal power of up to 31 watts. The adapter is suitable for the following busbars:• ... Read more

90,94 €

Product information "TCI LED driver with busbar adapter GA CASAMBI white"

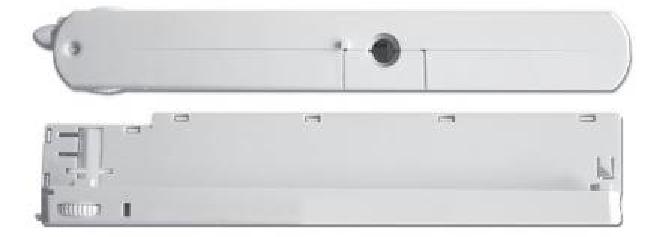

31W LED ECG with busbar adapter

The white multipower constant current LED driver from TCI represents a new breakthrough in luminaire design: its adapter mounting for LED busbars ensures maximum flexibility. It has a nominal power of up to 31 watts. The adapter is suitable for the following busbars:

  • NA Globaltrac pro
  • Concord
  • Eutrac 25101
  • Hoffmeister
  • IG STD 677
  • Ivela
  • Stucchi
  • Unipro T3
  • Zumtobel
  • Nuco

CASAMBI module for lighting control via app

In addition, the LED driver has an integrated CASAMBI radio module for individual lighting control. With the app you can easily control your lighting via smartphone, tablet or AppleWatch.

Download the CASAMBI app for iOS  and Android  here!

Here you will also find the link for control via AppleWatch via iOS.

The LED ECG has an active power correction filter. Its protection class II prevents electric shocks in direct or indirect contact. The current control is ± 5/6% including temperature fluctuations. There are output push-in terminals (dimensions: 0.2 - 0.5 mm2).

The TCI LED driver is protected against overheating and short circuits, against mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a.

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

Output voltage: 20.0000-44.0000V

Output current: 0.3250-0.7000A

Conformity: CE

Operating mode Name: Constant current

Technical lighting data

Wattage: LED#1#0#14#0.325#0.325#20#44#1

Dimmable: no

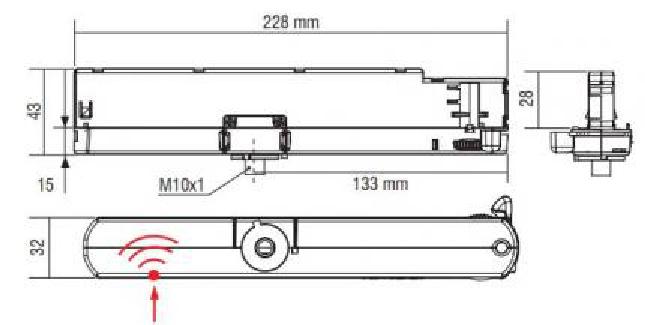

Dimensions

Width [mm]: 32mm

Height [mm]: 43mm

Length [mm]: 228mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 85°C

Ambient temperature (ta): -25...+35°C

Protection class: II

Item number: 127634
