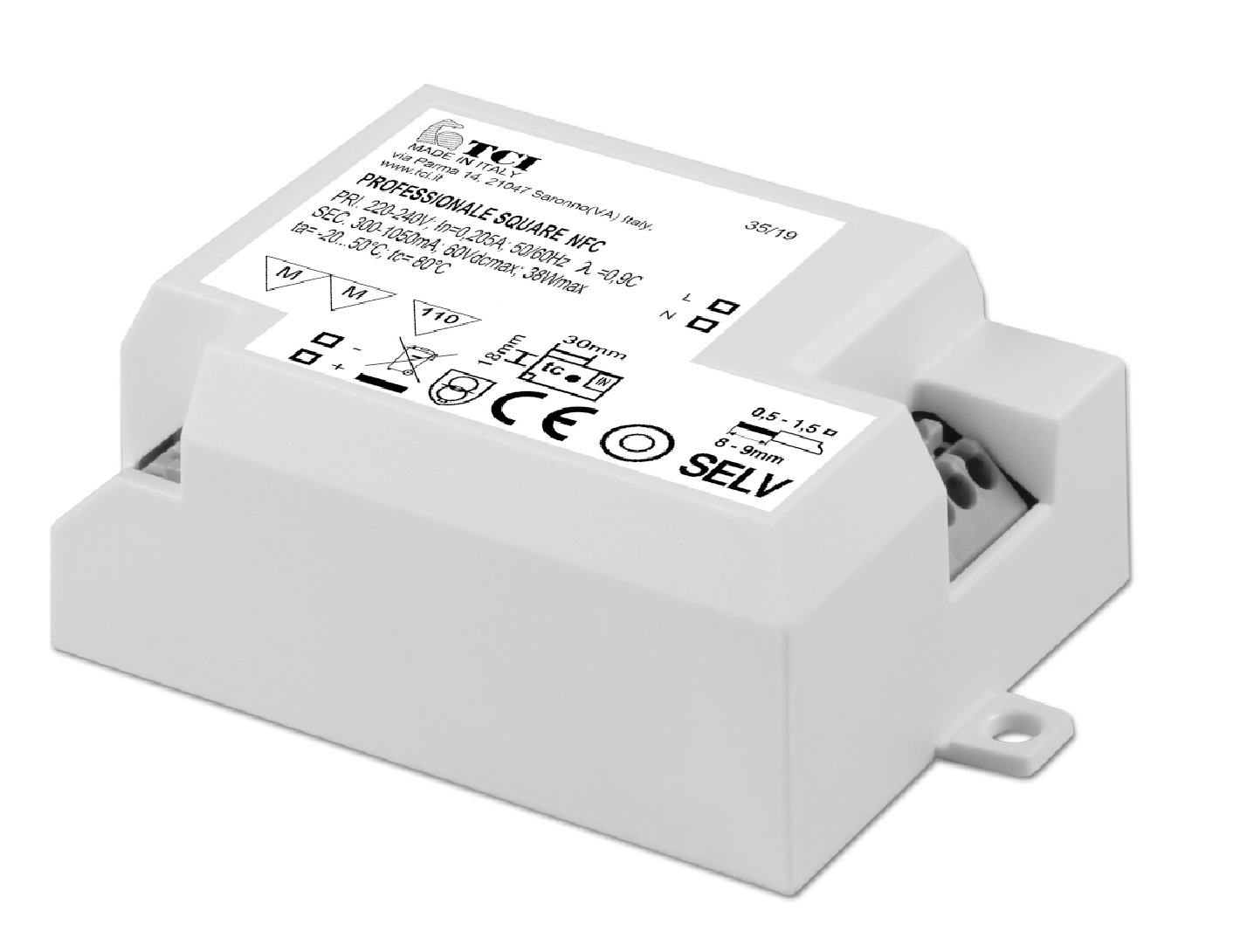

TCI LED driver PROFESSIONALE SQUARE NFC – 142024
Product information "TCI LED driver PROFESSIONALE SQUARE NFC – 142024"
- Driver for built-in use
- It can be used for lighting equipment in protection class I and II
- Active Power Factor Corrector
- Current regulation ±5 % including temperature variations

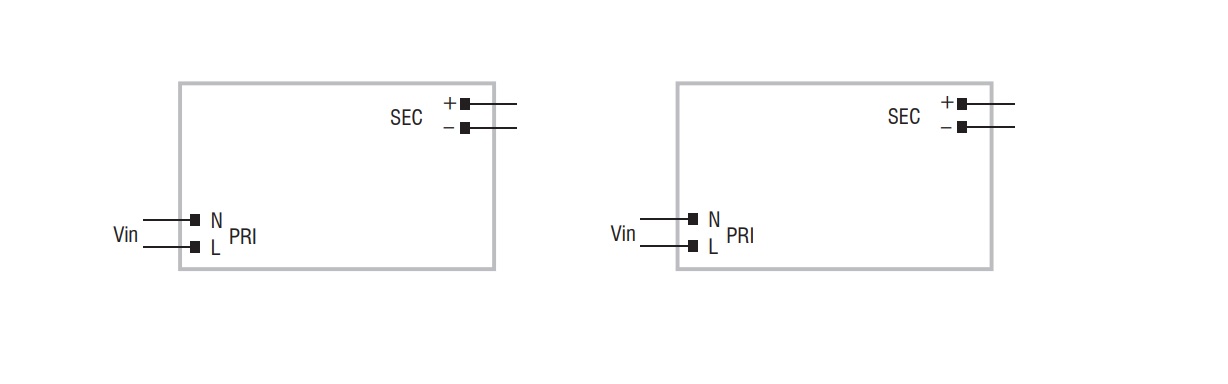

- Input and output terminal blocks on opposite sides (wire cross-section up to 1,5 mm² / AWG15)
- Driver can be secured with slot for screws
- Protections:
- against overheating and short circuits
- against mains voltage spikes
- against overloads - Thermal protection = C.5.a
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| terminal type: | plug-in terminal |
| conformity: | CB, CE, EAC, ENEC, UKCA |
Casing
| fire protection: | no |
|---|---|
| form type: | rectangular |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| dimming range from: | 1 % |
| color: | grey |
| lamp type: | LED |
| sensor type: | no |
Dimensions & packaging
| Length | 78 mm |
|---|---|
| Width | 54 mm |
| Height | 30 mm |
| Weight | 100 g |
