TCI LED-Driver DC JOLLY US - 126421
Product information "TCI LED-Driver DC JOLLY US - 126421"
13W Constant Current / Voltage LED Driver
The dimmable constant current / constant voltage LED driver DC JOLLY US by TCI is suitable for luminaire installation or independent mounting. Its protection class II prevents electric shocks in direct or indirect contact. It also has IP20 protection and is suitable for indoor use. The rated power is up to 13 watts.
The input and output terminals are located on the same side (wire cross-section up to 1.5 mm2 / AWG15). Clamping screws for cables with a minimum diameter of 3 mm to a maximum of 8 mm are mounted on the primary and secondary circuits.
Dimmable via 0 / 1-10V or PushDIM
The LED driver is dimmed via its 0 / 1-10V interface or via PushDIM in a range of 0-100%.
Additionally, the LED ECG has DIP switches for adjusting the output current and an Active Power Factor Corrector. The current regulation including temperature fluctuations is + - 5%.
The LED ECG DC JOLLY US is protected against overheating and short circuits, mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a.
Electrical data
| number of channels: | 1 |
|---|---|
| rated voltage: | 110-127 V |
| terminal type: | Push-in CAGE CLAMP® |
| conformity: | CE, ENEC |
| system power: | 13 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

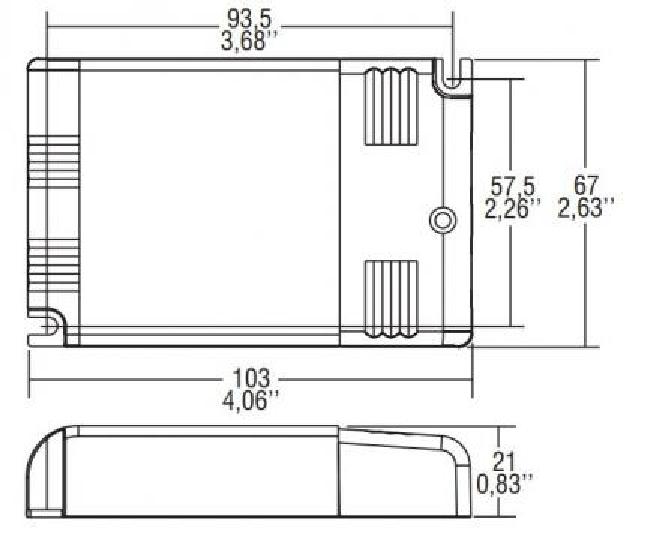

Dimensions & packaging
| EAN | 8010703336223 |
|---|---|
| Length | 67 mm |
| Width | 103 mm |
| Height | 21 mm |
