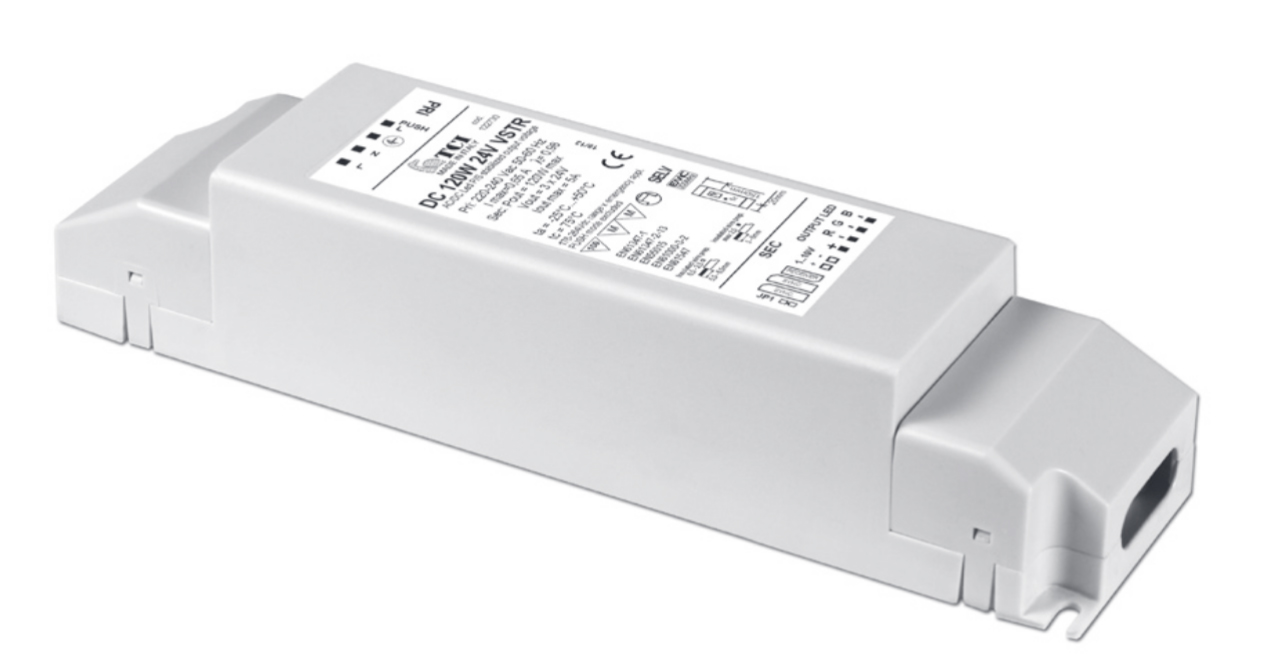

TCI LED driver DC 120W 24V VSTR CASAMBI - 127641
Product information "TCI LED driver DC 120W 24V VSTR CASAMBI - 127641"

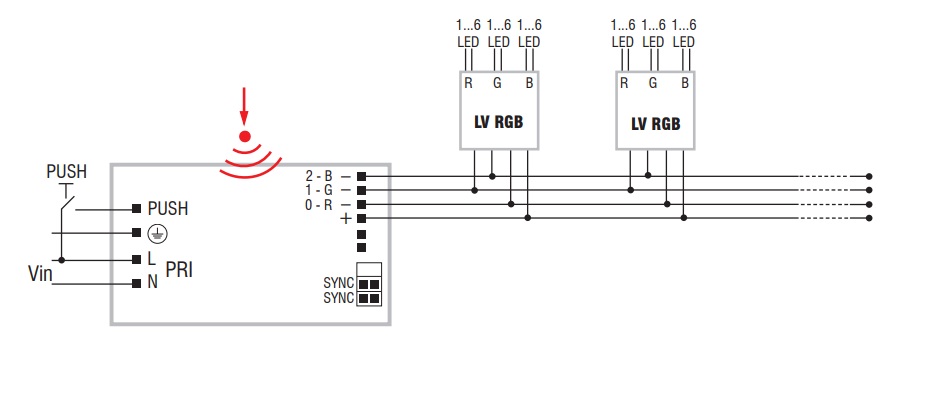

- Dimmable electronic driver with output voltage for LED modules, three outputs for LED modules (RGB) with integrated wireless CASAMBI module.
- IP20 independent driver, for indoor use.
- Class I protection against electric shock for direct or indirect contact.
- Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13).
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads;
- protection fuse at input. - Thermal protection = C.5.a.
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | PushDIM |
| sensor type: | no |
| solar panel: | no |

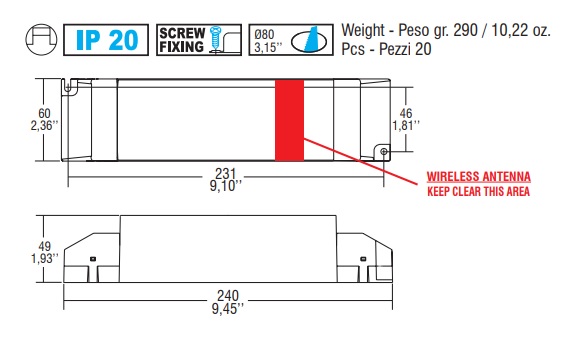

Dimensions & packaging
| Length | 60 mm |
|---|---|
| Width | 240 mm |
| Height | 49 mm |
