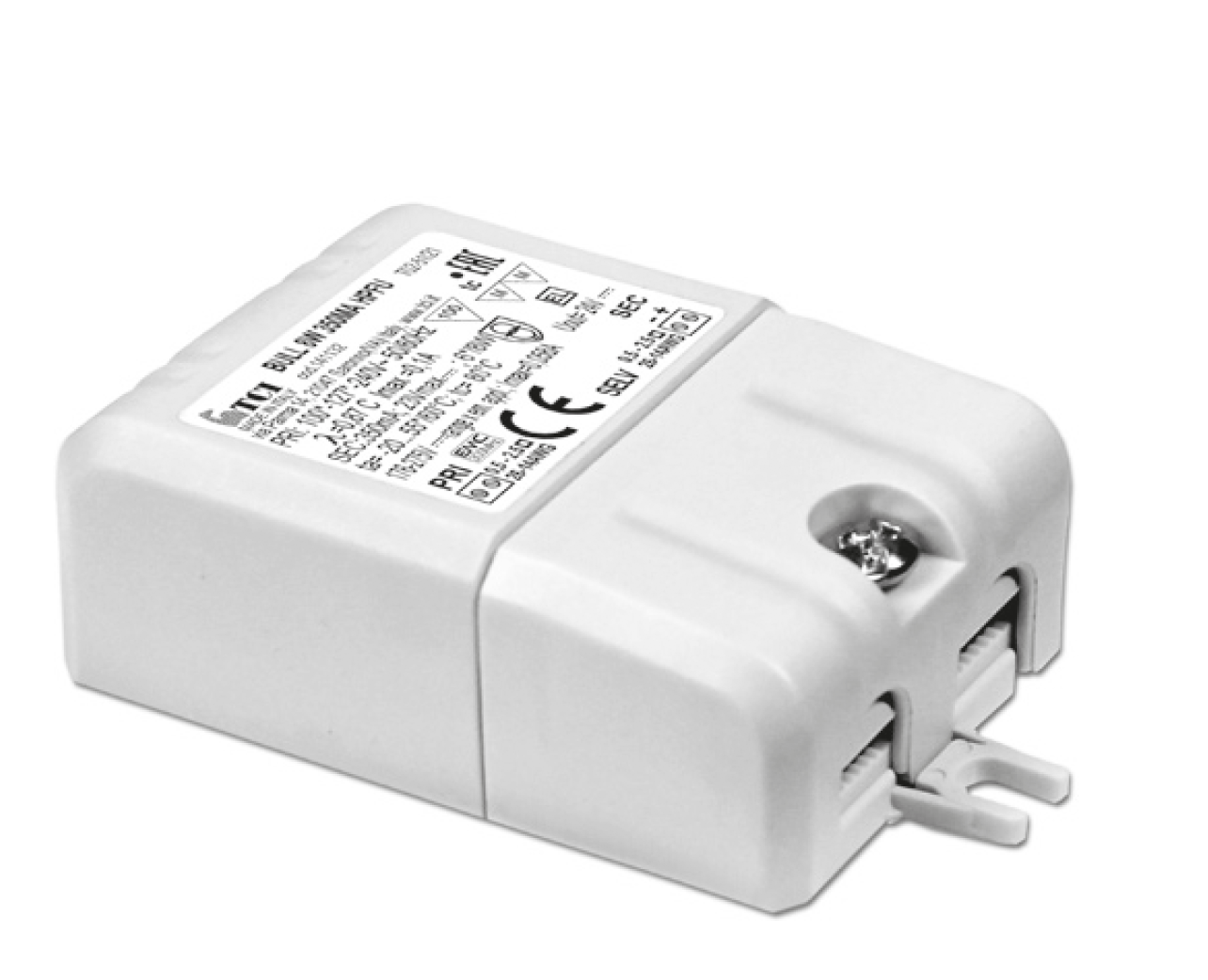

TCI LED driver BULL 8W 350mA HPFU – 141132
Product information "TCI LED driver BULL 8W 350mA HPFU – 141132"
- IP20 independent driver, for indoor use.
- Class II protection against electric shock for direct or indirect contact.
- Supplied with terminal cover and cable retainer.

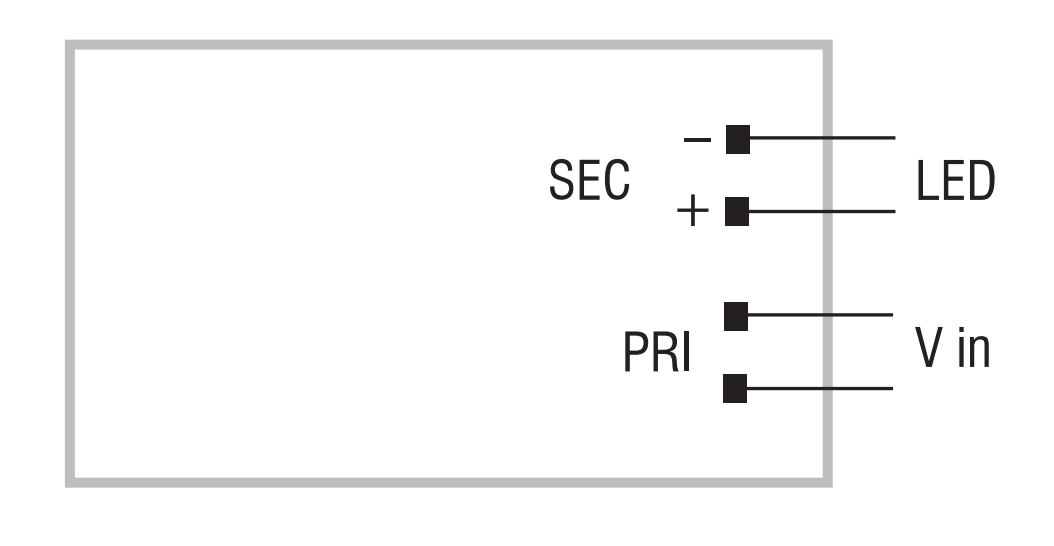

- Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2 / AWG13).
- Single terminal block on primary and secondary circuits.
- Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 6 mm.
- Protections:
- against overheating;
- against short circuits;
- against mains voltage spikes;
- against overloads
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| terminal type: | screw terminal |
| conformity: | CE, ENEC |
| system power: | 8 |
Casing
| fire protection: | no |
|---|---|
| form type: | rectangular |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |
| sensor type: | no |
Logistic data
| country of origin: | Italy |
|---|

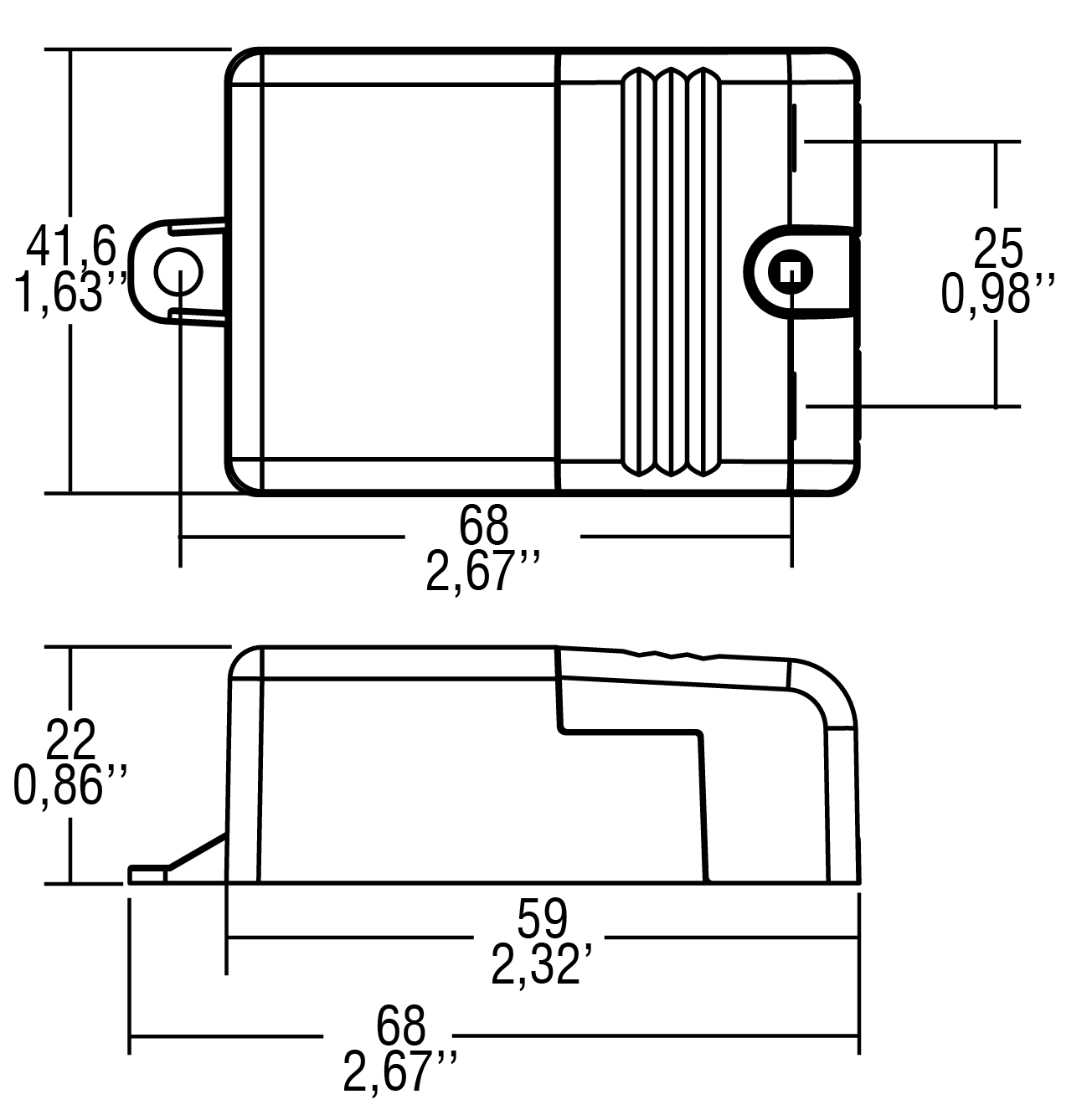

Dimensions & packaging
| Length | 68 mm |
|---|---|
| Width | 41 mm |
| Height | 22 mm |
| Weight | 40 g |
