TCI IPR2 30/700 LO - 152016/700
Product information "TCI IPR2 30/700 LO - 152016/700"

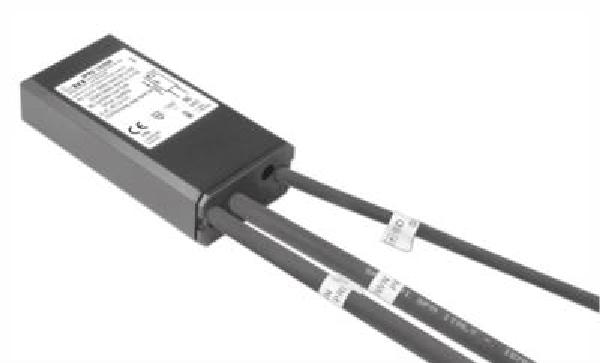

High-quality LED driver of the TCI brand with protection class IP68 for supplying power LED modules operated with constant current. The LED converter is not dimmable and the connection is made via permanently encapsulated connection cables.
Product features
- Double input terminal blocks to loop other driver
- Switchable driver
- Ultra high input spikes protection up to 4kV (see datasheet)
- Independent driver with IP68 case
- Class II protection against electric shock for direct or indirect contact.
- Supplied with connecting leads (length 400 mm) on primary and secondary circuits for connection
- Active Power Factor Corrector
- Current regulation ±5 % including temperature variations
- Protections against overheating and short circuits, mains voltage spikes and overloads
- Thermal protection = C.5.a.
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 110-127 V |
| conformity: | CE, ENEC |
| system power: | 30 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP68 |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
| solar panel: | no |

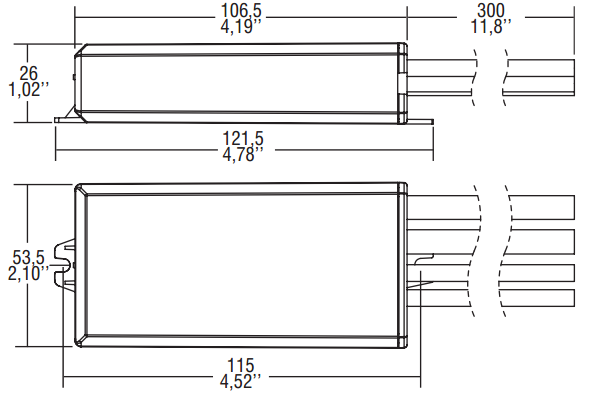

Dimensions & packaging
| Length | 53 mm |
|---|---|
| Width | 121 mm |
| Height | 26 mm |
