TCI SRL

TCI FL-ECG BCC 116/2

Product number: 137969
TCI SRL

TCI FL-ECG BCC 116/2

Product number: 137969

Immediately available

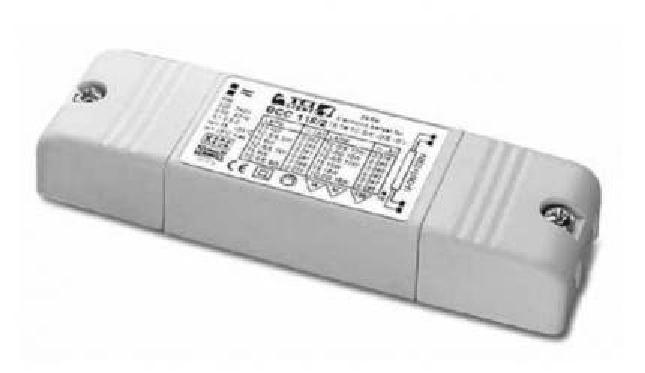

The TCI BCC 116/2 by TCI is an emergency current capable, ultra small and compact IP20 protected electronic multi-lamp ballast for T5/T8 and TC lamps, suitable for luminaire installation and independent mounting. The FL ECG is also suitable for connection to emergency equipment according to 60598-2 ... Read more

€9.01

Product information "TCI FL-ECG BCC 116/2 "

The TCI BCC 116/2 by TCI is an emergency current capable, ultra small and compact IP20 protected electronic multi-lamp ballast for T5/T8 and TC lamps, suitable for luminaire installation and independent mounting. The FL ECG is also suitable for connection to emergency equipment according to 60598-2-22.

The electronic ballast is equipped with protection class II. The housing is IP20 protected. The maximum power is 16 watts.

The FL ECG has push-wire connections (conductor area 0.5 - 1.5 mm2). The input and output terminal blocks are mounted on opposite sides. In addition, a terminal cover for cables with a diameter of 2.6 - 7.5 mm is included. The electronic ballast can be secured with a slot for screws.

The TCI BCC 116/2 performs a start with pre-heating to increase the life of the lamp.

The FL ECG is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Conformity: KEMAKEUR/MM/RoHS/CE

Technical lighting data

Wattage: TC-SEL#1#0#11#0#0#0#0#

Dimmable: no

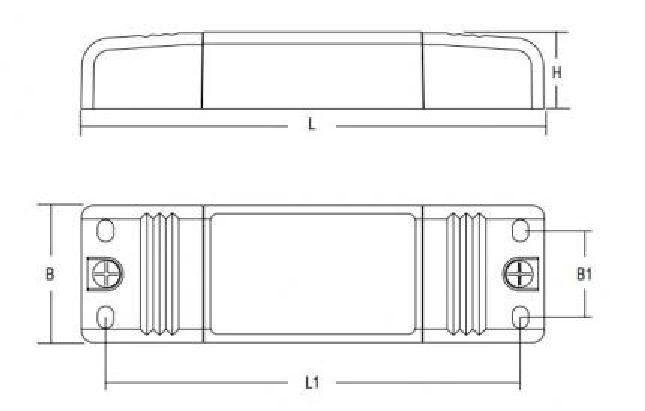

Dimensions

Width [mm]: 34mm

Height [mm]: 21mm

Length [mm]: 115mm

Hole dimension [mm]: 103.000mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -15...+55°C

Item number: 137969
