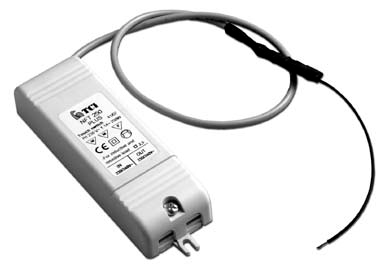

TCI Electronic switch NFT 250 PLUS - 120291NFT
Product information "TCI Electronic switch NFT 250 PLUS - 120291NFT"
Operating principle
- Electronic relay switch enabling load on/off by softly touching the connected sensitive area.
- The microprocessor technology makes this switch very reliable and unaffected by any external noise (for example: mobile phones, electrical motors, high-frequency electronic ballasts etc).
Specifications
- The high-switching power relay switch installed in the circuit can control different types of load:
- Fluorescent lamps supplied using electronic ballasts (max 7 ballasts), max. 250 W;
- Fluorescent lamps supplied using electromechanical ballasts, max. 250 W;
- Low voltage halogen lamps supplied using electronic transformers, max. 250 W;
- 12 V low voltage halogen lamps supplied using toroidal and/or electromechanical transformers, max. 250 W;
- 230 V incandescent or halogen lamps, (only resistive load) max. 500 W
- Supply voltage: 230 V - 50÷60 Hz.
- Class II protection against electrical shock following direct or indirect contact.
- IP20 independent use.
- Complete with terminal cover and cable retainer for cables in diameter 3 mm min. - 6 mm max.
- Inlet and outlet terminals on the same side, 2,5 mm2 terminal section area.
- The transformer comes complete with special slots for screw - retention.
- One or two cables (SENSOR) can be connected as an option to provide on/off control from two different locations. As a standard, the product is supplied complete with one 30 cm cable (SENSOR).
- Totally safe touch point complying with applicable regulations in force.
- The touch point should be properly insulated and located far from walls, ceilings, floors and electrically active surfaces. The touch point should not be connected to a grounded surface.
