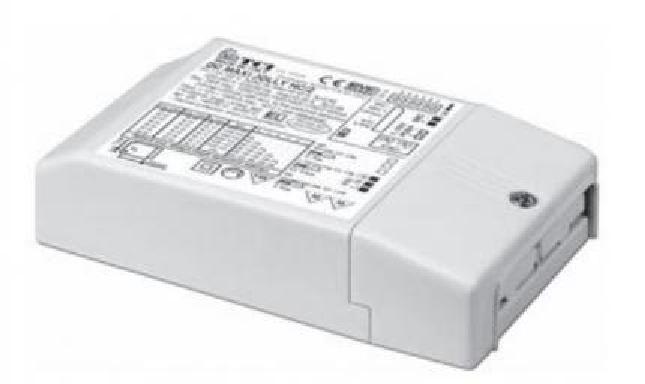

Product information "TCI ECG-LED DC MAXI JOLLY HC/2"
The dimmable constant current-LED driver DC MAXI JOLLY HC/2 from TCI is IP20-protected and suitable for indoor use. Its Class II protection prevents electric shocks for direct or indirect contact. The driver has DIP switches for selecting the output current. Additionally, an Active Power Factor Corrector is implemented. The driver has an analogical input for thermal sensor connection (NTC) and an auxiliary output 12V with max. 100mA for a fan.
The input and output terminal blocks are located on the same side (wire cross-section up to 1,5-2.5 mm2 / AWG15 - AWG13). Clamping screws for cables with a diameter of min. 3 mm – max. 8 mm are mounted on primary and secondary circuits.
The constant current-LED driver DC MAXI JOLLY HC/2 is protected against overheating and short circuits, against mains voltage spikes and against overload. It is also equipped with an automatic resetting thermal protection acc. to EN 61347 C.5. a. The control accuracy of the output current including temperature fluctuations is + - 5%.
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 2-44 V |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 3-61 W |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| dimmable: | yes |
|---|---|
| setting type: | DIP-switch |
| color: | white |
| interface: | PushDIM |
Logistic data
| item category: | LED drivers |
|---|

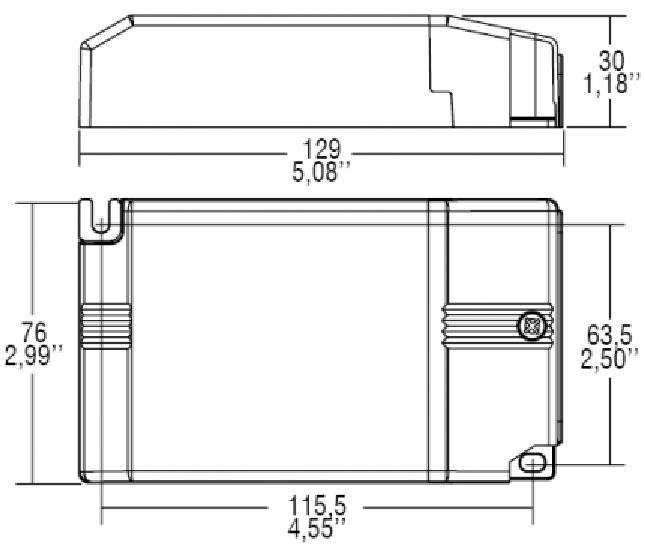

Dimensions & packaging
| EAN | 8010703311008 |
|---|---|
| Length | 129 mm |
| Width | 76 mm |
| Height | 30 mm |
| Weight | 250 g |
