TCI DC 100W 24V SLIM R - 127955
Product information "TCI DC 100W 24V SLIM R - 127955"

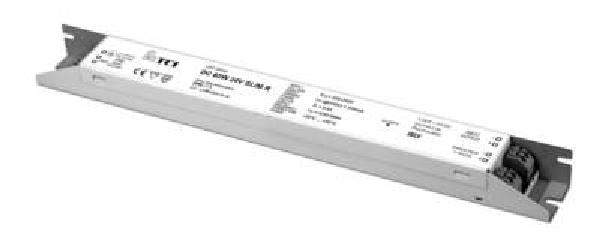

100W constant voltage LED ECG for built-in use
The dimmable 0 / 1-10V constant voltage LED driver DC 100W 24V SLIM R is suitable for installation in luminaires of protection class I. It has a nominal output of up to 100 watts. Its protection class I prevents electric shocks in direct and indirect contact.
The input and output terminal blocks are on opposite sides. There is also a single terminal on a primary and secondary circuit (wire cross-section up to 1.5mm2 / AWG15). The LED ECG is fastened with screws.
Dimmable via 0 / 1-10V
The LED ECG can be dimmed via its 0 / 1-10V interface in a range of 2-100%.
The TCI LED driver DC 100W 24V SLIM is protected against overheating, short circuits, mains voltage spikes and against overload. In addition, it has a protection fuse at the input and a thermal protection acc. EN 61347 C.5. a. automatically reversible.
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE, ENEC |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | 1-10 V |
| sensor type: | no |
| solar panel: | no |

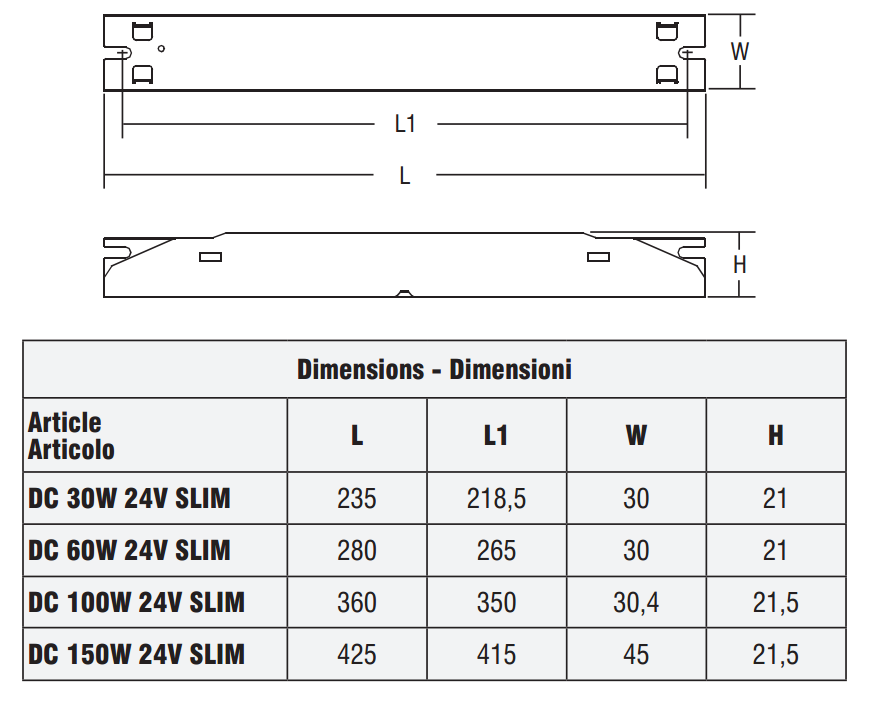

Dimensions & packaging
| EAN | 8010703334755 |
|---|---|
| Length | 31 mm |
| Width | 360 mm |
| Height | 22 mm |
