Steinel Presence detector TRUE PRESENCE KNX DE - 4007841079451
Steinel GmbH
Steinel Presence detector TRUE PRESENCE KNX DE - 4007841079451
Product number:
4007841079451
Immediately available
€298.90
(5% saved)
€282.33
Content:
1 Stück
Prices incl. VAT plus shipping costs net €237.25
Product information "Steinel Presence detector TRUE PRESENCE KNX DE - 4007841079451"

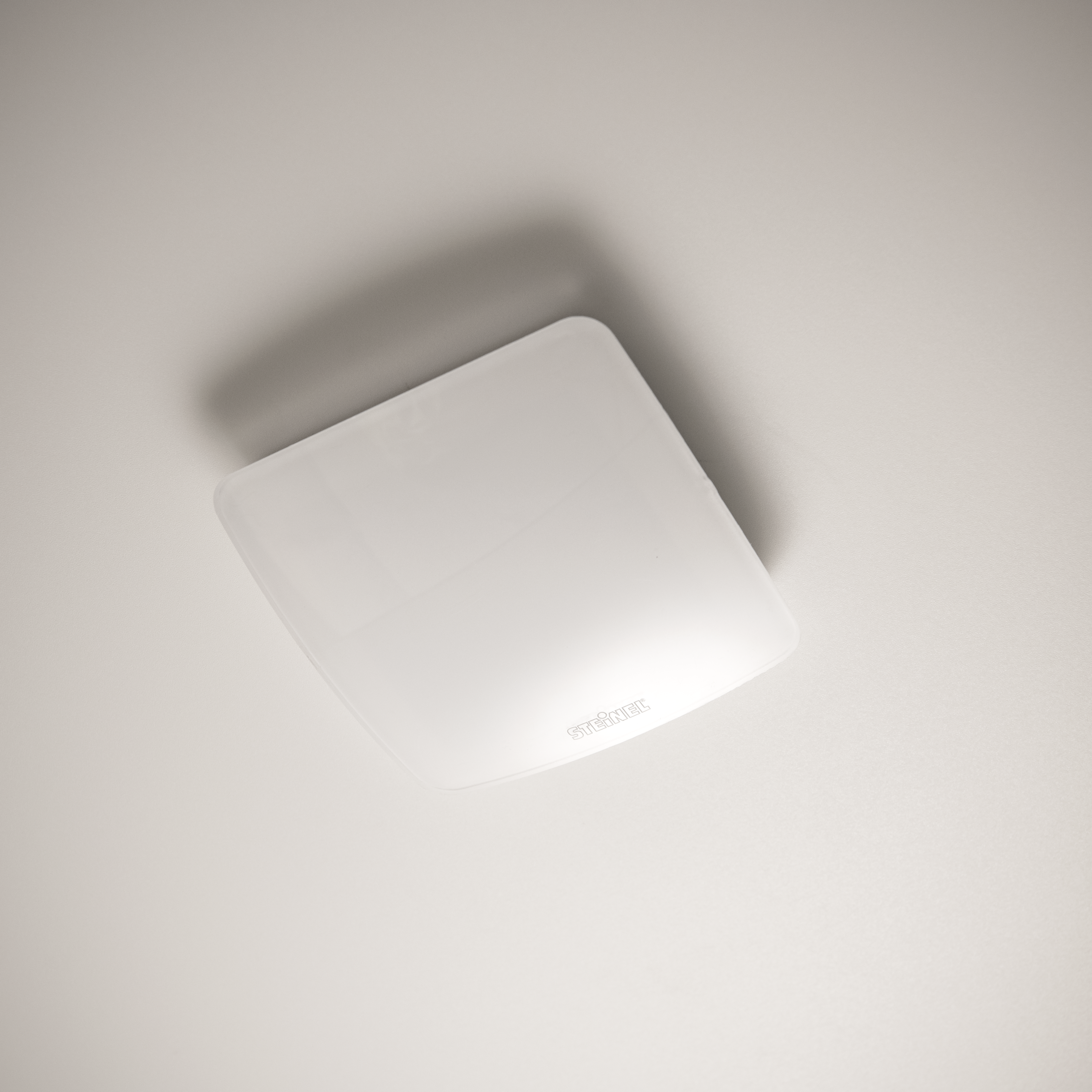

The world's first true presence detector! No unnecessary stay-ON times any more – no unnecessary electricity costs. Precision high-frequency measurement of the surrounding area provides 100 per-cent reliable detection. The True Presence detector reliably identifies whether persons are present or absent over an area of 64 m² – on the basis of the body's micro movements as well as human vital functions, such as breathing in and out, or shoulder movement. The new standard in building automation.
Downloads & Documents
STEINEL GmbH Dieselstr. 80-84 33442 Herzebrock-ClarholzDEinfo@steinel.dewww.steinel.de
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
Casing
| ballproof: | no |
|---|---|
| form type: | square |
| protection type: | IP20 |
| mounting: | ceiling installation, ceiling mounting |
| environment temperature to: | 40 °C |
Photometric data
| response brightness to: | 1000 Lux |
|---|---|
| response brightness from: | 2 Lux |
| setting type: | bus, ETS-software |
| detection angle: | 360 ° |
| color: | white |
| detection range: | Ø 15 m (177 m²) |
| interface: | KNX |
| sensor type: | high-frequency |
| solar panel: | no |
| time setting to: | 1092 min |
| time setting from: | 30 s |
Logistic data
| item category: | sensors |
|---|---|
| country of origin: | Romania |
Dimensions & packaging
| EAN | 4007841079451 |
|---|---|
| Length | 89 mm |
| Width | 103 mm |
| Height | 103 mm |
| Weight | 190 g |
