Philips / Signify UVC disinfection lamp TUV PL-L 18W/4P 1CT/25 (TUV PL-L series) - 927903004007
Philips Lighting GmbH
Philips / Signify UVC disinfection lamp TUV PL-L 18W/4P 1CT/25 (TUV PL-L series) - 927903004007
Product number:
927903004007
Immediately available
€12.05
Content:
1 Stück
Prices incl. VAT plus shipping costs net €10.13
Product information "Philips / Signify UVC disinfection lamp TUV PL-L 18W/4P 1CT/25 (TUV PL-L series) - 927903004007"
TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the singleended lamp base, lamp replacement is easy.
Benefits
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
Features

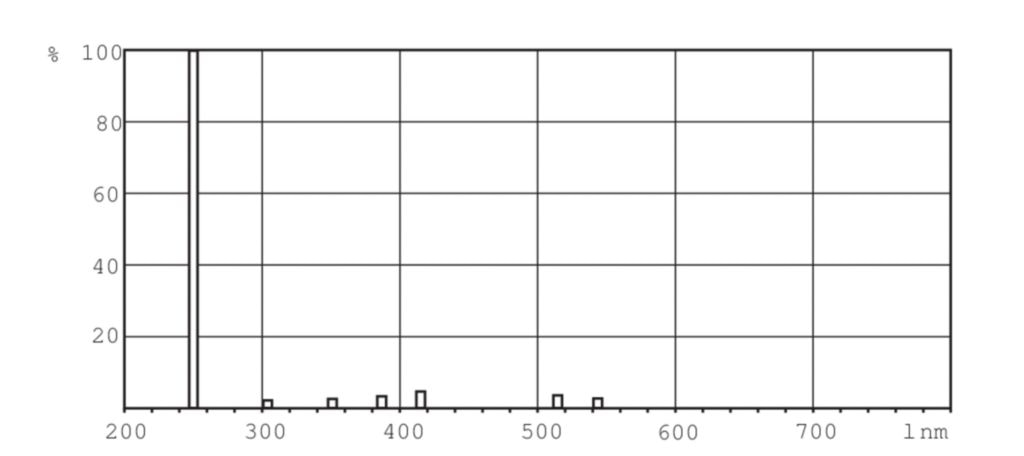

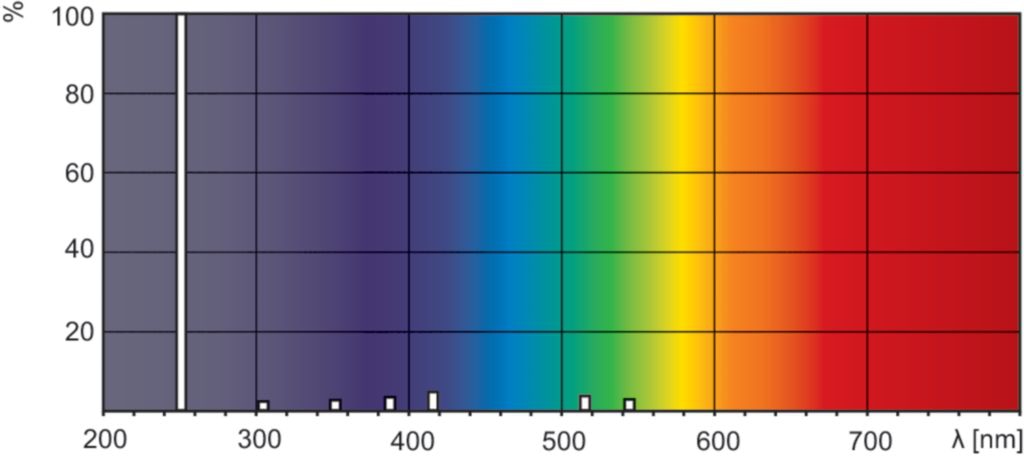

- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Lamp glass filters out the 185 nm ozone-forming radiation
- Warning sign on lamp indicates that the lamp radiates UVC
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Pond water units
- Air treatment units
- Stand-alone purifiers

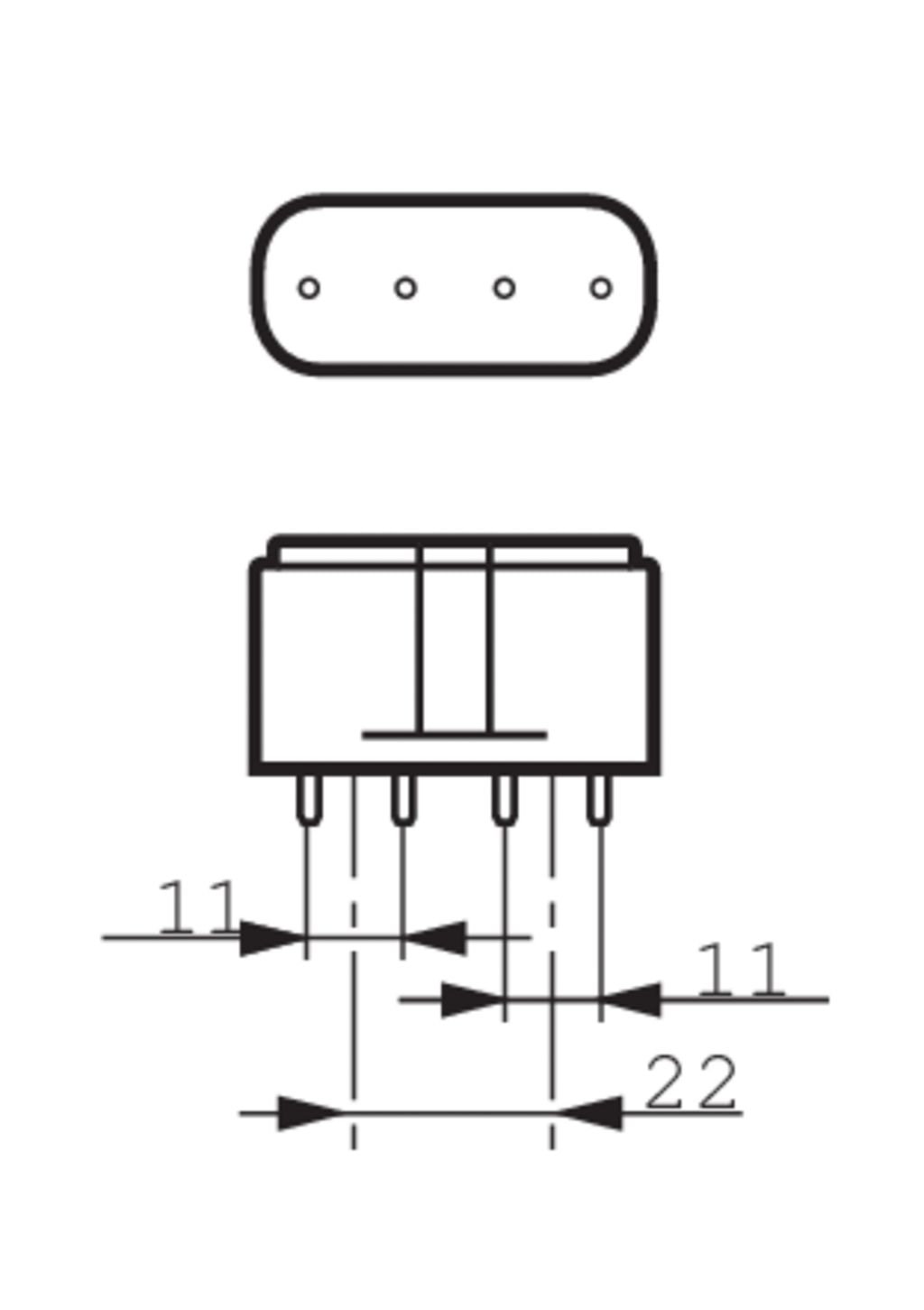

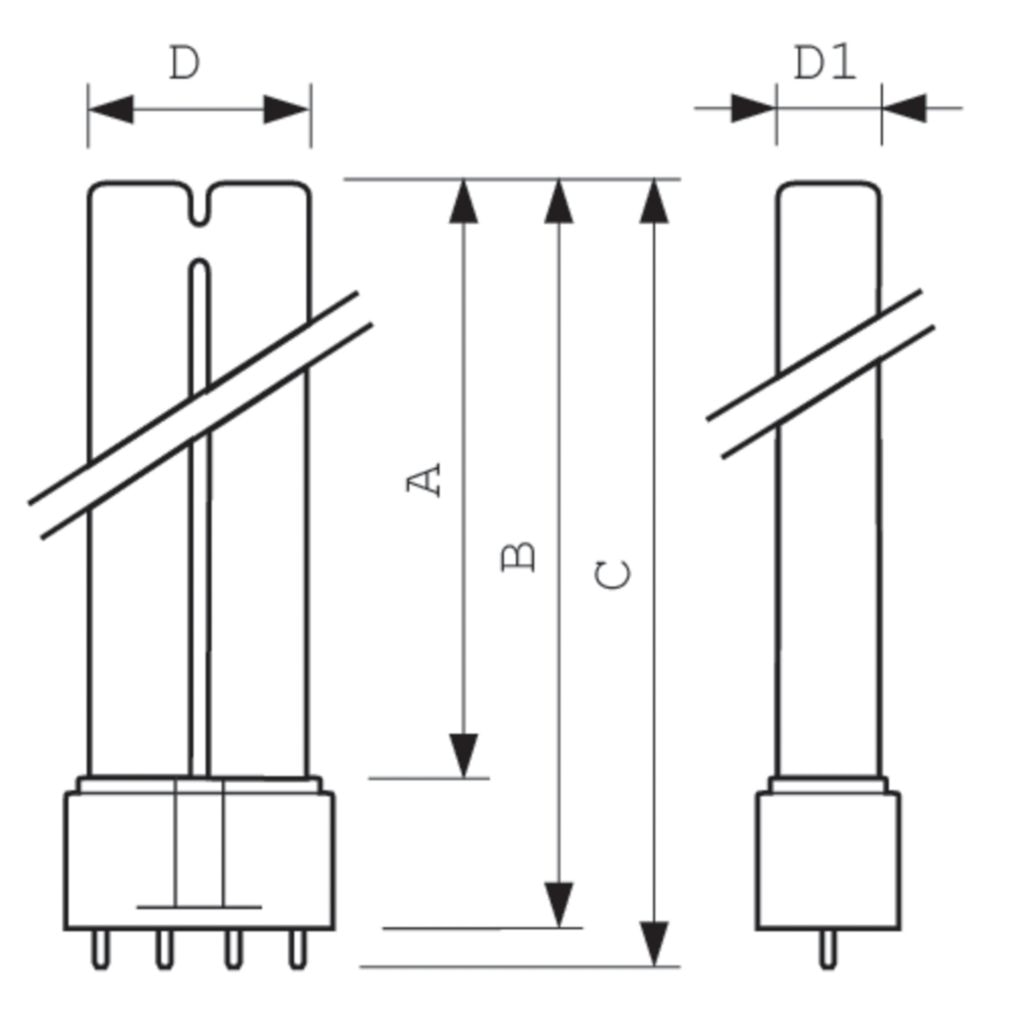

Dimensions (see image)
- D1 (max): 18 mm
- D (max): 39 mm
- A (max): 195 mm
- B (max): 220 mm
- C (max): 225 mm
Warnings and Safety
A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
When disinfecting with UV-C lamps, the correct application must be observed in any case. If not used properly, the UV-C lamps can severely damage the eyes and skin. Learn more about this topic here.
Downloads & Documents
Signify GmbH
(Lampe) Röntgenstr. 22
22335 Hamburg
DE
info@signify.com
www.signify.com
Electrical data
| operating voltage: | 58 V |
|---|---|
| through wiring: | no |
| conformity: | CE |
| system power: | 18 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| material: | glass |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | transparent |
| color temperature [Kelvin]: | UV |
| lamp type: | UV-C |
| inclusive lamp: | yes |
| sensor type: | no |
| socket: | 2G11 |
Logistic data
| item category: | lamps |
|---|
Dimensions & packaging
| EAN | 8711500624925 |
|---|---|
| Length | 225 mm |
| Width | 39 mm |
| Height | 18 mm |
| Weight | 60.9 g |
