Philips Lighting GmbH

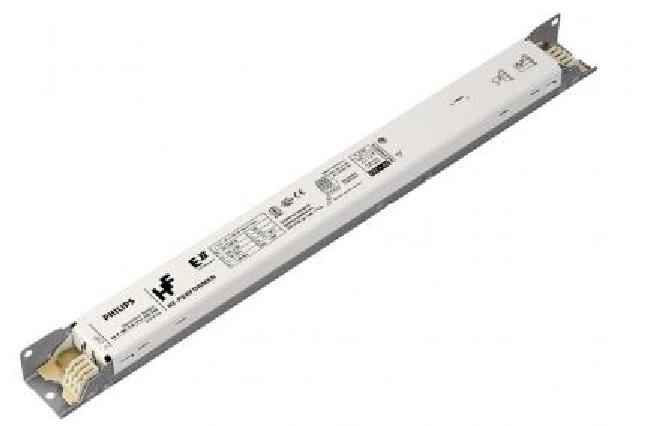

Philips FL-ECG HF-Pi 3/4 14/24 TL5/PL-L EII 220-240V

Product number: 913700657666
Philips Lighting GmbH

Philips FL-ECG HF-Pi 3/4 14/24 TL5/PL-L EII 220-240V

Product number: 913700657666

Immediately available

The HF-Pi 3/4 14/24 TL5/PL-L EII 220-240V from the High Performer EII Intelligent series from Philips is a compact, lightweight and intelligent 3/4 flamed electronic ballast in an elongated that supports TL5 lamps. It is suitable for luminaire intallation.Thanks to its built-in HF-regulator Intelli ... Read more

€21.28


Content: 1 Stück

Product information "Philips FL-ECG HF-Pi 3/4 14/24 TL5/PL-L EII 220-240V"

The HF-Pi 3/4 14/24 TL5/PL-L EII 220-240V from the High Performer EII Intelligent series from Philips is a compact, lightweight and intelligent 3/4 flamed electronic ballast in an elongated that supports TL5 lamps. It is suitable for luminaire intallation.

Thanks to its built-in HF-regulator Intelligent TD, MASTER TL5 HE- and HO-lamps of the same length can easily be replaced - so you benefit from a maximum flexibility in terms of design and use of the lamp.

Additionally, the intelligent power management functions of the Philips ECG ensure a maximum system efficiency combined with MASTER TL5, TL5c, TL-D and PL-L lamps.

The Philips ECG has a nominal power of 24 watts at an input voltage of 220 to 240 volts.

The white housing of the ballast is equipped with the IP20 protection.

Electrical data
energy efficiency index: A2
rated voltage: 220-240 V
system power: 14 W
Casing
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 50 °C
Photometric data
color: white
Logistic data
item category: electronic ballasts

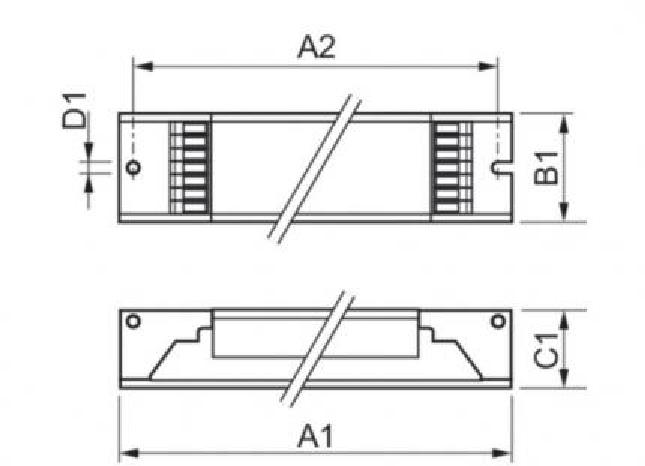

Dimensions & packaging
EAN 8711500881960
Length 360 mm
Width 30 mm
Height 22 mm
Weight 270 g
