Philips FL-ECG HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V
Philips FL-ECG HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V
Immediately available
€17.31
Prices incl. VAT plus shipping costs net €14.55
Product information "Philips FL-ECG HF-P 1 22-42 PL-T/C/L/TL5C EII 220-240V"

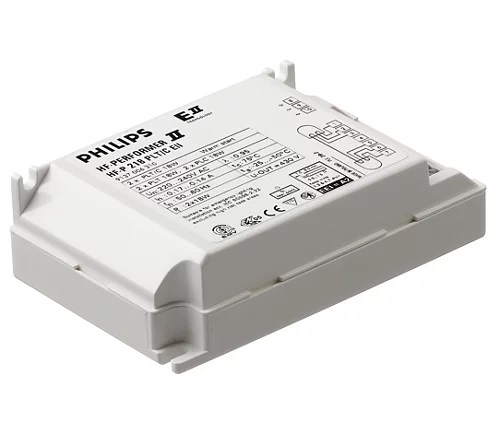

The HF-P 1 22-42 PL-T/C/L/TL5C EII220-240V is a robust high-frequency electronic ballast which supports T5C and TC-Rlamps.
The flexible ECG is particularlysuitable for applications where high energy efficiency is required. In addition,the HF-Performer EII can be used for general lighting and accent lighting inthe interior, in order to create a comfortable ambience. It providesflicker-free light.
The Philips ECG has a nominal powerof 40 watts at an input voltage of 220 to 240 volts.

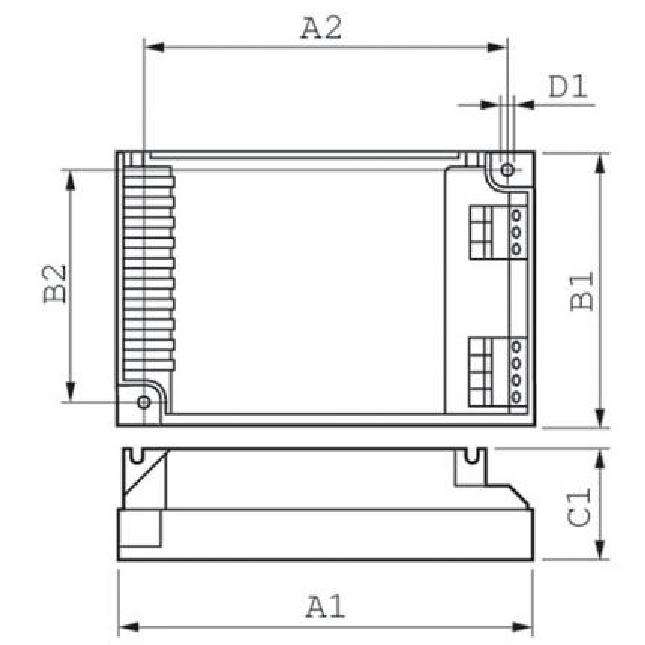

With its dimensions of 103x 61 x 30 mm, it is particularly compact. The white housing is equipped withIP20 protection.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | alternating voltage |
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 22 W |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| EAN | 8711500913975 |
|---|---|
| Length | 103 mm |
| Width | 61 mm |
| Height | 30 mm |
| Weight | 130 g |
