Osram QTi 1x28/54/35/49 GII

Product number: 4008321383358
OSRAM GmbH

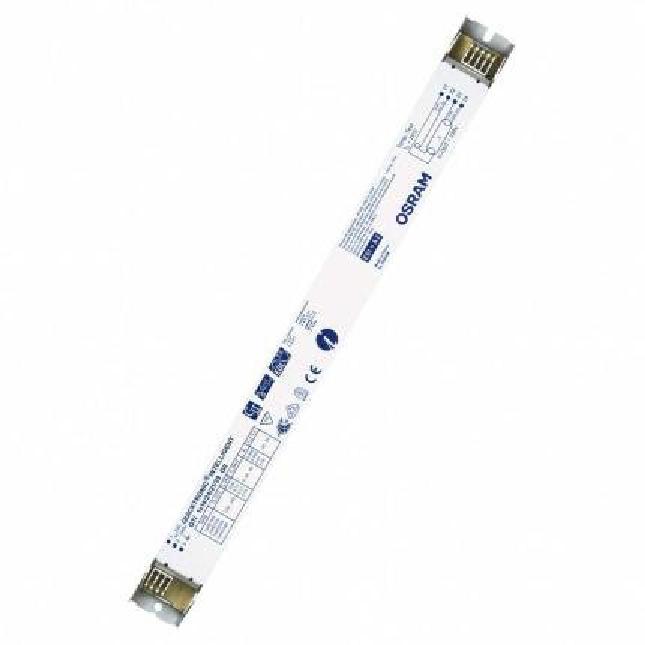

Osram QTi 1x28/54/35/49 GII

Product number: 4008321383358

Immediately available

Advantages OSRAM QTi 1x28 / 54/35/49 GII: - Long lamp life - High operating strength - Automatic restart after relamping - Perfect lamp starting for applications with motion - VDE / VDE EMC certified system - Maximum energy efficiency thanks to cut-off technology Applications: - Emerg ... Read more

13,89 €

Product information "Osram QTi 1x28/54/35/49 GII"
Advantages OSRAM QTi 1x28 / 54/35/49 GII:
- Long lamp life
- High operating strength
- Automatic restart after relamping
- Perfect lamp starting for applications with motion
- VDE / VDE EMC certified system
- Maximum energy efficiency thanks to cut-off technology
Applications:
- Emergency lighting systems acc. EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors or storerooms
- Public buildings
- Sports halls and factories
- Rooflights
- Suitable for emergency lighting (DC operation)
- Modernization of existing plants
Attribute:
- Supply voltage: 220 ... 240 V
- Power supply voltage: 198 ... 264 V
- Frequency: 0 Hz, 50 ... 60 Hz
- Lamp start with optimum filament preheating
- Lifetime:> 100,000 h (at T = 65 ° C to Tc)
- Energy Efficiency Index EEI: A2 BAT
- Automatic safety shutdown of lamp defect or at end of life (EOL T.2)
- Security: Travel to EN 61347-2-3 - Lamp: according to EN 60929

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

EEI (Energy Efficiency Index): A2

Conformity: VDE/VDE-EMC/CE/ENEC 10

Service life: 100000h

Technical lighting data

Wattage: T5#1#0#28#0#0#0#0#

With light source: no

Dimmable: no

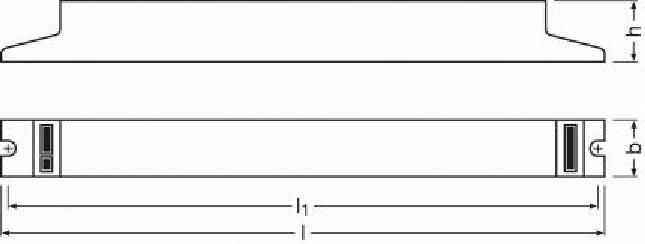

Dimensions

Width [mm]: 30mm

Height [mm]: 21mm

Length [mm]: 360mm

Hole dimension [mm]: 350.000mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -20… +50°C

Protection class: II

Item number: 4008321383358

Logistic Data

EAN (pcs): 4008321383358
