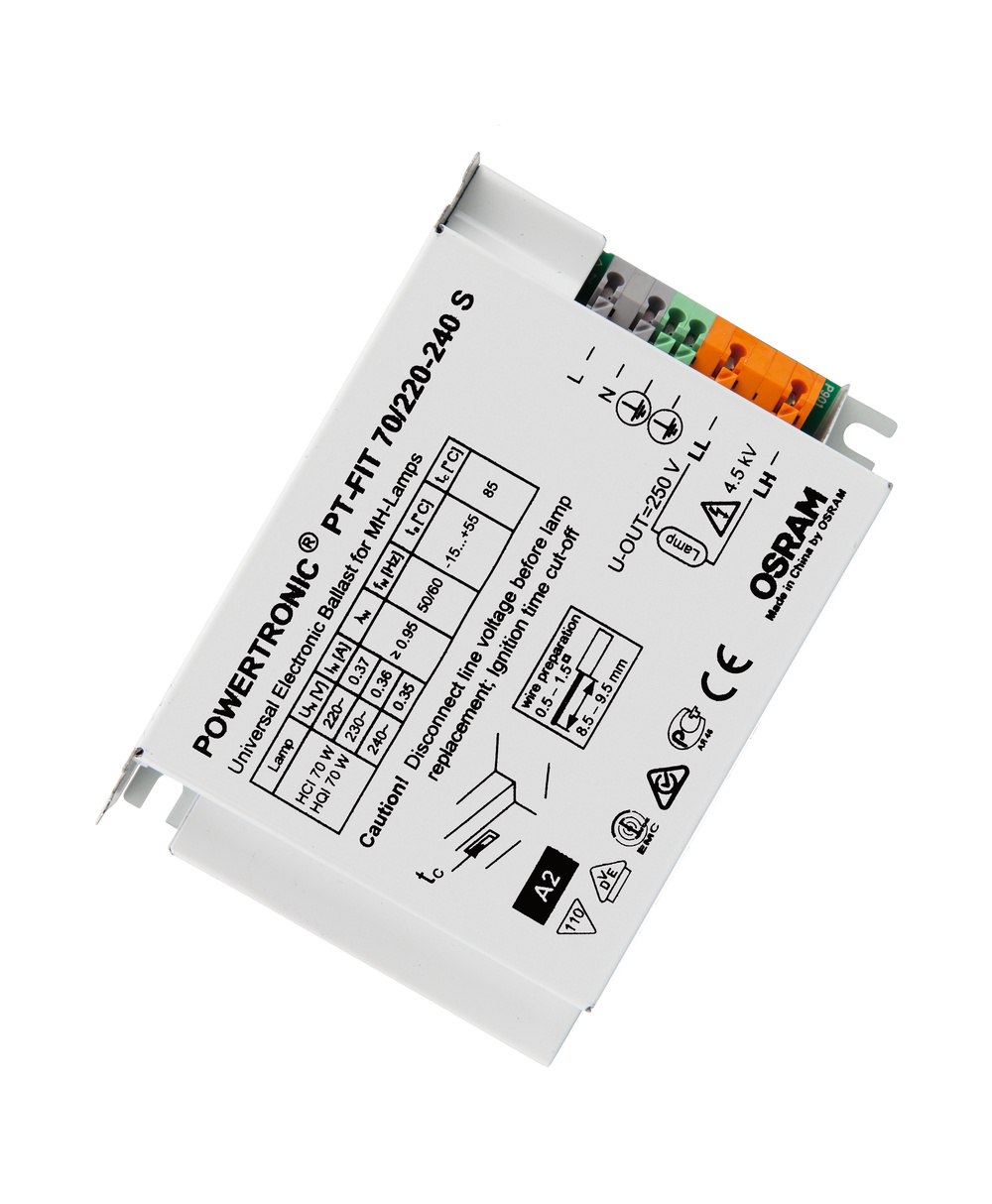

Ledvance electronic ballast ECG POWERTRONIC PT-FIT S 70/220-240 S - 4008321386649
LEDVANCE
Ledvance electronic ballast ECG POWERTRONIC PT-FIT S 70/220-240 S - 4008321386649
Product number:
4008321386649
No longer available
For an alternative please contact us!
Product information "Ledvance electronic ballast ECG POWERTRONIC PT-FIT S 70/220-240 S - 4008321386649"
ballast for HID lamps, for installation of light. Product properties: Energy-efficiency index EEI: A2. Supply voltage: 220 ... 240 V. Network frequency: 50 ... 60 Hz. Press disorder: according to EN 55015/CISPR 15. Security: according to EN 61347-2-12. Network current waves according to EN 61000-3-2. Immunity, resistance according to EN 61547. Product advantages: Optimized costs/benefit factor. Compact dimensions and low weight for filigree lighting designs. Automatic safety shutdown in lamp defect and at the end of the lamp life (EOL). Areas of application: shop lighting. Wellness areas (in dry, corrosion -protected place). Effect and accent lighting.
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| lifetime: | 30000 h |
| system power: | 80 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| material: | metal |
| protection class: | I |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| solar panel: | no |
Logistic data
| item category: | electronic ballasts |
|---|---|
| country of origin: | Bulgaria |

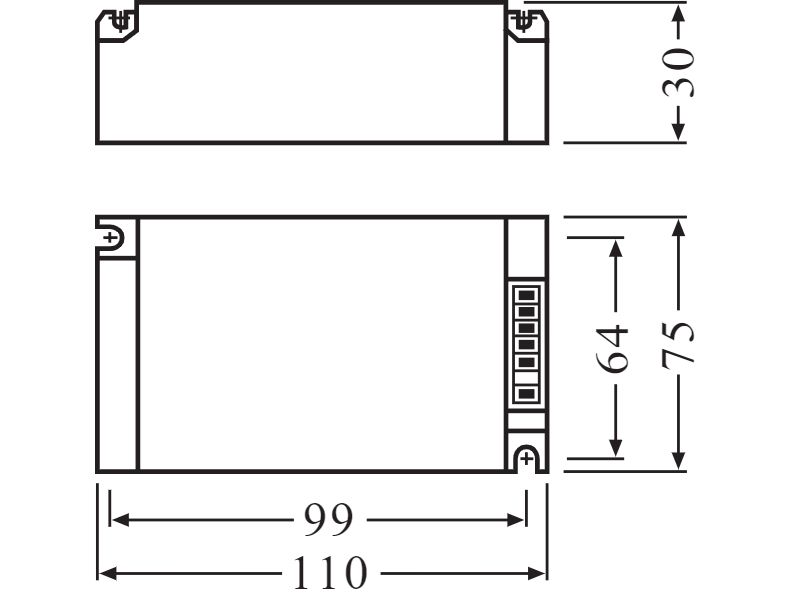

Dimensions & packaging
| EAN | 4008321386649 |
|---|---|
| Length | 110 mm |
| Width | 75 mm |
| Height | 30 mm |
| Weight | 250 g |
