OSRAM GmbH

Osram LED-Driver OT FIT 50/220-240/250 D L

Product number: 4052899222571
OSRAM GmbH

Osram LED-Driver OT FIT 50/220-240/250 D L

Product number: 4052899222571

Immediately available

The constant current driver for LED modules OT FIT 50/220-240/250 D L from the Optotronic range from Osram is suitable for luminaires of protection class I. The LED ECG is also suitable for use in emergency lighting systems according to IEC 61347-2-13.The maximum system power is 54 watts. The LED E ... Read more

€10.34


Content: 1 Stück

Product information "Osram LED-Driver OT FIT 50/220-240/250 D L"

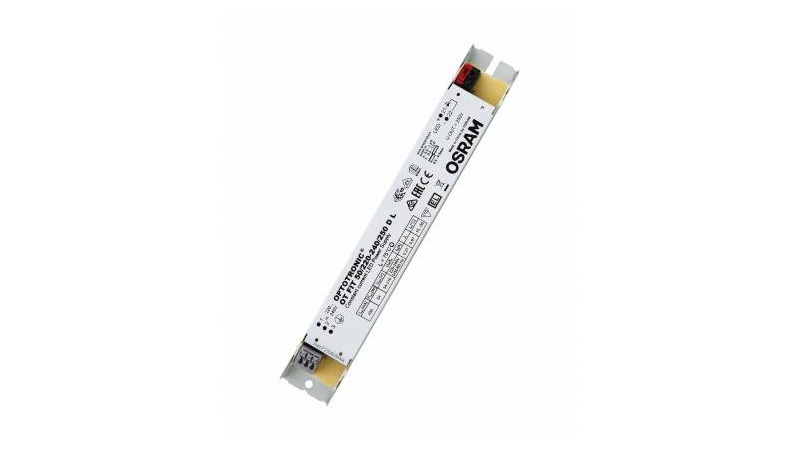

The constant current driver for LED modules OT FIT 50/220-240/250 D L from the Optotronic range from Osram is suitable for luminaires of protection class I. The LED ECG is also suitable for use in emergency lighting systems according to IEC 61347-2-13.

The maximum system power is 54 watts. The LED ECG has a high efficiency and reliability. Thanks to a very low output ripple current, you also benefit from a high quality of light.

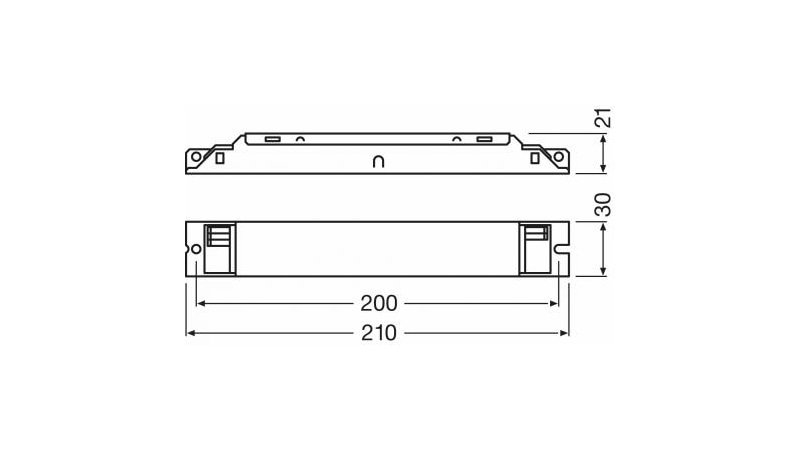

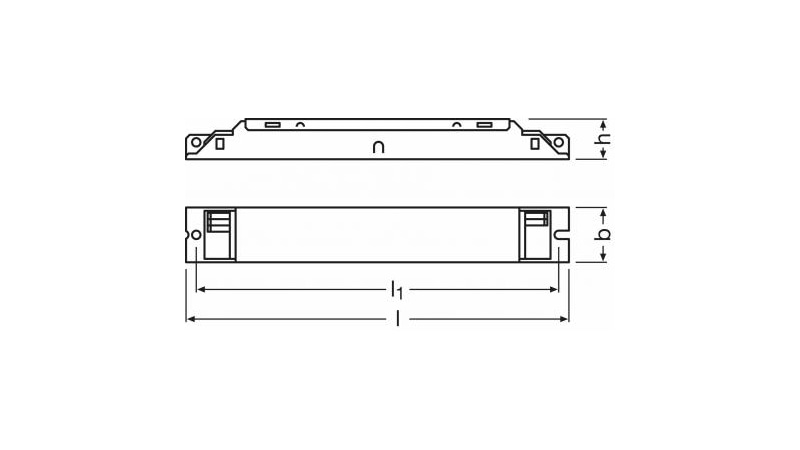

The housing of the Osram OT FIT driver is IP20 protected and has small dimensions of 210 x 30 x 21 mm.

The LED driver has an overload, an overtemperature and a hot plug protection. It complies with the safety regulations according to EN 61347-1, 61347-2-13, 62384 as well es the the provision for RI suppression according to EN 55015: 2007 + A1: 2007 / CDN, for line harmonics according to EN 61000-3-2 and for immunity according to EN 61547.

The lifetime is 100,000 hours at a maximum housing temperature of 65°C and a maximum failure rate of 10%.

Electrical data
rated voltage: 220-240 V
lifetime: 50000 h
system power: 54 W
Casing
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
material: metal
mounting: Installation
protection class: I
environment temperature from: -15 °C
environment temperature to: 50 °C
Photometric data
application: indoor
dimmable: no
color: white
Logistic data
item category: LED drivers
country of origin: Bulgaria
Dimensions & packaging
EAN 4052899222571
Length 210 mm
Width 30 mm
Height 21 mm
Weight 125 g
