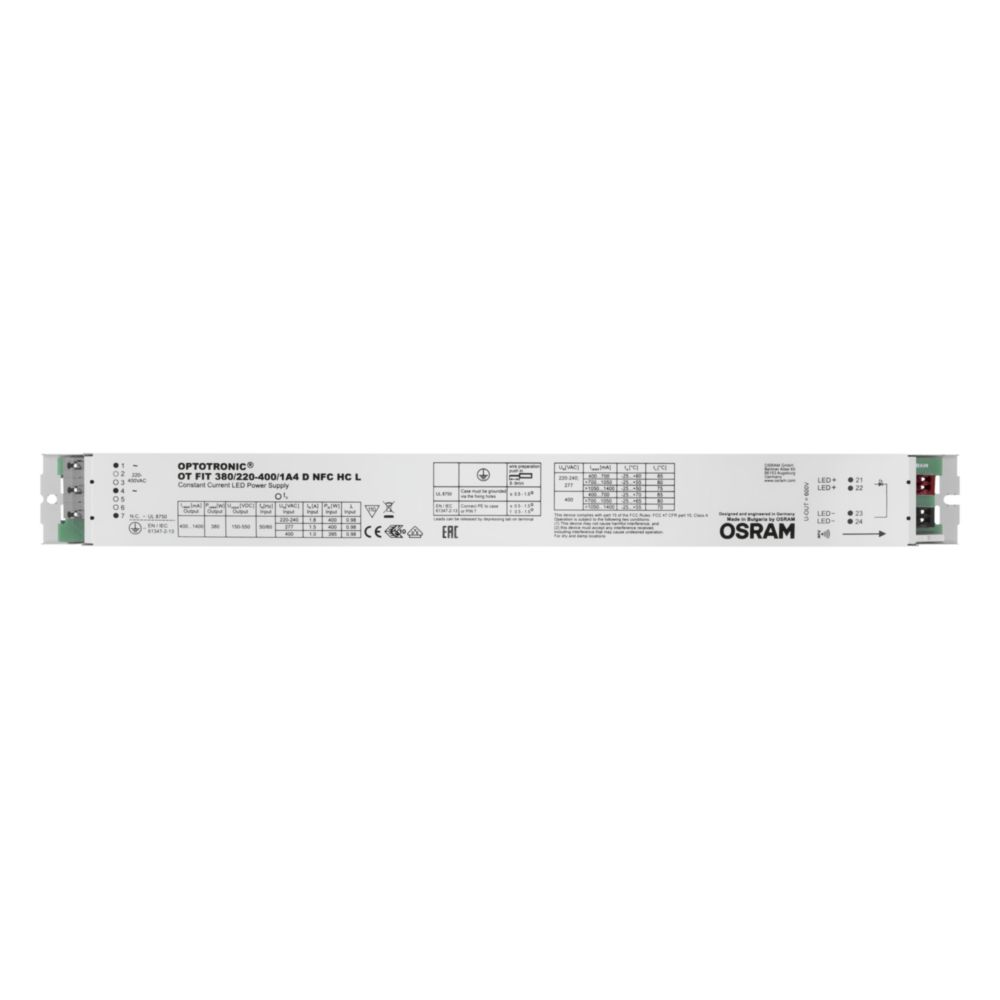

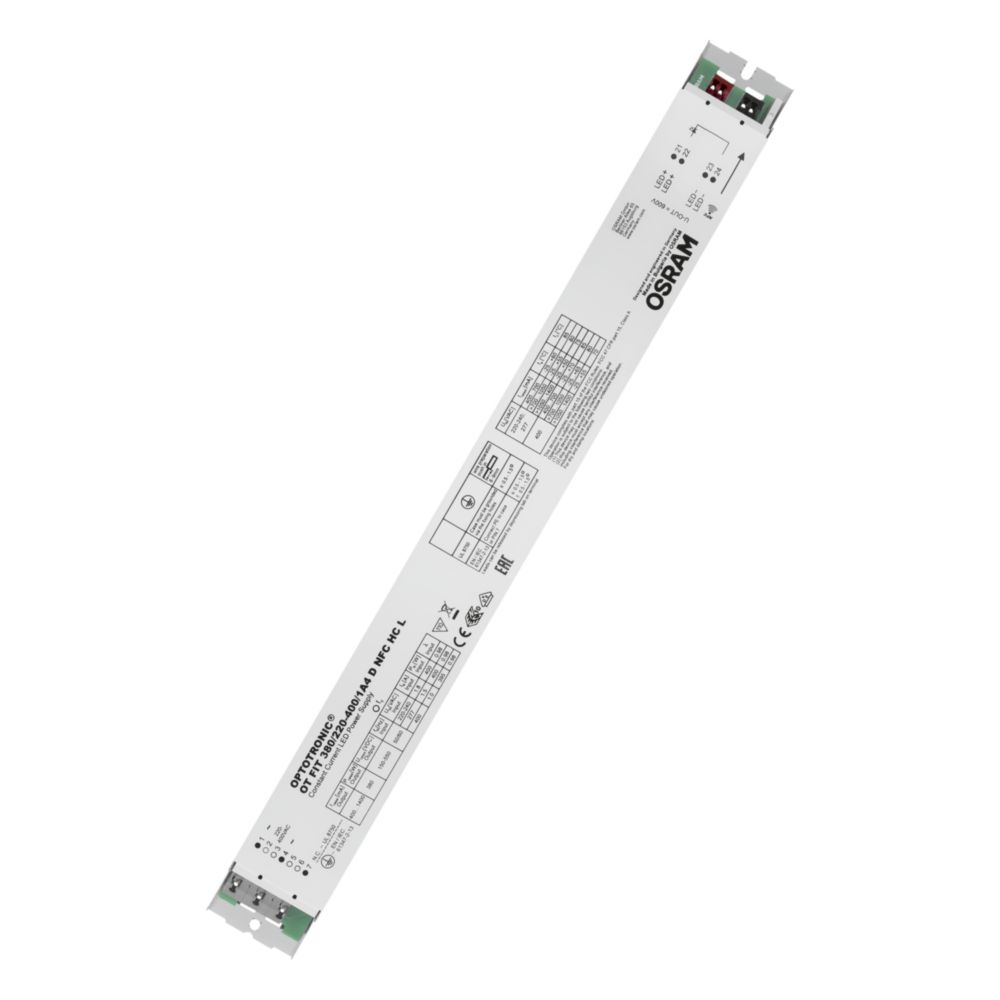

Osram LED-Driver OT FIT 380/220-400/1A4 D NFC HC L - 4062172063586
Inventronics Europe BV
Osram LED-Driver OT FIT 380/220-400/1A4 D NFC HC L - 4062172063586
Product number:
4062172063586
Shipping in 7 day(s)
€83.16
Prices incl. VAT plus shipping costs net €69.88
Product information "Osram LED-Driver OT FIT 380/220-400/1A4 D NFC HC L - 4062172063586"
Discover the high-quality OT FIT 380/220-400/1A4 D NFC HC L LED driver, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: OT FIT 380/220-400/1A4 D NFC HC L
- EAN: 4062172063586
- Insulation: Non isolated
- Input voltage AC: 198...440 V
- Input voltage DC: Not relevant
- Nominal output power: 140...380 W
- Rated output voltage: 150...550 V
- Rated output current: 400...1400
- Power factor [λ]: > 0.99
- Inrush current: ≤ 11.0 A, ≤ 19.0 A
- Max. Number of ECGs on 16 A (B) fuse: 13
- Maximum efficiency: up to 97
- Ripple (100 Hz): < 1
- Dimming function: Not relevant
- Corridor function: No
- Constant lumen function: Programmable
- DALI-2: No
- Programming interface: NFC
- Programming device: NFC reader
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 100000 / 50000
- Operating temperature [Tₐ] in °C: -25...+70
- Maximum housing temperature [Tᶜ] in °C: 85
- Protection class: I
- Protection class: IP20

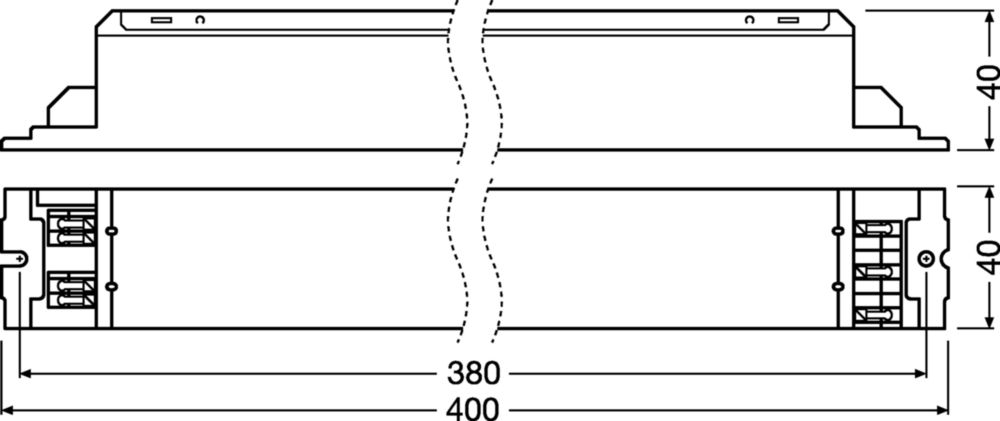

- Dimensions (L x W x H): 400 x 40 x 40 mm
- Certificates & approvals: CE, VDE-ENEC, VDE-EMC, EAC, CCC, BIS, cURus
The OT FIT 380/220-400/1A4 D NFC HC L LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 97% and a low ripple of < 1%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the rated output currents using the NFC reader. With a service life of 100,000 / 50,000 hours and a robust design, the OT FIT 380/220-400/1A4 D NFC HC L is suitable for long-term use in a variety of environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4062172063586 |
|---|
