Osram LED-Driver OT FIT 35/220-240/350 D NFC L - 4052899990166
Osram LED-Driver OT FIT 35/220-240/350 D NFC L - 4052899990166
Immediately available
€22.35
Prices incl. VAT plus shipping costs net €18.78
Product information "Osram LED-Driver OT FIT 35/220-240/350 D NFC L - 4052899990166"
Constant current ECG for luminaire installation
The electronic ballast for LED modules OT FIT 35 / 220-240 / 350 D NFC L from OSRAM is suitable for installation in luminaires with protection class I and in emergency lighting systems in accordance with IEC 61347-213 / EN 60598-2-22. Ideal application areas include linear lighting solutions for offices, educational establishments, industrial buildings, storage areas and retail. The rated power is up to 35 watts.
Flexible current setting via NFC
By using NFC (Near Field Communication), a flexible, future-proof current setting is possible. The output current range is between 70 and 350 mA. In addition, the constant current LED driver has a high quality of light thanks to <1% output ripple current and a very high efficiency.
The LED driver meets the safety requirements due to overload, over temperature and hot plug protection. The lifetime is up to 100,000 h with a maximum housing temperature of 65 ° C and a maximum failure rate of 10%.
Downloads & Documents
Datenblatt-Osram-LED-Treiber-OT-FIT-35-220-240-350-D-NFC-L-4052899990166_1592176073_2
Instruction-manual-Osram-LED-Driver-OT-FIT-35-220-240-350-D-NFC-L-4052899990166_1592176067_3
Datasheet-Osram-LED-Driver-OT-FIT-35-220-240-350-D-NFC-L-4052899990166_1592176067_6
Declaration-of-Confirmity-Osram-LED-Driver-OT-FIT-35-220-240-350-D-NFC-L-4052899990166_1592176067_7
Bedienungsanleitung-Osram-LED-Treiber-OT-FIT-35-220-240-350-D-NFC-L-4052899990166_1592176067_8
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350 |
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 50000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |
Logistic data
| item category: | LED drivers |
|---|

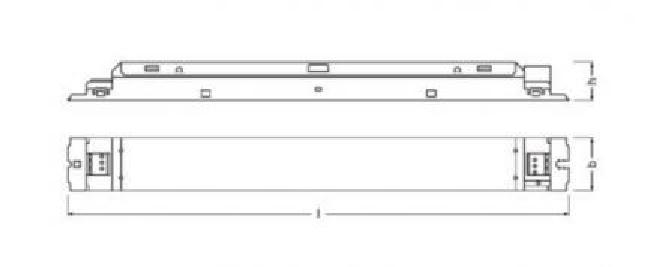

Dimensions & packaging
| EAN | 4052899990166 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 180 g |
