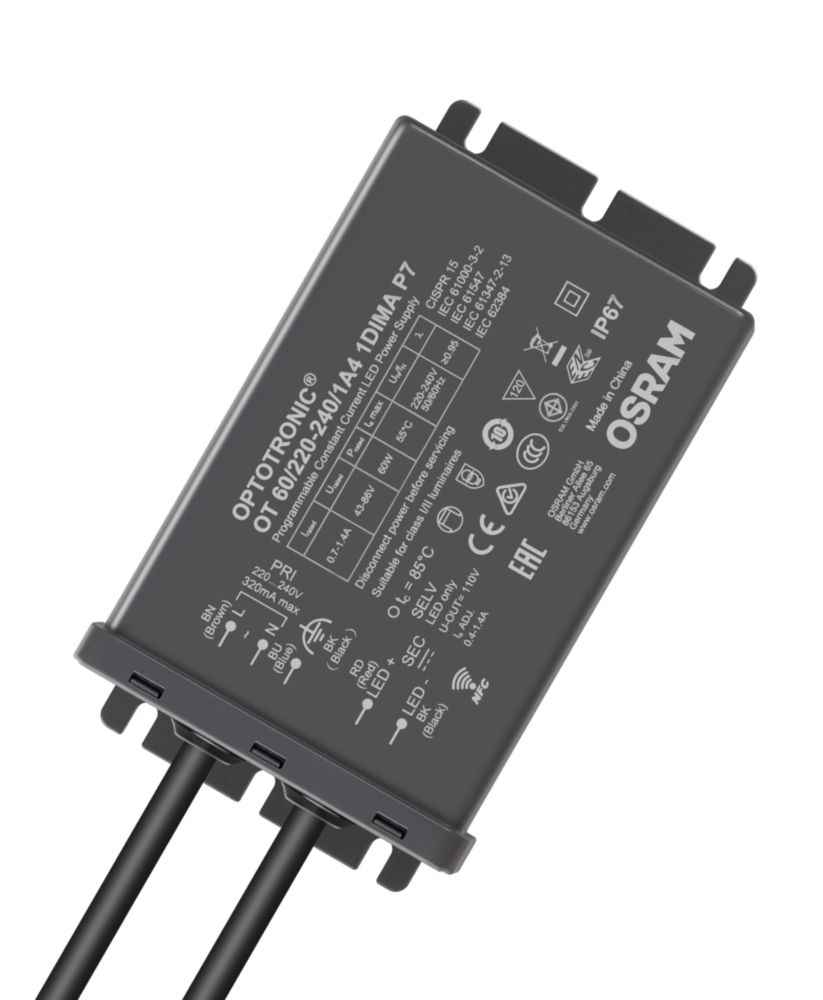

Osram LED-Driver OT 60/220-240/1A4 1DIMA P7 - 4052899495012
Inventronics Europe BV
Osram LED-Driver OT 60/220-240/1A4 1DIMA P7 - 4052899495012
Product number:
4052899495012
Shipping in 7 day(s)
€38.32
Prices incl. VAT plus shipping costs net €32.20
Product information "Osram LED-Driver OT 60/220-240/1A4 1DIMA P7 - 4052899495012"
Discover the high-quality LED driver OT 60/220-240/1A4 1DIMA P7, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: OT 60/220-240/1A4 1DIMA P7
- EAN: 4052899495012
- Insulation: Double
- Input voltage AC: 198...264 V
- Input voltage DC: Not relevant
- Nominal output power: 60 W
- Nominal output voltage: 43...86 V
- Rated output current: 700...1400
- Power factor [λ]: > 0.97
- Inrush current: 52.0 A
- Max. Number of ECGs on 16 A (B) Fuse: 11
- Maximum efficiency: 88
- Ripple (100 Hz): < 5
- Dimming function: AstroDIM
- Corridor function: No
- Constant lumen function: Yes
- DALI-2: No
- Programming interface: n/a
- Programming device: NFC
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 50000 / 100000
- Operating temperature [Tₐ] in °C: -40...+55
- Maximum housing temperature [Tᶜ] in °C: 85
- Protection class: I, II
- Protection class: IP67
- Dimensions (L x W x H): 138 x 82.4 x 38 mm
- Certificates & approvals: CCC, CE, ENEC
The OT 60/220-240/1A4 1DIMA P7 LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 88% and a low ripple of < 5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using NFC. With a service life of 50000 / 100000 hours and a robust design, the OT 60/220-240/1A4 1DIMA P7 is suitable for long-term use in different environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4052899495012 |
|---|
