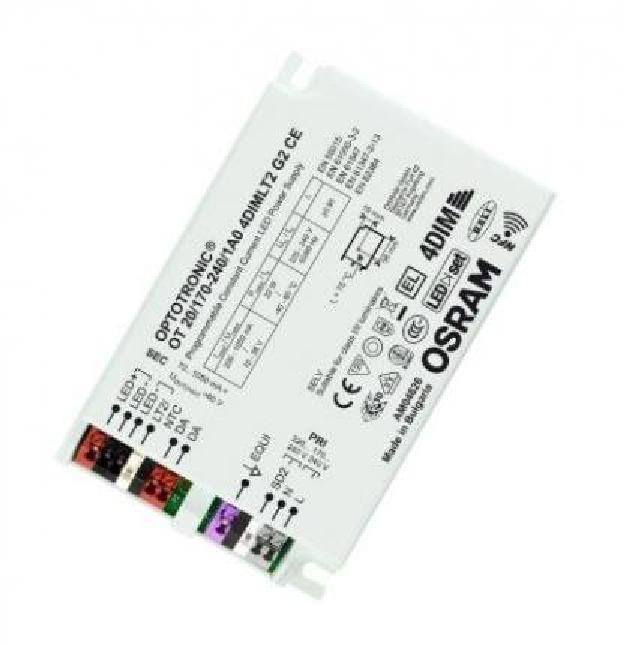

Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928

Product number: 4052899981928
Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928
Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928
Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928
Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928
Inventronics Europe BV

Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928

Product number: 4052899981928

Immediately available

That's why you should buy this product now
  • High Quality at a low price
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items

€61.55


Content: 1 Stück

Prices incl. VAT plus shipping costs net €51.72

Product information "Osram LED-Driver OT 20/170-240/1A0 4DIMLT2 G2 CE - 4052899981928"

Outdoor LED ECG with 4DIM functionality

The constant current driver for LED module OT 20/170-240/1A0 4DIMLT2 G2 CE from the Optotronic outdoor series from Osram is suitable for luminaires of protection class I and II. The ideal application areas are outdoors - for example for example in luminaires with IP> 54 in street and city lighting or industrial lighting. Its nominal output is 20 watts. The output current can be adjusted between 70 and 1050 mA via LEDset2.

The 4DIM functionality of the electronic ballast allows dimming by different means : via StepDIM, isolated DALI interface for bidirectional telemanagement systems, MainsDIM for dimming by means of reduction of the mains voltage amplitude and AstroDIM for autonomous dimming with five different levels.

Simple wireless luminaire programming via NFC

Thanks to its broad operating temperature range of -40 to + 60 °C, the Osram LED ECG can be used particularly flexibly. Luminaire programming is simple, fast and wireless via NFC. Additionally, the LED driver has a high surge protection up to 6kV and a protection by double isolation between mains input and LED output.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
number of channels: 1
output current: 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
Casing
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
material: plastic
mounting: Installation
protection class: I/II
environment temperature from: -40 °C
environment temperature to: 60 °C
Photometric data
dimmable: yes
color: white
interface: stepDIM
Logistic data
item category: LED drivers

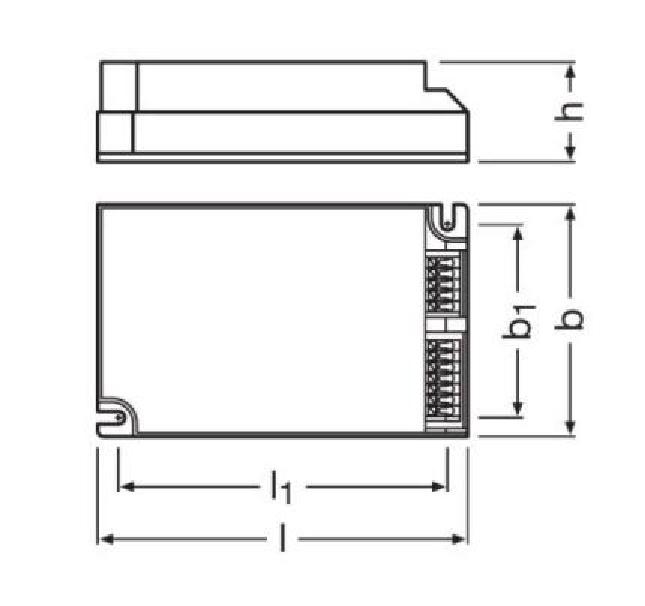

Dimensions & packaging
EAN 4052899981928
Length 123 mm
Width 79 mm
Height 33 mm
Weight 210 g
