Osram LED-Driver OT 100/ 220-240/1A4 2DIM P7 - 4062172060677
Inventronics Europe BV
Osram LED-Driver OT 100/ 220-240/1A4 2DIM P7 - 4062172060677
Product number:
4062172060677
Shipping in 7 day(s)
€49.50
Prices incl. VAT plus shipping costs net €41.60
Product information "Osram LED-Driver OT 100/ 220-240/1A4 2DIM P7 - 4062172060677"

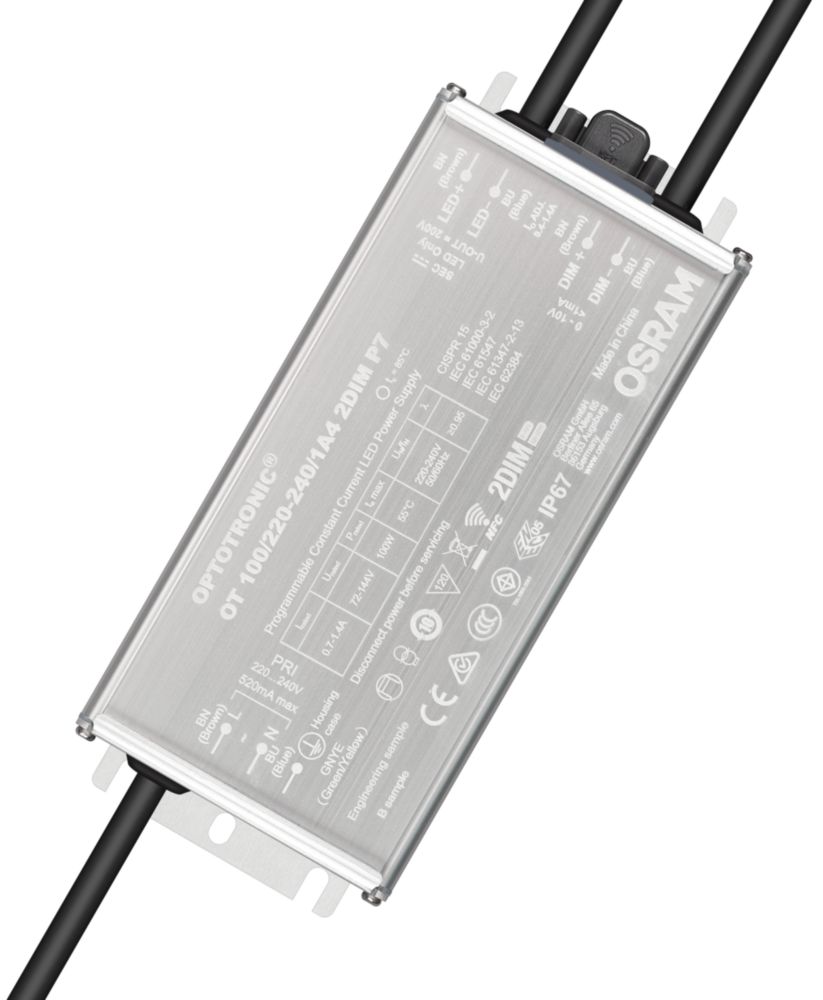

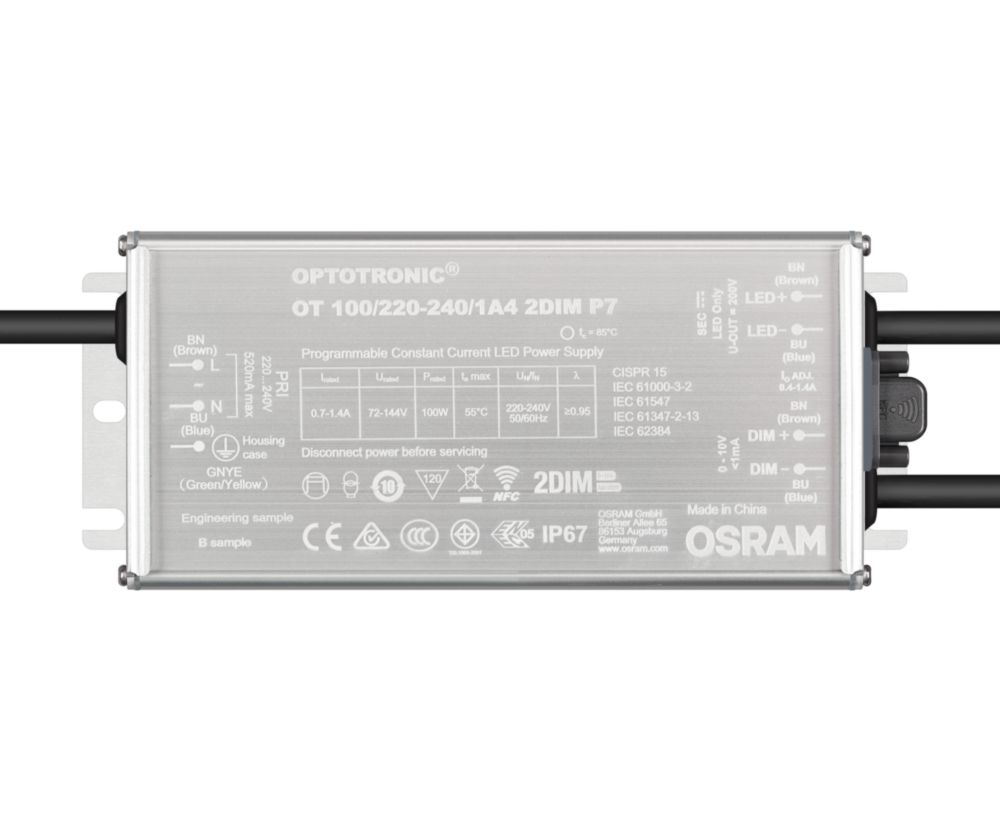

Discover the high-quality OT 100/ 220-240/1A4 2DIM P7 LED driver, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: OT 100/ 220-240/1A4 2DIM P7
- EAN: 4062172060677
- Insulation: Double
- Input voltage AC: 198...264 V
- Input voltage DC: Not relevant
- Nominal output power: 50...100 W
- Rated output voltage: 72...144 V
- Rated output current: 700...1400
- Power factor [λ]: ≥ 0.95
- Inrush current: 62.0 A
- Max. Number of ECGs at 16 A (B) Fuse: 13
- Maximum efficiency: 91
- Ripple (100 Hz): < ±5
- Dimming function: AstroDIM, 1...10 V, Pulse Width Modulation
- Corridor function: No
- Constant lumen function: Yes
- DALI-2: No
- Programming interface: NFC
- Programming device: NFC
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 50000 / 100000
- Operating temperature [Tₐ] in °C: -40...+55
- Maximum housing temperature [Tᶜ] in °C: 85
- Protection class: I
- Protection class: IP67

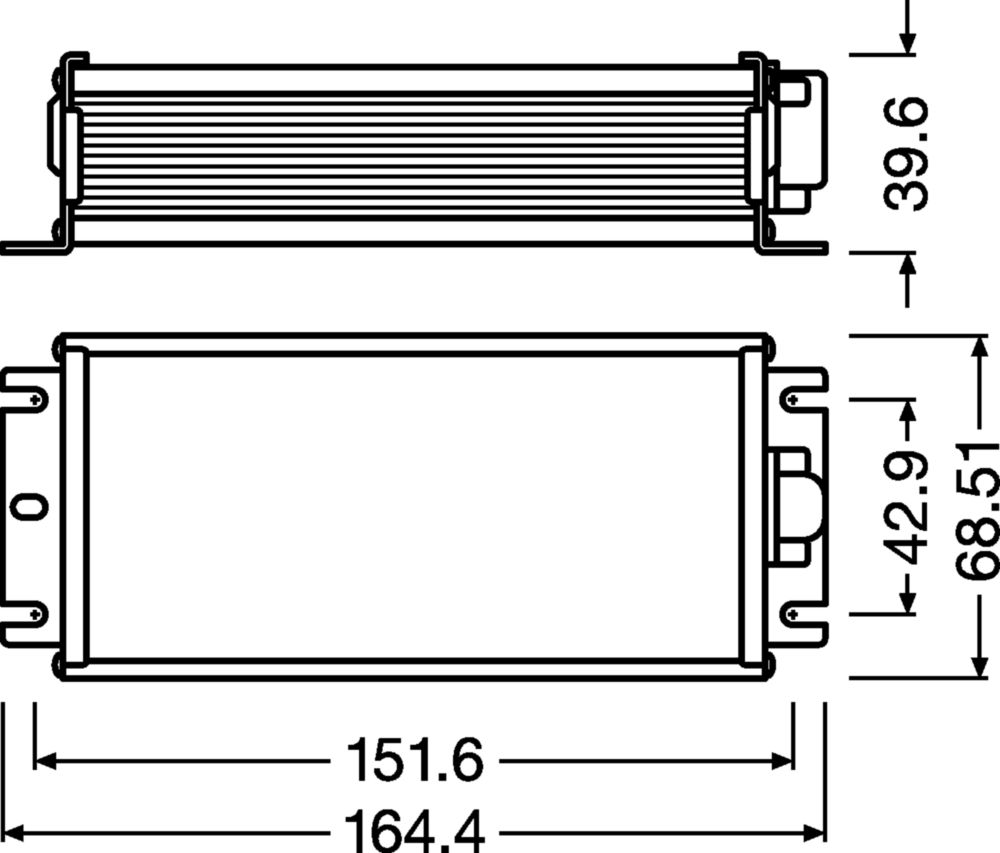

- Dimensions (L x W x H): 164.4 x 68.5 x 39.6 mm
- Certificates & approvals: CE, CCC, RCM, ENEC 05, TISI
The OT 100/ 220-240/1A4 2DIM P7 LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 91% and a low ripple of < ±5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the rated output currents using NFC. With a service life of 50000 / 100000 hours and a robust design, the OT 100/ 220-240/1A4 2DIM P7 is suitable for long-term use in different environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050, 1075, 1100, 1125, 1150, 1175, 1200, 1225, 1250, 1275, 1300, 1325, 1350, 1375, 1400 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4062172060677 |
|---|
