Osram LED-Driver IT FIT 11/220-240/500 CS I - 4062172199308

Inventronics Europe BV

Osram LED-Driver IT FIT 11/220-240/500 CS I - 4062172199308

Product number: 4062172199308

Immediately available

€8.59


Prices incl. VAT plus shipping costs net €7.22

Product information "Osram LED-Driver IT FIT 11/220-240/500 CS I - 4062172199308"

Discover the high-quality LED driver IT FIT 11/220-240/500 CS I, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.

  • Product name: IT FIT 11/220-240/500 CS I
  • EAN: 4062172199308
  • Insulation: SELV
  • Input voltage AC: 198...264 V
  • Input voltage DC: Not relevant
  • Nominal output power: 3.85...10.5 W
  • Nominal output voltage: 11...21 V
  • Rated output current: 350, 400, 450, 500
  • Power factor [λ]: 0.74C...0.95
  • Inrush current: < 10.0 A
  • Max. Number of ECGs on 16 A (B) fuse: 116
  • Maximum efficiency: 86
  • Ripple (100 Hz): < 5
  • Dimming function: Not relevant
  • Corridor function: No
  • Constant lumen function: No
  • DALI-2: No
  • Programming interface: n/a
  • Programming device: DIPswitch
  • Emergency mode: No
  • Suitable for emergency lighting: No
  • Service life: 50000
  • Operating temperature [Tₐ] in °C: -20...+50
  • Maximum housing temperature [Tᶜ] in °C: 75
  • Protection class: I, II
  • Protection class: IP20

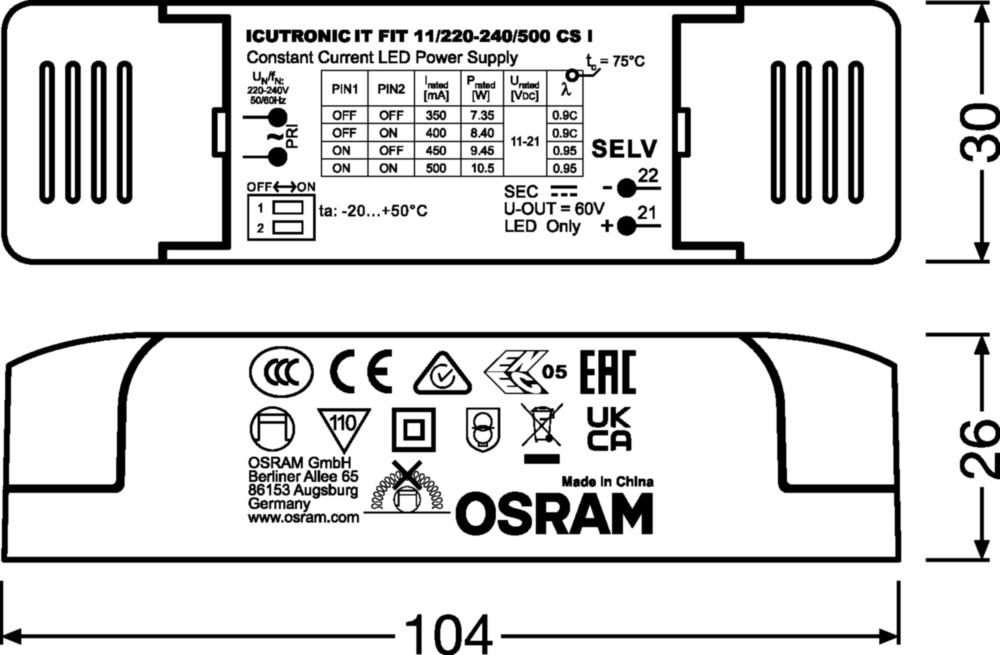

  • Dimensions (L x W x H): 104 x 30 x 26 mm
  • Certificates & approvals: ENEC 05, CCC, CE, RCM
The IT FIT 11/220-240/500 CS I LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 86% and a low ripple of < 5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using a DIP switch. With a service life of 50,000 hours and a robust design, the IT FIT 11/220-240/500 CS I is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.

s
Electrical data
number of channels: 1
output current: 350, 450, 500
operating mode: constant current
Dimensions & packaging
EAN 4062172199308
