Osram LED-Driver IT DALI 75/220-240/1A0 E - 4052899620278
Inventronics Europe BV

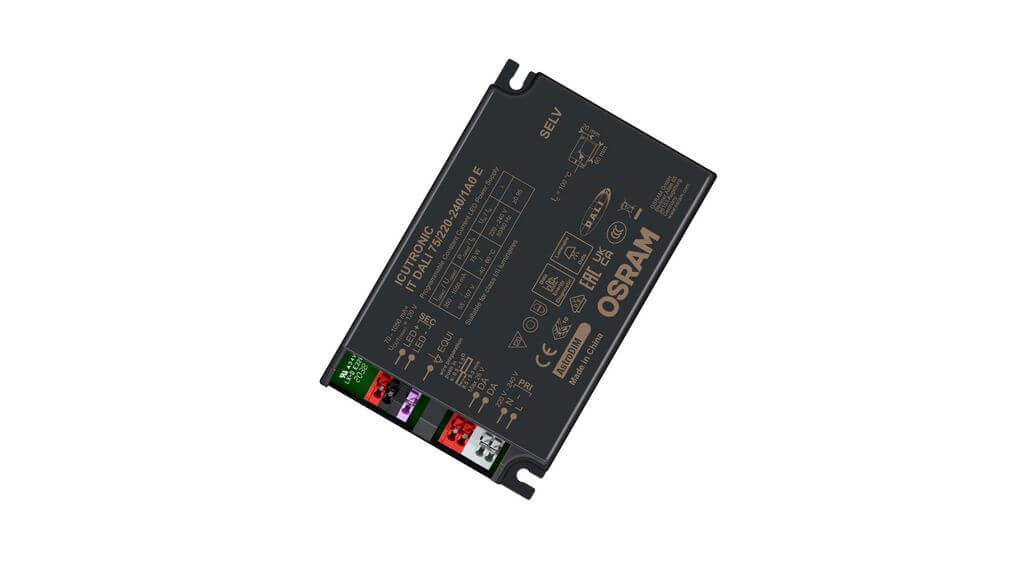

Osram LED-Driver IT DALI 75/220-240/1A0 E - 4052899620278
Product number:
4052899620278
Shipping in 7 day(s)
€38.44
Prices incl. VAT plus shipping costs net €32.30
Product information "Osram LED-Driver IT DALI 75/220-240/1A0 E - 4052899620278"
Discover the high-quality LED driver IT DALI 75/220-240/1A0 E, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: IT DALI 75/220-240/1A0 E
- EAN: 4052899620278
- Insulation: SELV
- Input voltage AC: 198...264 V
- Input voltage DC: Not relevant
- Nominal output power: 75 W
- Nominal output voltage: 55...107 V
- Rated output current: 350...1050
- Power factor [λ]: 0.82C...0.99
- Inrush current: 47.0 A
- Max. Number of ECGs on 16 A (B) Fuse: 13
- Maximum efficiency: 92
- Ripple (100 Hz): < ±5
- Dimming function: AstroDIM, DALI-2
- Corridor function: No
- Constant lumen function: Programmable
- DALI-2: Yes
- Programming interface: n/a
- Programming device: DALI
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 50000 / 100000
- Operating temperature [Tₐ] in °C: -40...+60
- Maximum housing temperature [Tᶜ] in °C: 100
- Protection class: I, II
- Protection class: IP20
- Dimensions (L x W x H): 123 x 79 x 33 mm
- Certificates & approvals: CCC, CE, EAC, RCM, DALI-2, UKCA, VDE, VDE-ENEC, ENEC
The IT DALI 75/220-240/1A0 E LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 92% and a low ripple of < ±5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using DALI. With a service life of 50000 / 100000 hours and a robust design, the IT DALI 75/220-240/1A0 E is suitable for long-term use in various environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4052899620278 |
|---|
