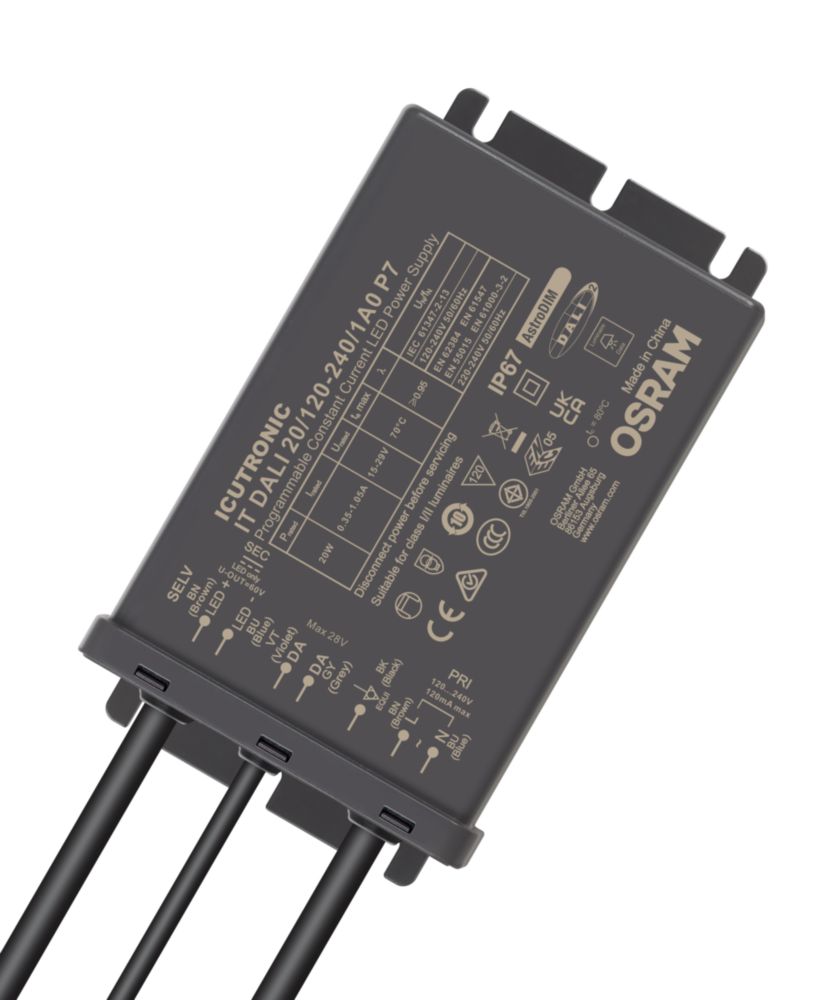

Osram LED-Driver IT DALI 20/120-240/1A0 P7 - 4052899620308
Inventronics Europe BV
Osram LED-Driver IT DALI 20/120-240/1A0 P7 - 4052899620308
Product number:
4052899620308
Shipping in 7 day(s)
€36.27
Prices incl. VAT plus shipping costs net €30.48
Product information "Osram LED-Driver IT DALI 20/120-240/1A0 P7 - 4052899620308"
Discover the high-quality LED driver IT DALI 20/120-240/1A0 P7, ideal for linear and wide-area applications. With its outstanding efficiency and long service life, this driver is the perfect choice for your lighting requirements.
- Product name: IT DALI 20/120-240/1A0 P7
- EAN: 4052899620308
- Insulation: SELV
- Input voltage AC: 120...264 V
- Input voltage DC: Not relevant
- Nominal output power: 20 W
- Nominal output voltage: 15...29 V
- Rated output current: 350...1050
- Power factor [λ]: 0.95
- Inrush current: 30.0 A
- Max. Number of ECGs on 16 A (B) Fuse: 22
- Maximum efficiency: 86
- Ripple (100 Hz): +/- 5
- Dimming function: DALI-2, AstroDIM
- Corridor function: No
- Constant lumen function: Programmable
- DALI-2: Yes
- Programming interface: n/a
- Programming device: DALI
- Emergency mode: No
- Suitable for emergency lighting: No
- Service life: 50000 / 100000
- Operating temperature [Tₐ] in °C: -40...+70
- Maximum housing temperature [Tᶜ] in °C: 80
- Protection class: I, II
- Protection class: IP67
- Dimensions (L x W x H): 138 x 82.5 x 38 mm
- Certificates & approvals: CCC, CE, TISI, RCM, ENEC, UKCA, DALI-2, IP67
The IT DALI 20/120-240/1A0 P7 LED driver offers you a reliable and efficient solution for your lighting projects. Thanks to its design, it can be used flexibly. With a maximum efficiency of up to 86% and a low ripple of +/- 5%, this driver ensures stable and uniform lighting.
The driver can be easily customised to your specific requirements thanks to the simple setting of the nominal output currents using DALI. With a service life of 50000 / 100000 hours and a robust design, the IT DALI 20/120-240/1A0 P7 is suitable for long-term use in different environments.
Get this versatile and powerful LED driver and benefit from its outstanding features and certifications that guarantee high quality and safety.
Downloads & Documents
s
Electrical data
| number of channels: | 1 |
|---|---|
| output current: | 350, 375, 400, 425, 450, 475, 500, 525, 550, 575, 600, 625, 650, 675, 700, 725, 750, 775, 800, 825, 850, 875, 900, 925, 950, 975, 1000, 1025, 1050 |
| operating mode: | constant current |
Dimensions & packaging
| EAN | 4052899620308 |
|---|
