for Integration in systems with central control units
sensor for motion, light, temperature, relative humidity and air pressure

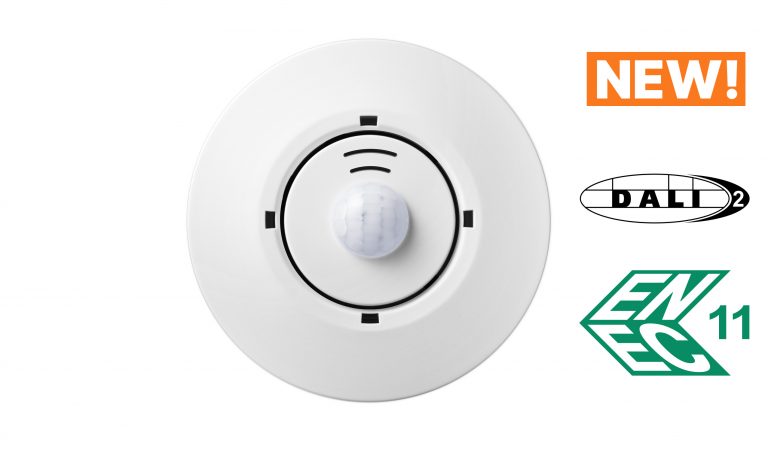

Compact sensor module for DALI-2 systems with motion detection (PIR), light intensity, temperature, relative humidity and air pressure measurement. The module gathers measurements for the building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.

DALI-2 CS Integration THP is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). The alignment of the sensor head is very simple using the turning and swivel head. Available housing colours are pure white RAL 9010, traffic white RAL 9016 (-W16) or black (-B).
Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.
