Lunatone sensor DALI-2 CS Integration THP LE – 86457786-INT-LE-W16
Lunatone sensor DALI-2 CS Integration THP LE – 86457786-INT-LE-W16
Shipping in 14 day(s)
€114.24
Prices incl. VAT plus shipping costs net €96.00
Product information "Lunatone sensor DALI-2 CS Integration THP LE – 86457786-INT-LE-W16"
DALI-2 CS Integration THP LE White, constant light control, temperature, humidity, air pressure, for Integration with central control units, white, luminaire installation
DALI-2 CS Integration THP LE
for Integration in systems with central control units
sensor for motion, light, temperature, relative humidity & air pressure

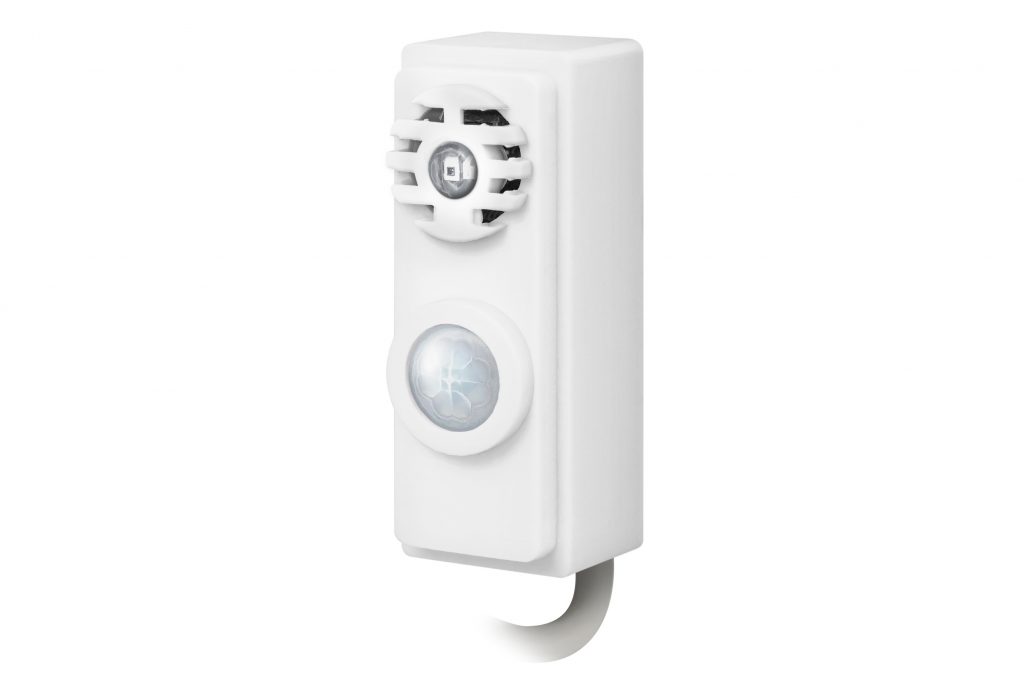

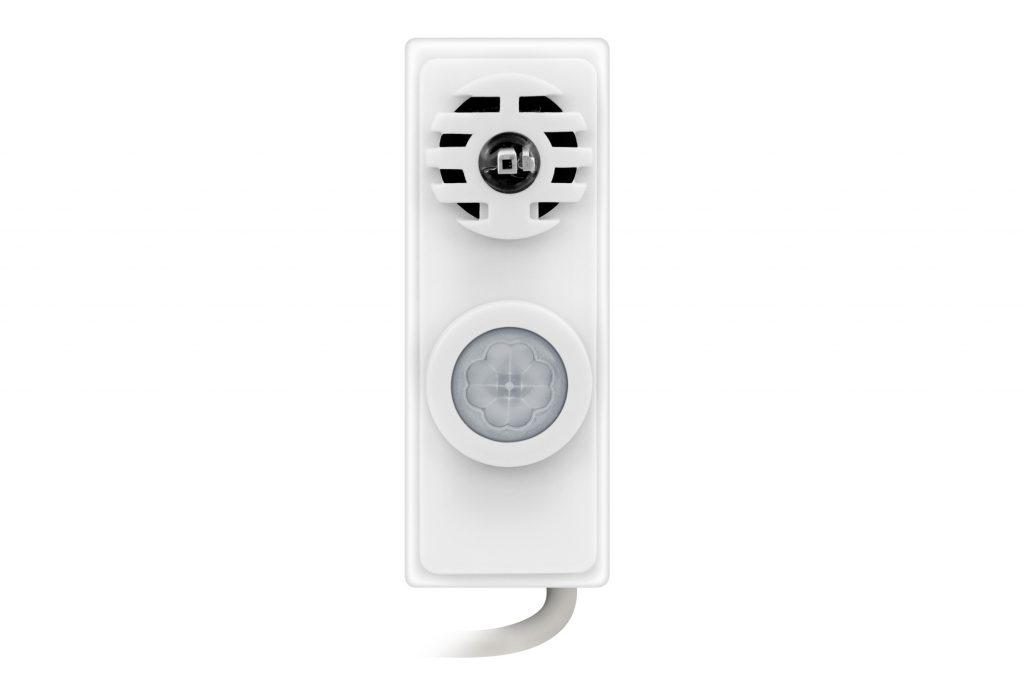

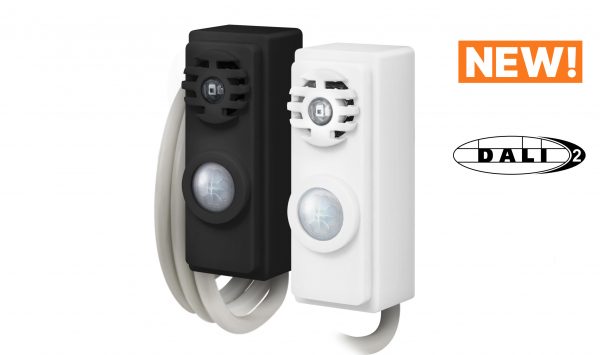

Compact sensor module for DALI-2 systems with motion detection (PIR), light intensity, temperature, relative humidity and air pressure measurement. The module gathers measurements for a building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.
DALI-2 CS Integration THP-AQ LE for installation in luminaires.
Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.
Downloads & Documents
Electrical data
| conformity: | CE |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| protection type: | IP20 |
| material: | plastic |
| mounting: | mounting holes |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| sensor: | yes |
|---|---|
| color: | white |
| interface: | DALI-2 |
| sensor type: | passive infrared |
| solar panel: | no |
Dimensions & packaging
| EAN | 9010342013546 |
|---|---|
| Length | 98 mm |
| Width | 98 mm |
| Height | 18 mm |
| Weight | 10 g |
