Lunatone sensor DALI-2 CS Integration, RAL9010 pure white, surface – 86458670-INT-O-AP
Lunatone sensor DALI-2 CS Integration, RAL9010 pure white, surface – 86458670-INT-O-AP
Shipping in 5 day(s)
€79.97
Prices incl. VAT plus shipping costs net €67.20
Product information "Lunatone sensor DALI-2 CS Integration, RAL9010 pure white, surface – 86458670-INT-O-AP"
DALI-2 presence sensor 2.5m (office), constant light control, for Integration with central control units, RAL9010, for surface mounting (with backbox)
DALI-2 CS Integration
for Integration in systems with central control units
Compact sensor module with motion detection (PIR) and light intensity measurement for DALI-2 systems. The module gathers measurements for the building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.

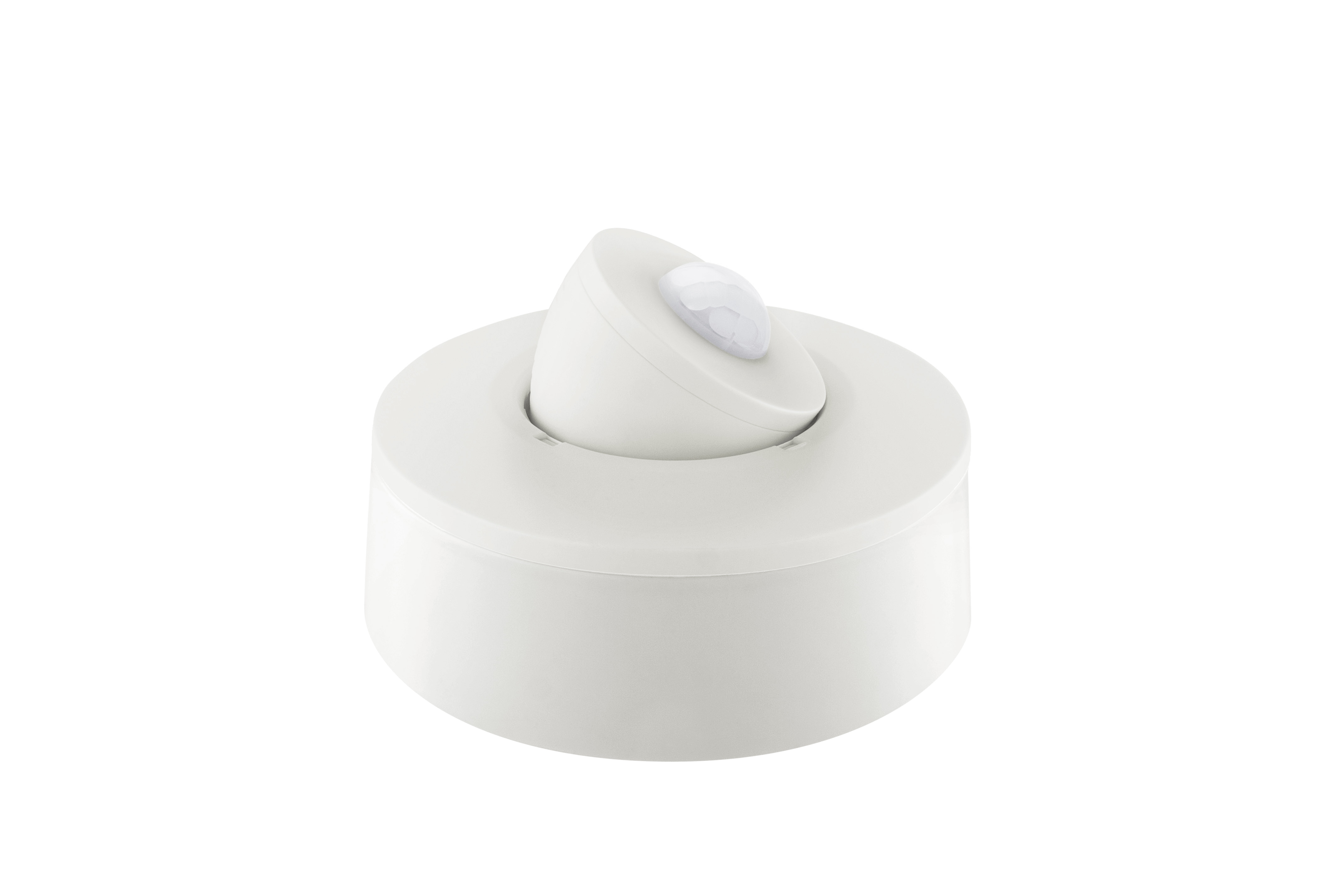

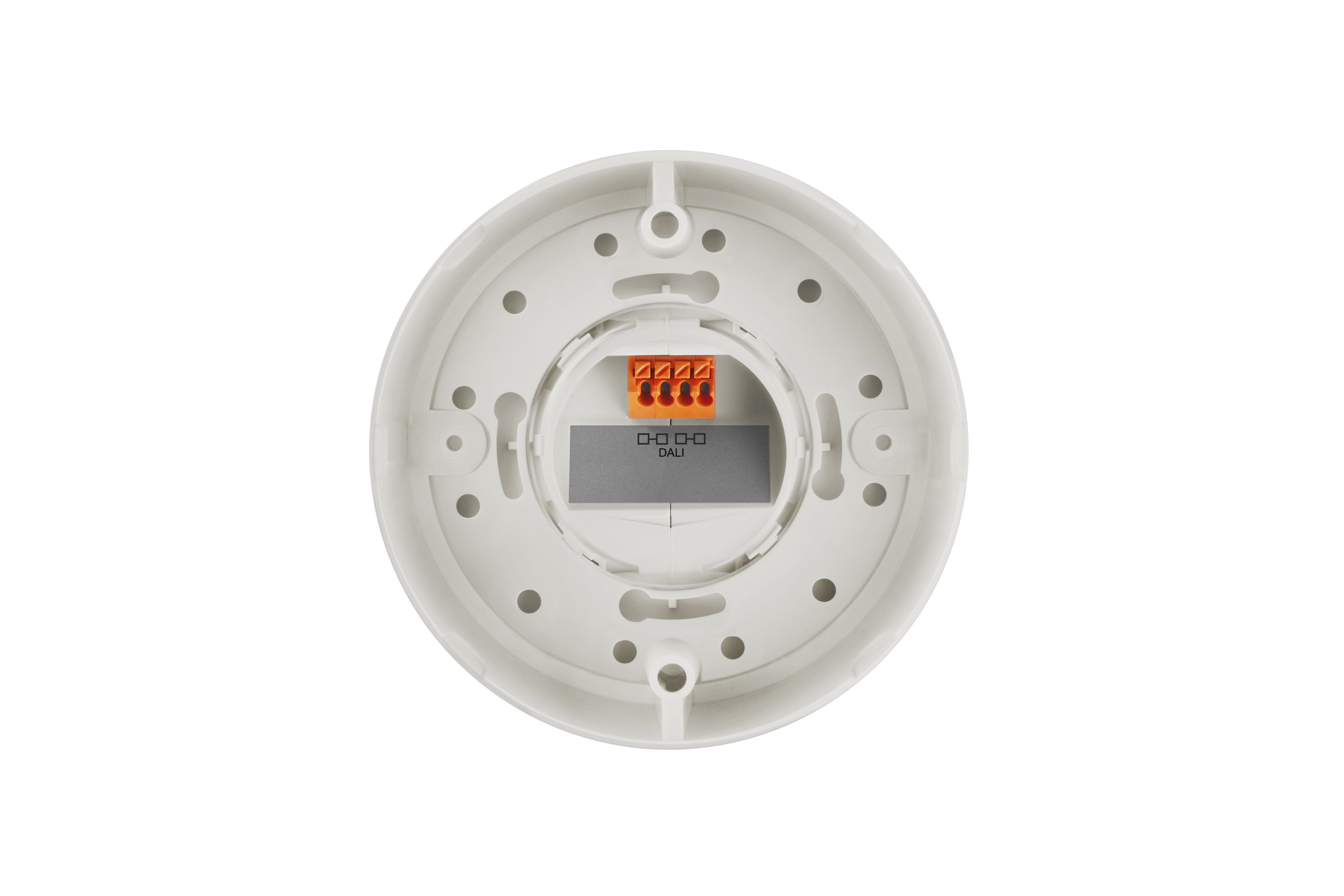

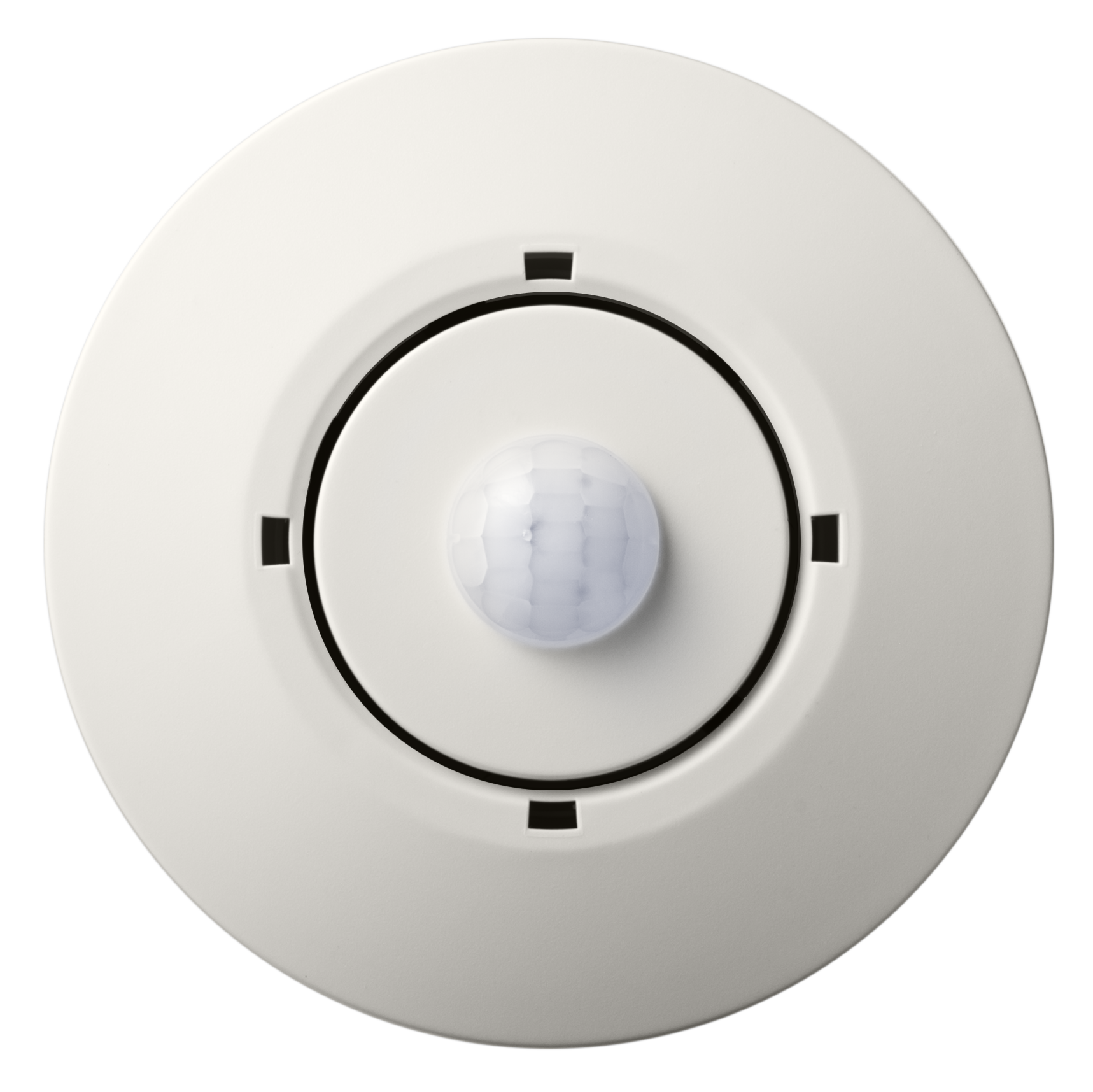

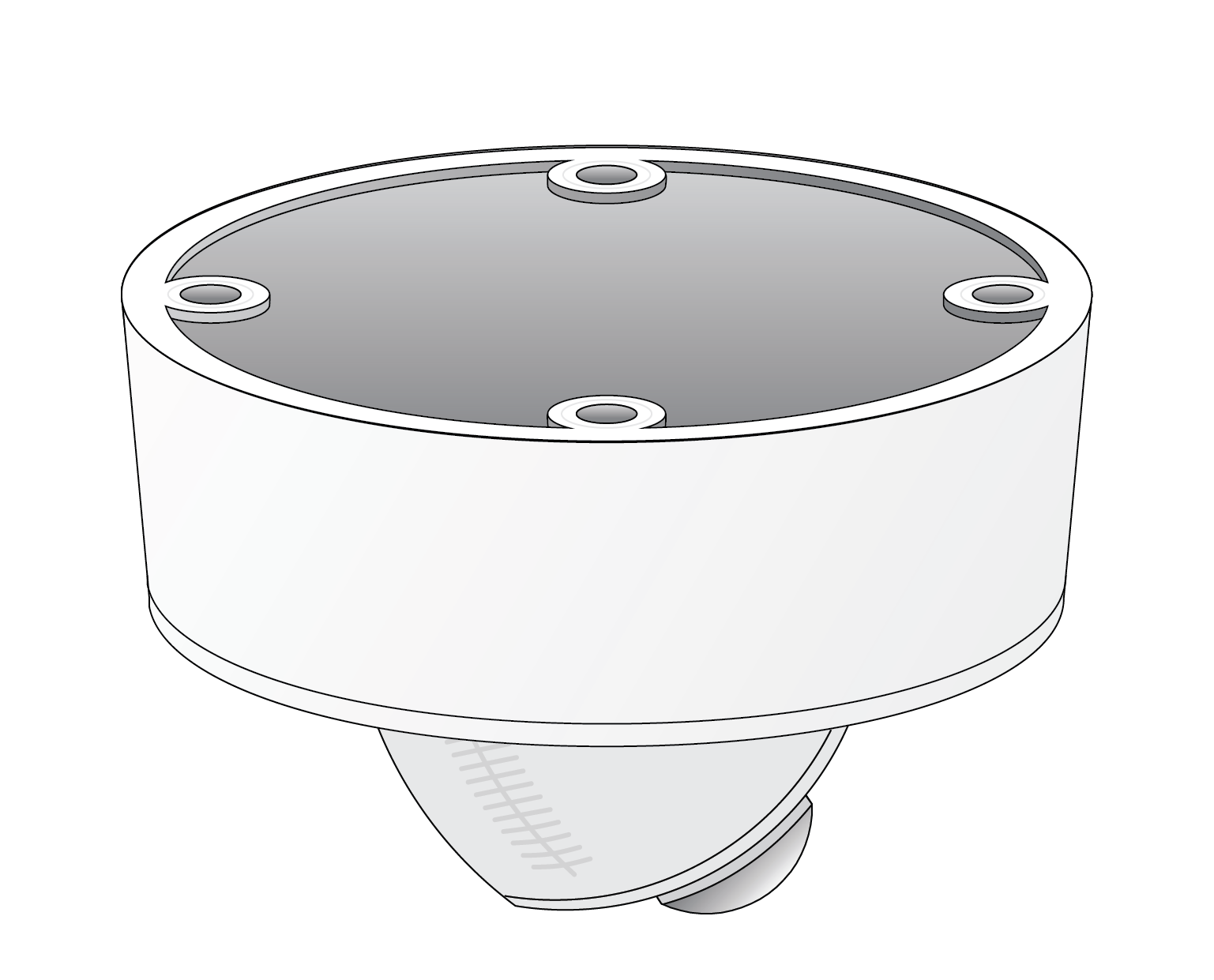

DALI-2 CS is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). The alignment of the sensor head is very simple using the turning and swivel head. Available housing colours are pure white RAL 9010, traffic white RAL 9016 (-W16) or black (-B).
Factory setting: On delivery all instance events are active. Usage with a DALI-2 CS is possible without further configuration by assigning the devices to the DALI-2 CS Master.
Electrical data
| conformity: | CE |
|---|
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | round |
| protection type: | IP20 |
| material: | plastic |
| mounting: | surface-mounted |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 70 °C |
Photometric data
| sensor: | yes |
|---|---|
| color: | white |
| sensor type: | passive infrared |
| solar panel: | no |
Dimensions & packaging
| EAN | 9010342013546 |
|---|---|
| Length | 98 mm |
| Width | 98 mm |
| Height | 18 mm |
| Weight | 67 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
