Lunatone rotary knob basis 86459822-RGBW
Product information "Lunatone rotary knob basis 86459822-RGBW"
Rotary knob for switching, dimming and regulating color and white component in DALI systems - Item number: 86459822-RGBW.
DALI ROT
DALI ROT is a rotary knob basis to control the light level of DALI luminaires. Versions for Tunable White or RGB-capable luminaires are also available. The device was developed to fit the rotary covers and knobs of most manufacturers and to enable their integration in the DALI system.
Downloads & Documents
Electrical data
| conformity: | CE |
|---|---|
| terminal cross section: | 1,5 mm² |
Casing
| form type: | square |
|---|---|
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature from: | -20 °C |
| environment temperature to: | 75 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | black |
| interface: | DALI |
Logistic data
| country of origin: | Austria |
|---|

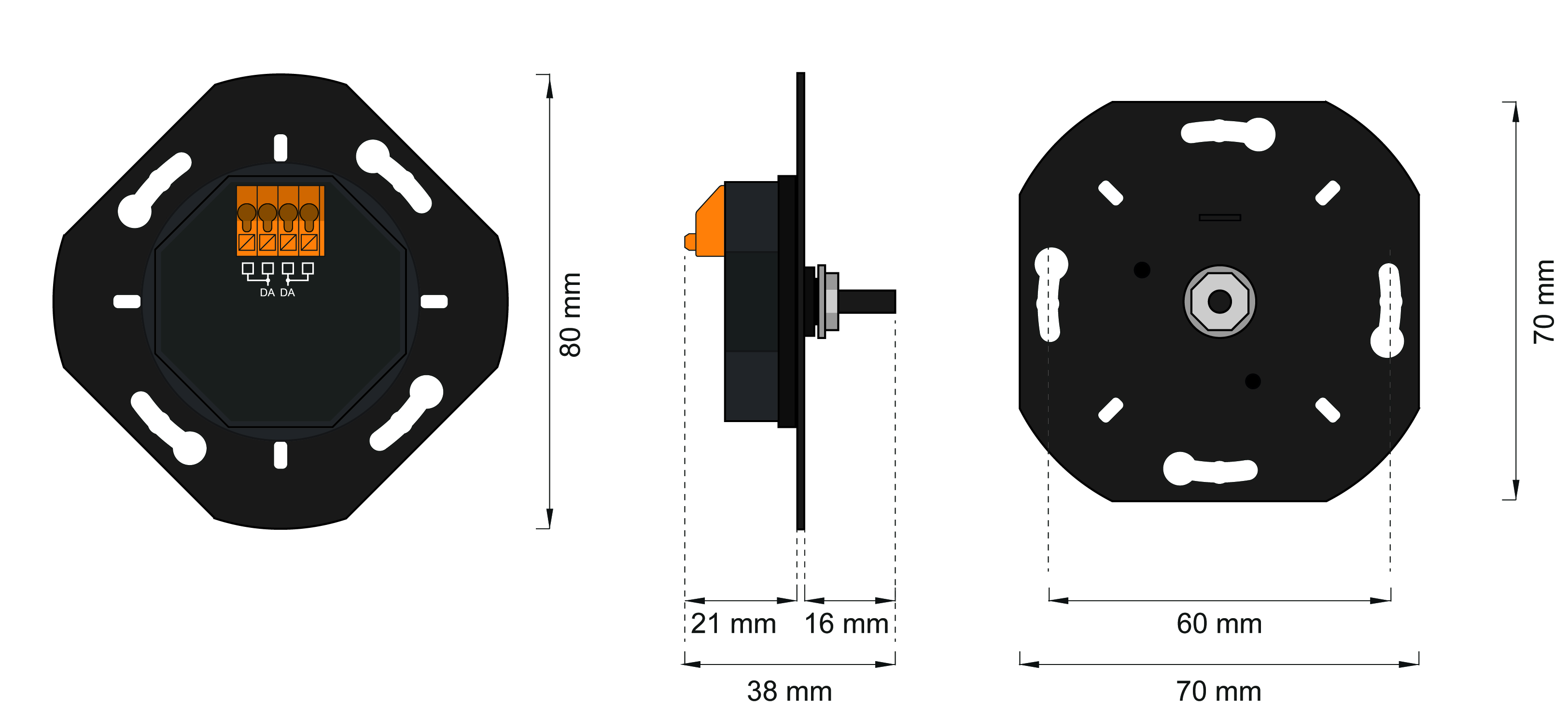

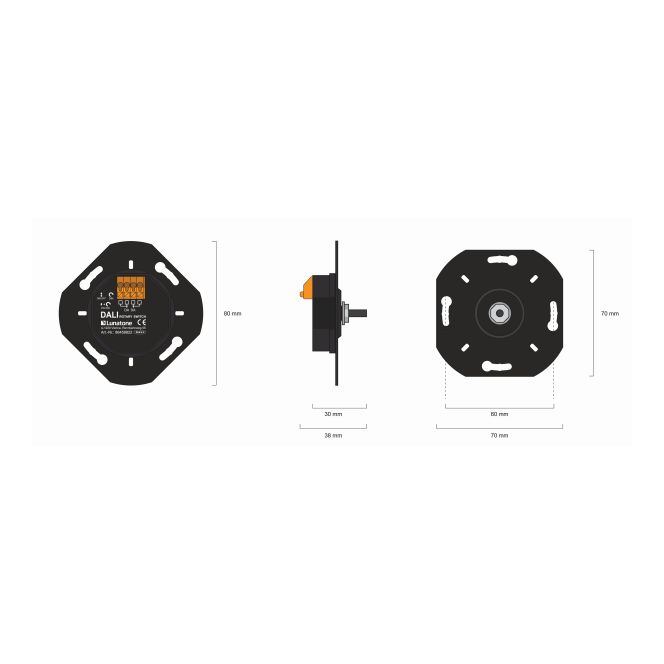

Dimensions & packaging
| Length | 70 mm |
|---|---|
| Width | 70 mm |
| Height | 60 mm |
| Weight | 61 g |
