Lunatone Lighting Management LED Dimmer DALI 3Ch LED Dimmer CV 4A

Product number: 86458911-700
Lunatone Industrielle Elektronik GmbH

Lunatone Lighting Management LED Dimmer DALI 3Ch LED Dimmer CV 4A

Product number: 86458911-700

Shipping in 14 day(s)

DALI LED dimmer for light regulationWith the aid of the DALI LED dimmer DALI CW-WW from Lunatone , tunable white luminaires can be controlled by the DALI MC / Switch / Touchpanel. It is suitable for constant current LED modules with 700 mA and has a high efficiency. Mounting is done by ceiling inst ... Read more

€74.92

Product information "Lunatone Lighting Management LED Dimmer DALI 3Ch LED Dimmer CV 4A"

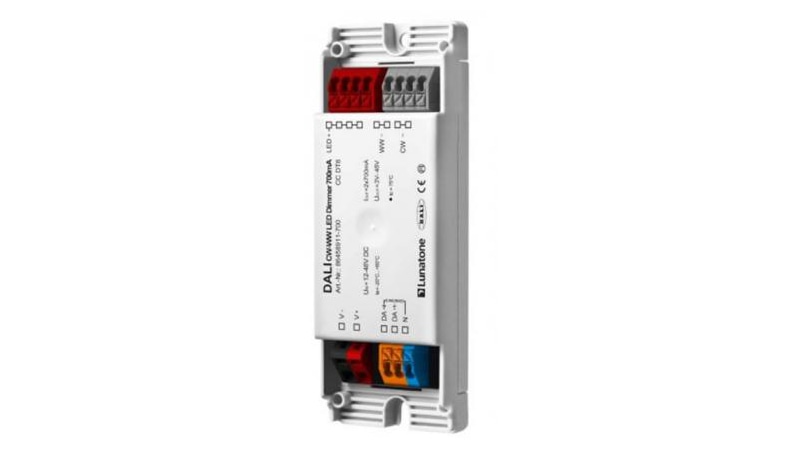

DALI LED dimmer for light regulation

With the aid of the DALI LED dimmer DALI CW-WW from Lunatone , tunable white luminaires can be controlled by the DALI MC / Switch / Touchpanel. It is suitable for constant current LED modules with 700 mA and has a high efficiency. Mounting is done by ceiling installation.

The dimming range is between 0.1% -100%. In addition, the dimmer has an adjustable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12 V to 48 V DC ; the output voltage up to 45 V DC.

DT8 CW-WW / Balance & Dim, SwitchDIM2

The operating mode DT8 has one DALI address for the independent control of light level and colour temperature (DALI DT8, Colour Type Tc). In Balance & Dim operating mode, the light is controlled via 2 DALI addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature). The operating mode Dim2Warm has one DALI address for simultaneous adjustment of light level and colour temperature. There are also 2 switch inputs for level and color temperature control without DALI (SwitchDim2).

The Lunatone LED dimmer has an integrated short-circuit protection. In standby mode, it has a low power consumption. Configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. The default settings are already very user-friendly.

Technical Data

Logistic Data

EAN (pcs): 9010342011023

Customs tariff number: 85423190

Country of Origin: Bulgaria

Electrical Data

Rated Voltage: 12-48V

Conformity: CE

Service life: 100000h

Technical lighting data

Dimmable: no

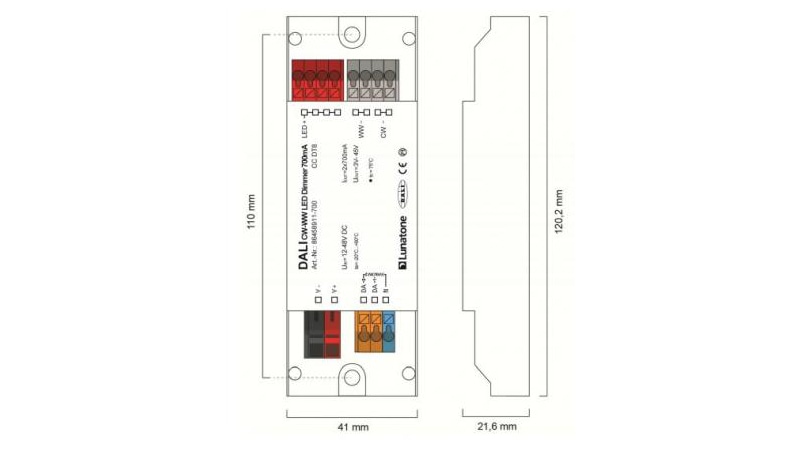

Dimensions

Width [mm]: 41mm

Height [mm]: 22mm

Length [mm]: 120mm

Housing

IP protection class: IP20

Ambient temperature (ta): -20..+60°C

Item number: 86458911-700
